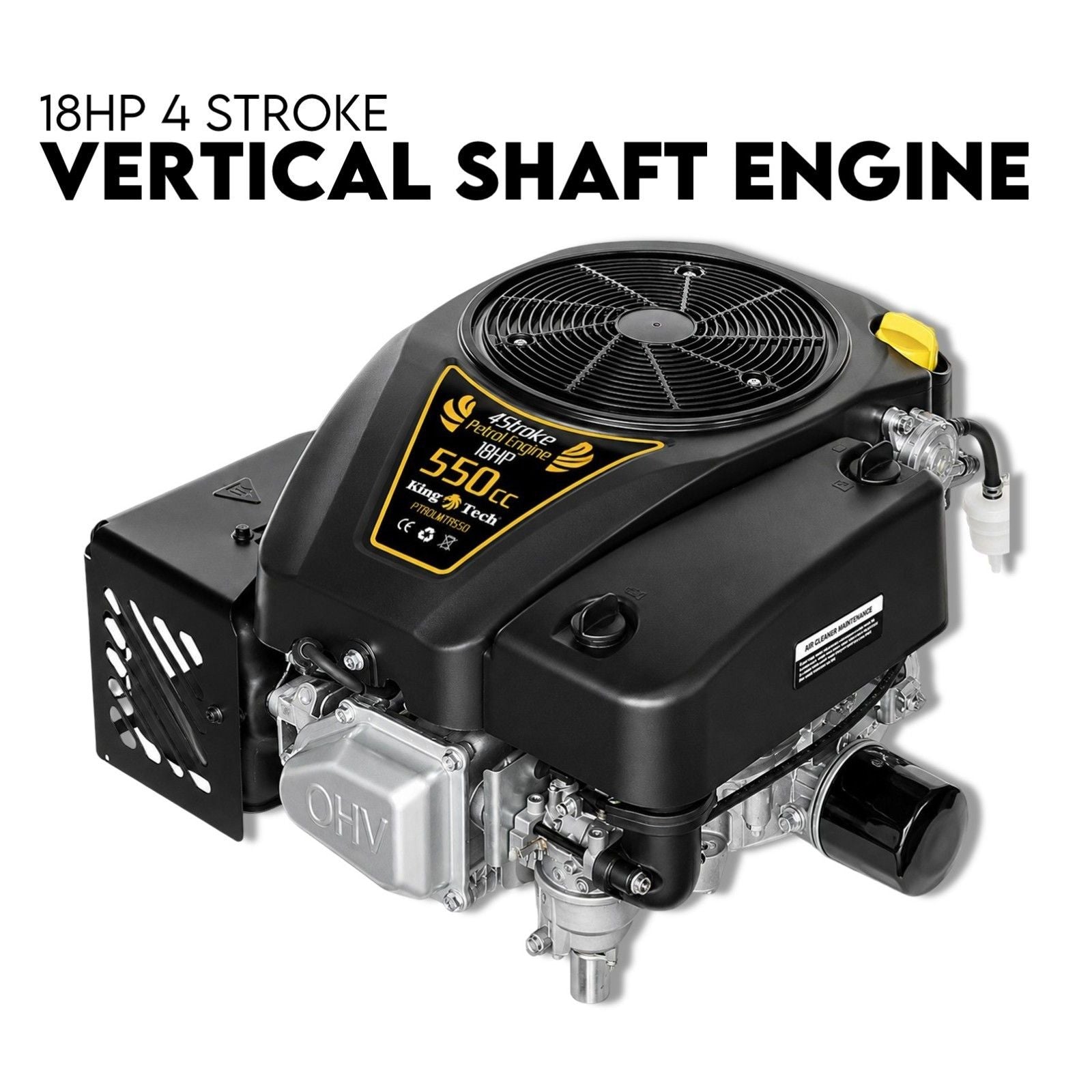

When your mower's heart gives out, drop in the KingTech 18HP Vertical Shaft Engine and bring it back to life. This 550cc 4-stroke OHV petrol motor packs serious grunt with smooth, dependable power that gets the job done every time. Built for ride-on mowers, this motor slots in where most Briggs and Stratton or Honda mounts sit - no fuss, just fit and fire. Designed for Aussie yards and conditions, it's got the torque to cut thick grass and the reliability to run season after season. If you want a straight-talking upgrade that just works, KingTech's got your back.
Key Features
- 18 Horsepower output delivers strong, steady performance for ride-on mowers.

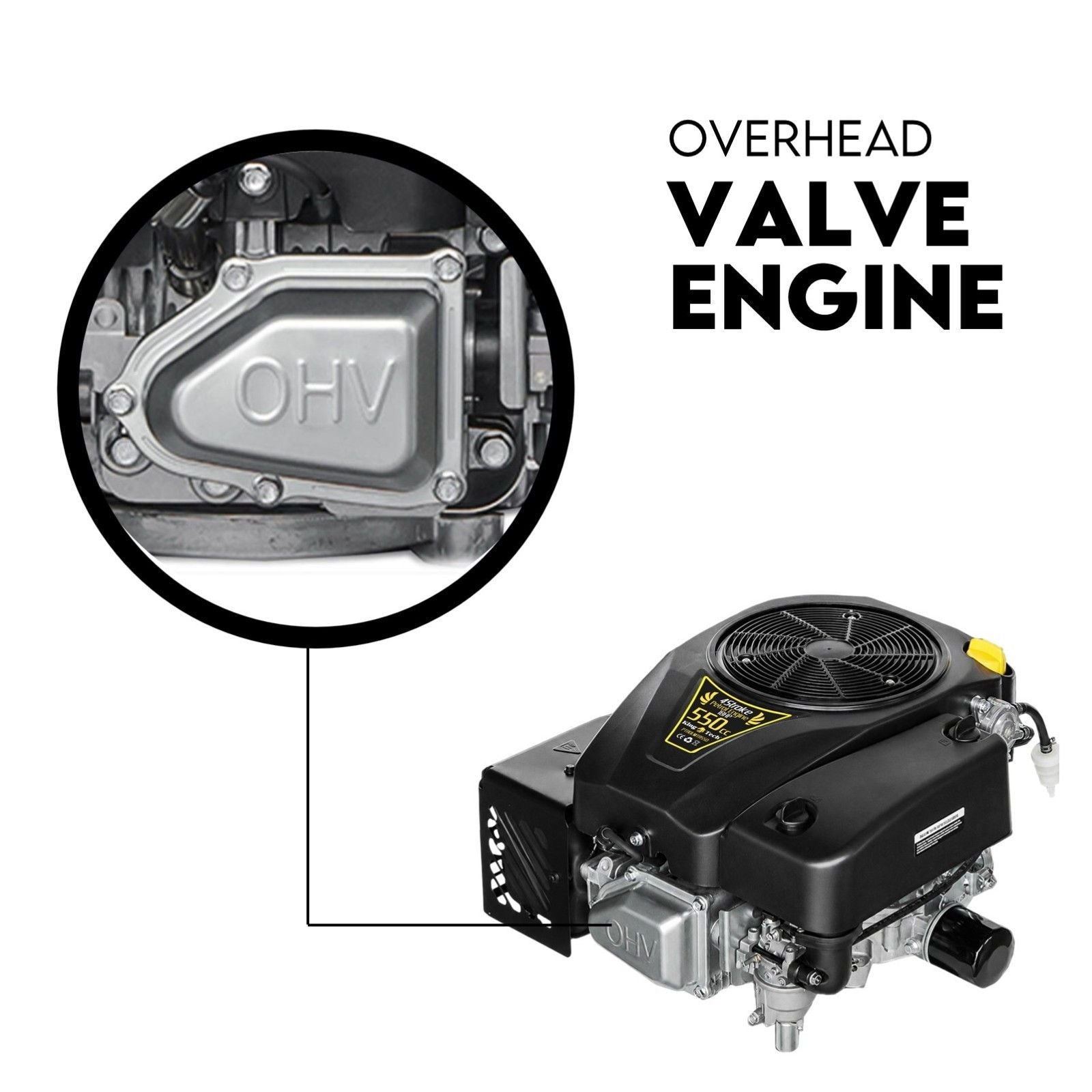

- 550 cc 4-stroke OHV engine for efficient combustion and low fuel burn.
- Vertical shaft design ideal for mower decks and garden tractors.

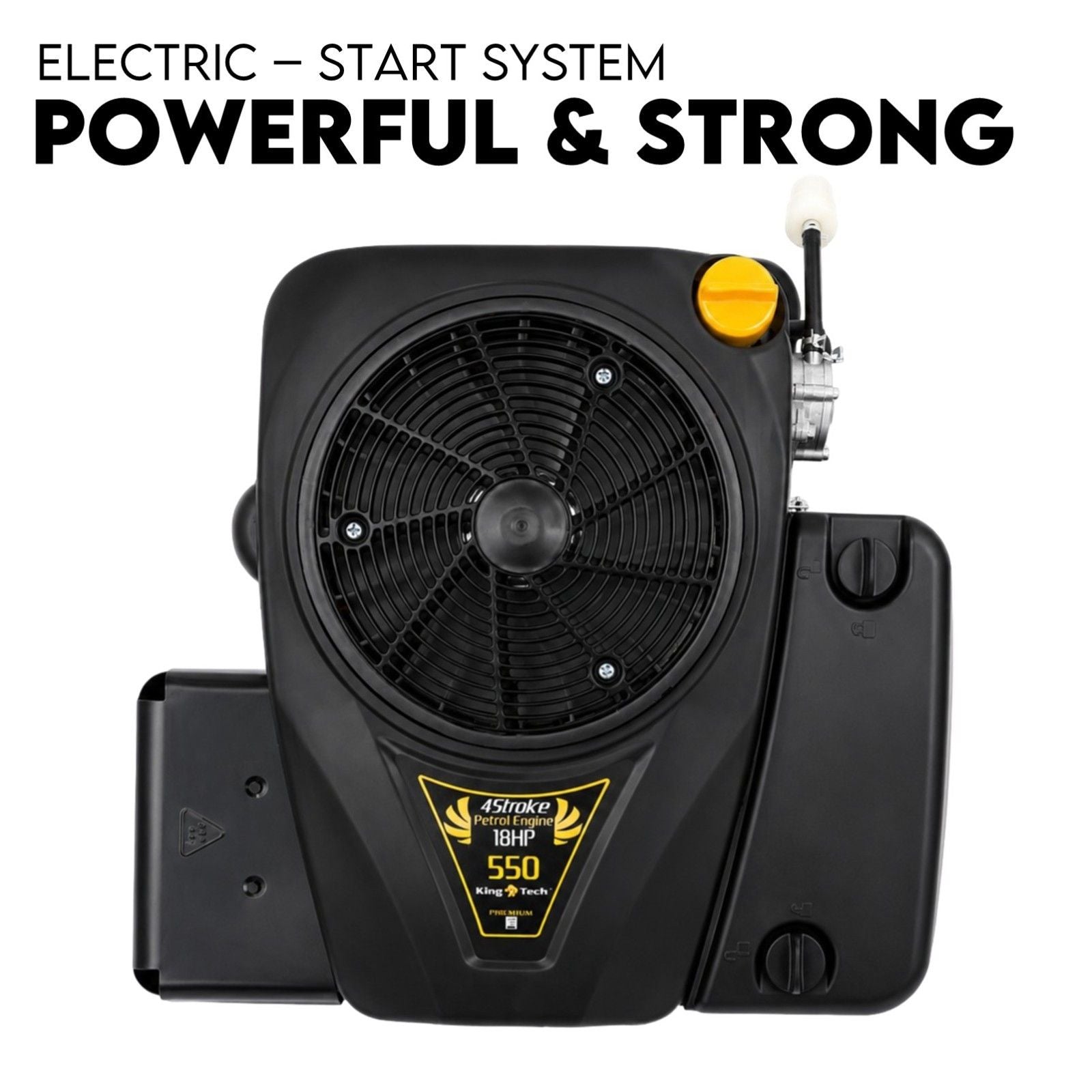

- Electric start system with electronic ignition for quick, reliable starts.
- Cast-iron cylinder bore adds durability and long engine life.

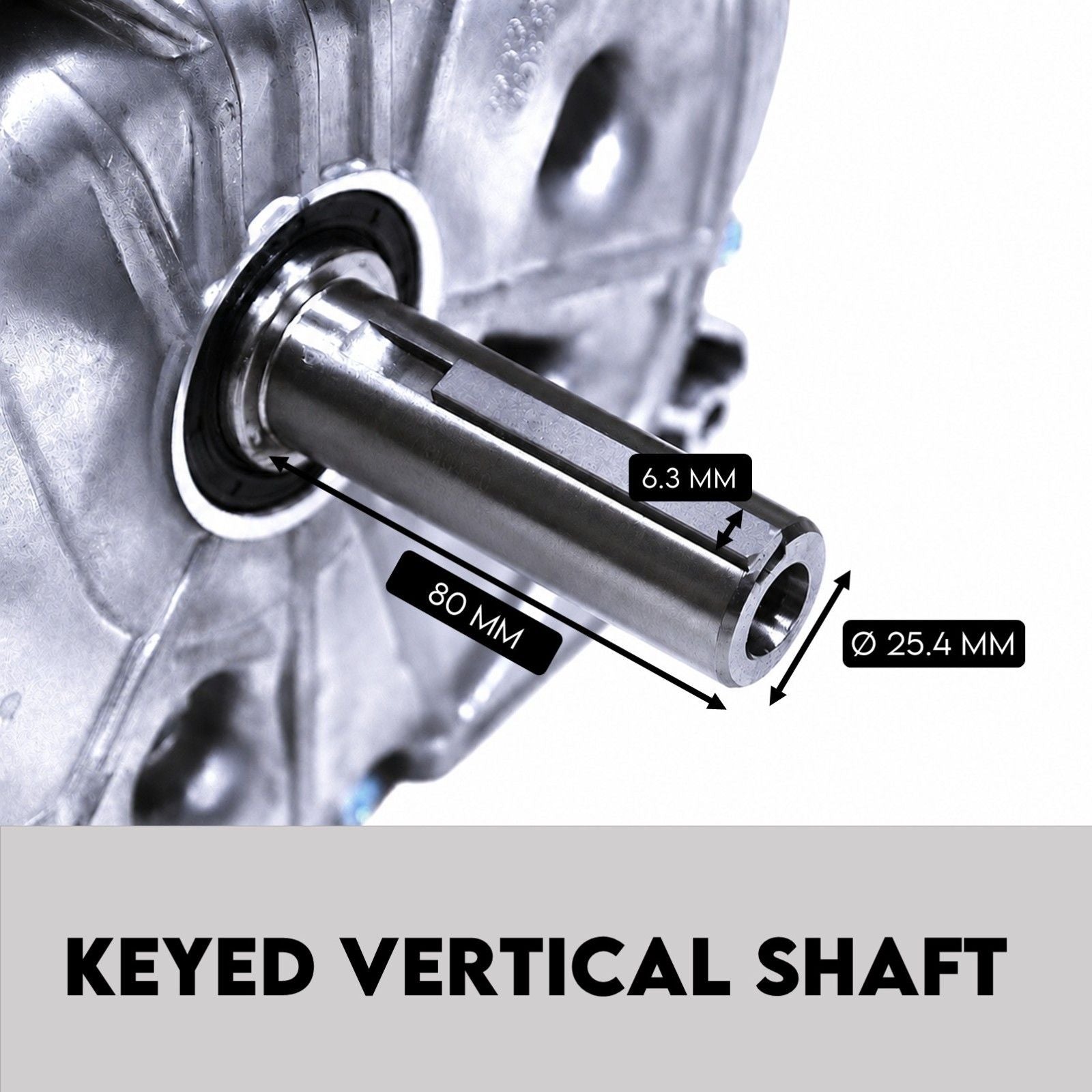

- 1" (25.4 mm) output shaft with keyway for secure PTO connection.
- 8.7:1 compression ratio for balanced power and smooth operation.
- Mechanical governor maintains consistent engine speed under load.
- Transistorized magneto ignition for clean, spark-steady performance.
- Universal bolt pattern fits many Briggs and Stratton or Honda setups.
- Low-vibration balance reduces wear on mower frames and belts.
Specifications
| Engine type | 4-stroke, single-cylinder OHV petrol engine |
| Displacement | 550 cc |
| Bore x Stroke | 94.5 mm x 78 mm |
| Compression ratio | 8.7 : 1 |
| Rated output | 13.2 kW @ 3600 rpm (18 HP) |
| Max torque | 39.5 Nm @ 2500 rpm |
| Shaft type | Vertical, 25.4 mm (1") keyway |
| Rotation | Counter-clockwise (PTO view) |
| Starting system | Electric start |
| Ignition | Transistorized magneto |
| Governor system | Centrifugal mechanical |
| Oil capacity | 1.5 L |
| Weight | 41 kg |

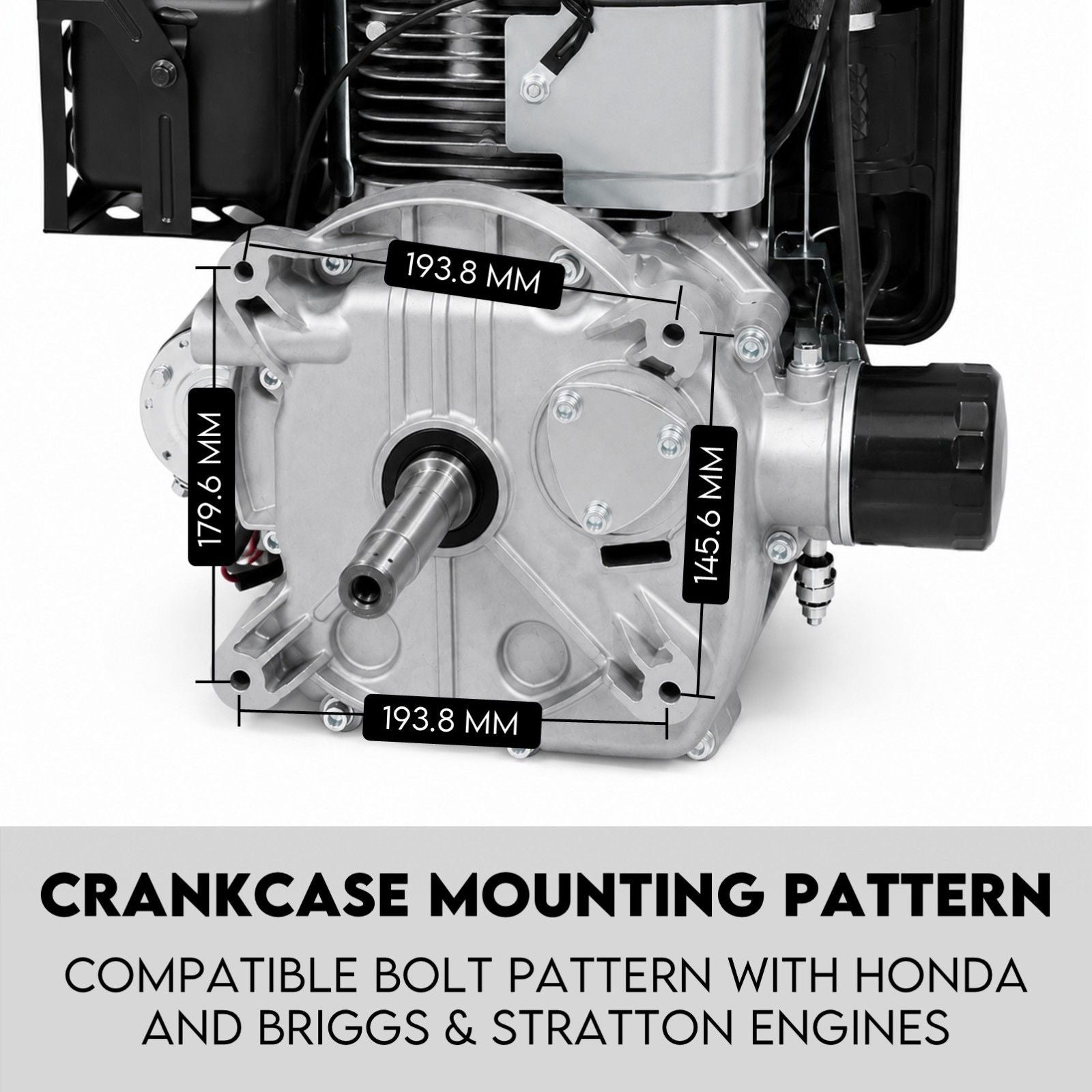

Installation Bolt Details
- Mounting interface includes 3 through holes of 8.8 mm and 1 blind hole of 8.8 mm for secure attachment.
- Bolts for the solenoid valve are not required for installation.
