The Protege BW33 1hp bore water pump gives you a class-leading flow rate, producing an awesome 83L/min at 26 metres' depth. And if you need to go really deep, its 10 impellers will still be producing 17L/min at a dizzying depth of 88 metres. What's more, featuring a 304-grade stainless steel housing as well as brass inlets and outlets, it's truly built to last.

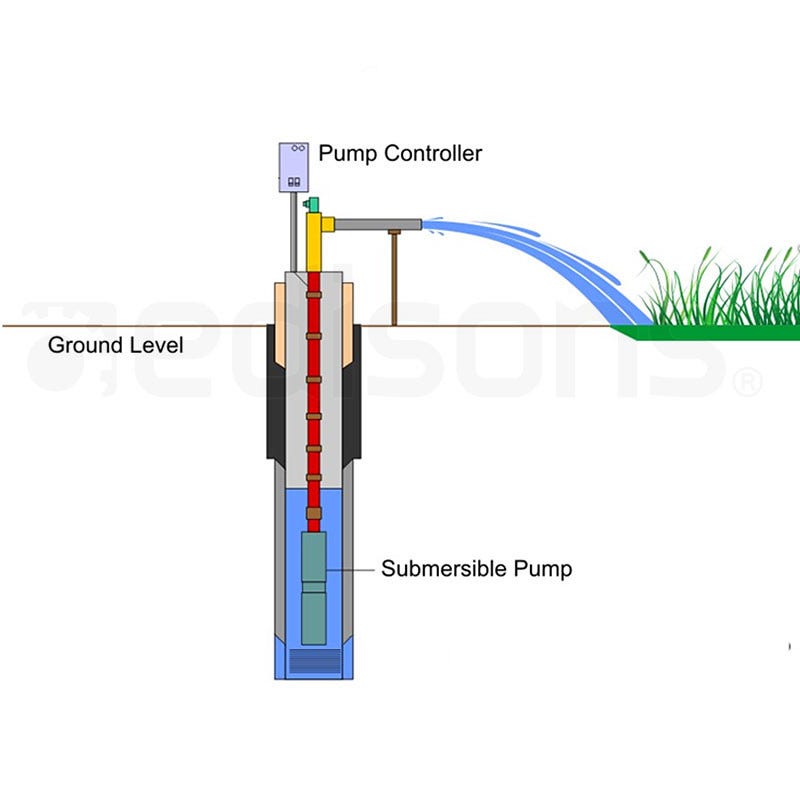

In parts of Australia, it might be hard to believe that water is everywhere. But with your Protege bore water pump, you're well equipped to find it. Whether the water is 5 meters or a maximum of 90 metres below ground, your Protege will bring it up for you. Of course, if you're lucky enough to have surface water available, your Protege works vertically or horizontally.
Only requiring a borehole of 100mm, your Protege minimises the work needed to reach the water. And once you get there, you're set. With unparalleled construction and an unbeatable price, your Protege is a durable workhorse that will keep you in flow for years to come. So, whether you need it for domestic or commercial applications, get pumped about your savings and order the Protege today!
- Class-leading flow rate
- 83L/min at a depth of 26 metres - 17L/min at 88 metres
- 10 impellers
- 90m max head
- Brass inlets and outlets

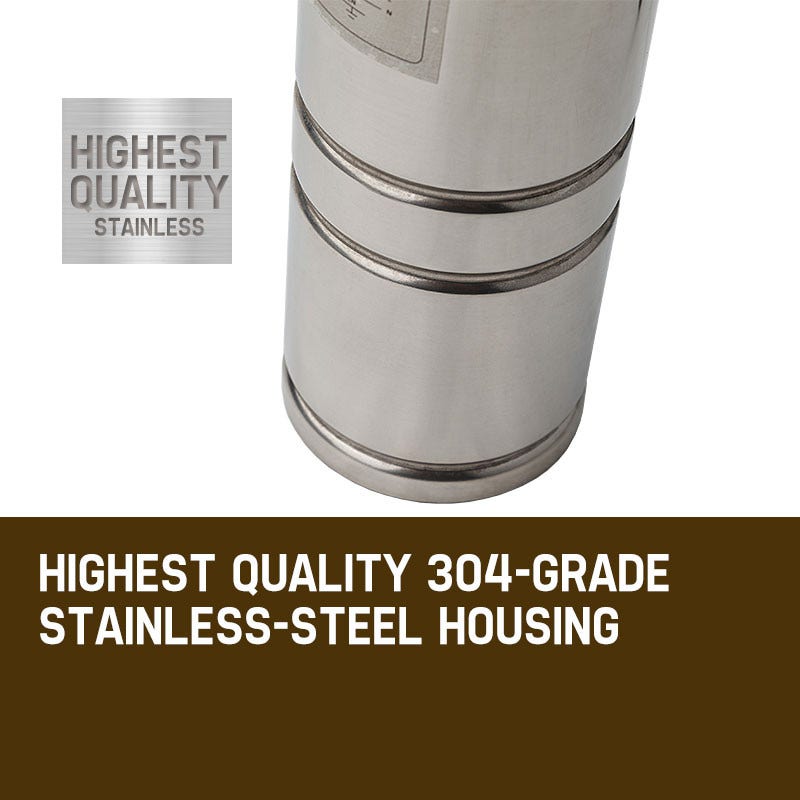

- Highest quality 304-grade stainless-steel housing
- Can be mounted horizontally as well as vertically

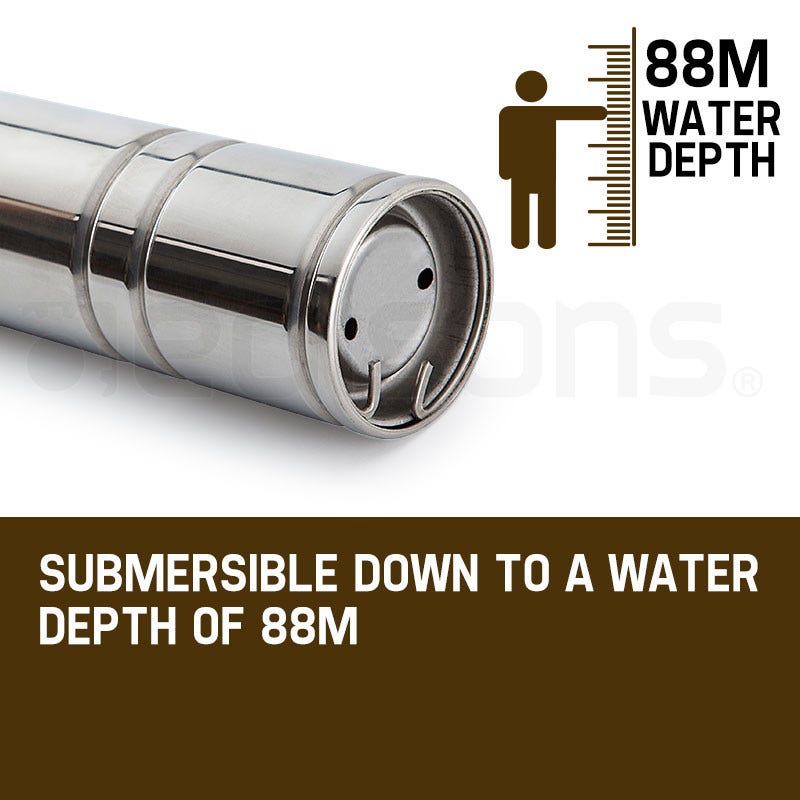

- Submersible down to a water depth of 88m

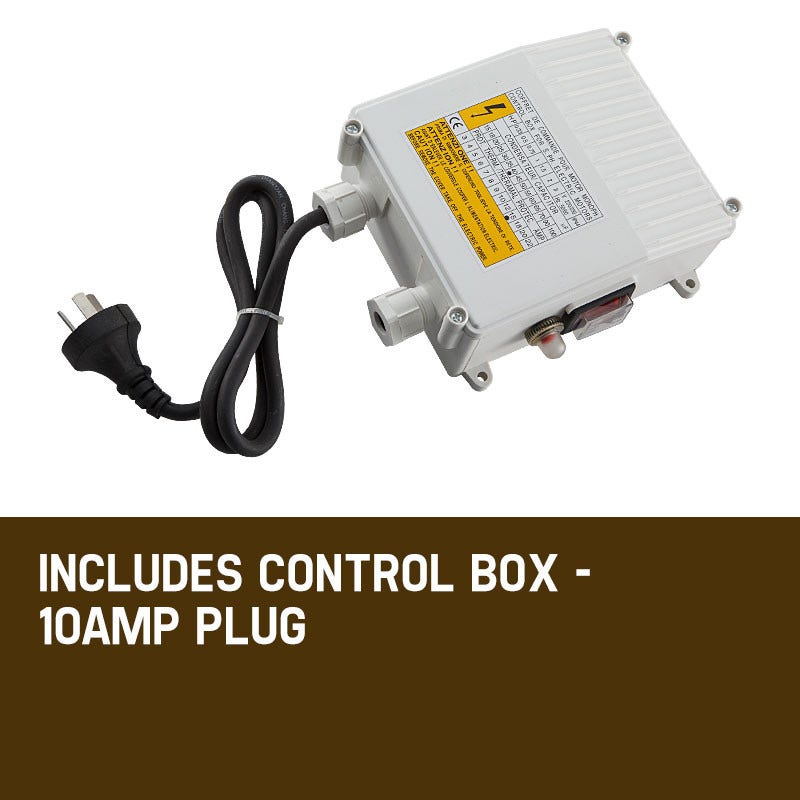

- Includes control box
SPECIFICATIONS
- Brand: Protege
- Model: BW33
- Features: Submersible
- Type: Bore Pump
- Motor: 1HP/0.75Kw
- Phase: Single

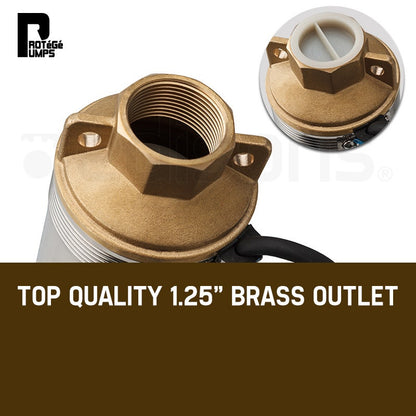

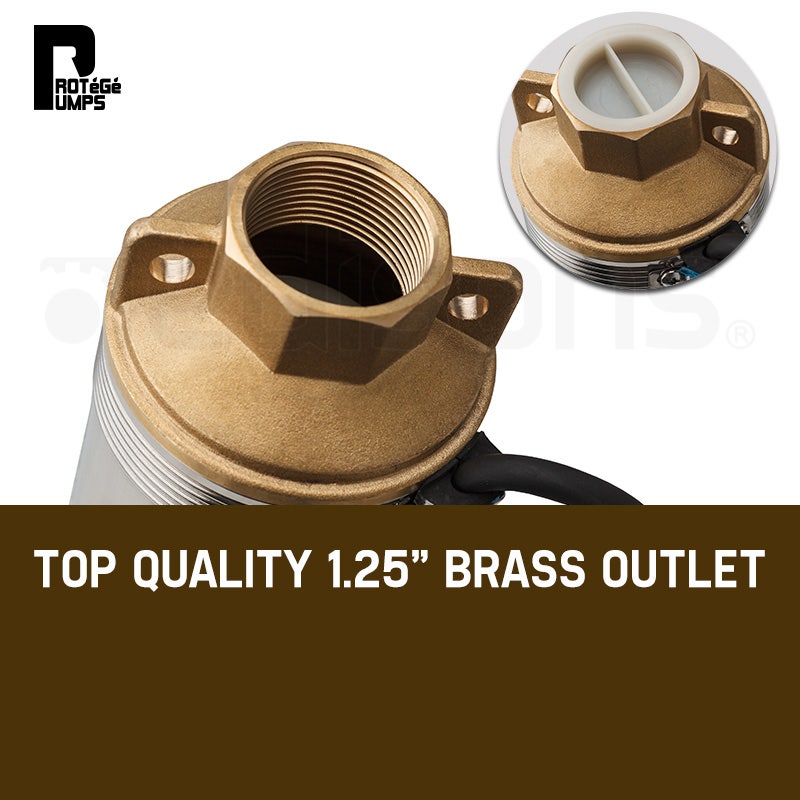

- Brass Outlet: 1.25"
- Revolution: 2850 RPM
- Water PH: 6.5 - 8.5
- Max Ambient Temp: 70 C
- Max Fluid Temp: 70 C
- Vertical / Horizontal Mounting: Yes
- Max Starts Per Hour: 30
- Overload Trip Time: <10Sec
- Insulation Class: I
- Plug: 10 amp
- Protection Class: IP68
- Cable Length: 30m
- Power Source: Electric
-
Flow Rate:
- 17L/min @ 88m = 36.4psi
- 25L/min @ 83m = 61.6psi
- 33L/min @ 77m = 85.4psi
- 42L/min @ 69m = 96.6psi
- 50L/min @ 61m = 107.8psi
- 67L/min @ 44m = 116.2psi
- 83L/min @ 26m = 123.2psi
- Input voltage: 240V / 50Hz 6A
- Power Plug: Australian Standard
IN THE BOX

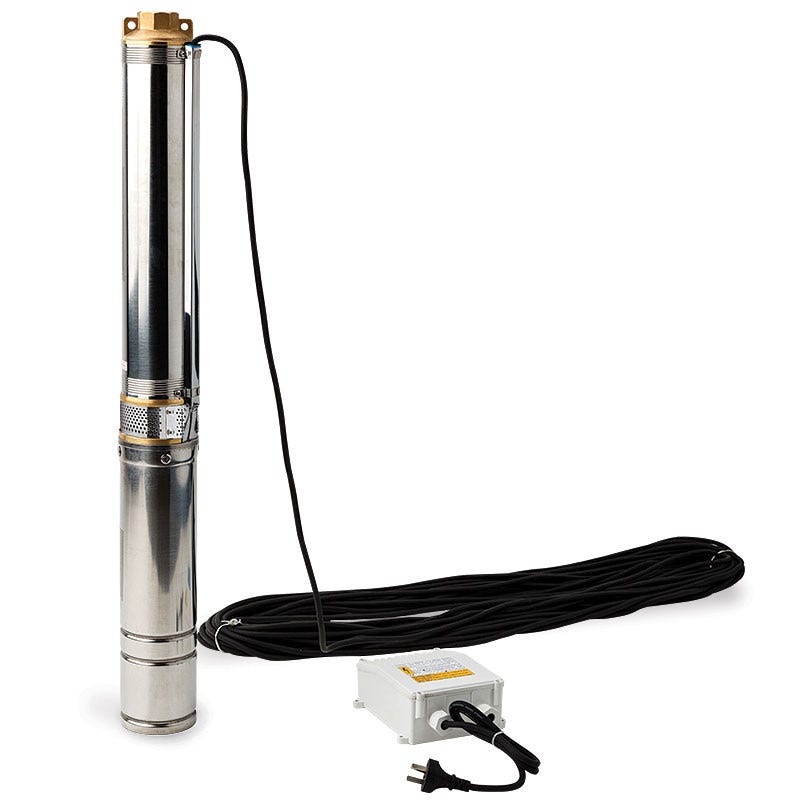

- 1 x Protege 1HP water pump
- 1 x Control box
- 1 x User manual
SIZE WEIGHT
- Carton Dimensions (W x D x H): 11 x 117 x 19cm
- Carton Weight: 17kg

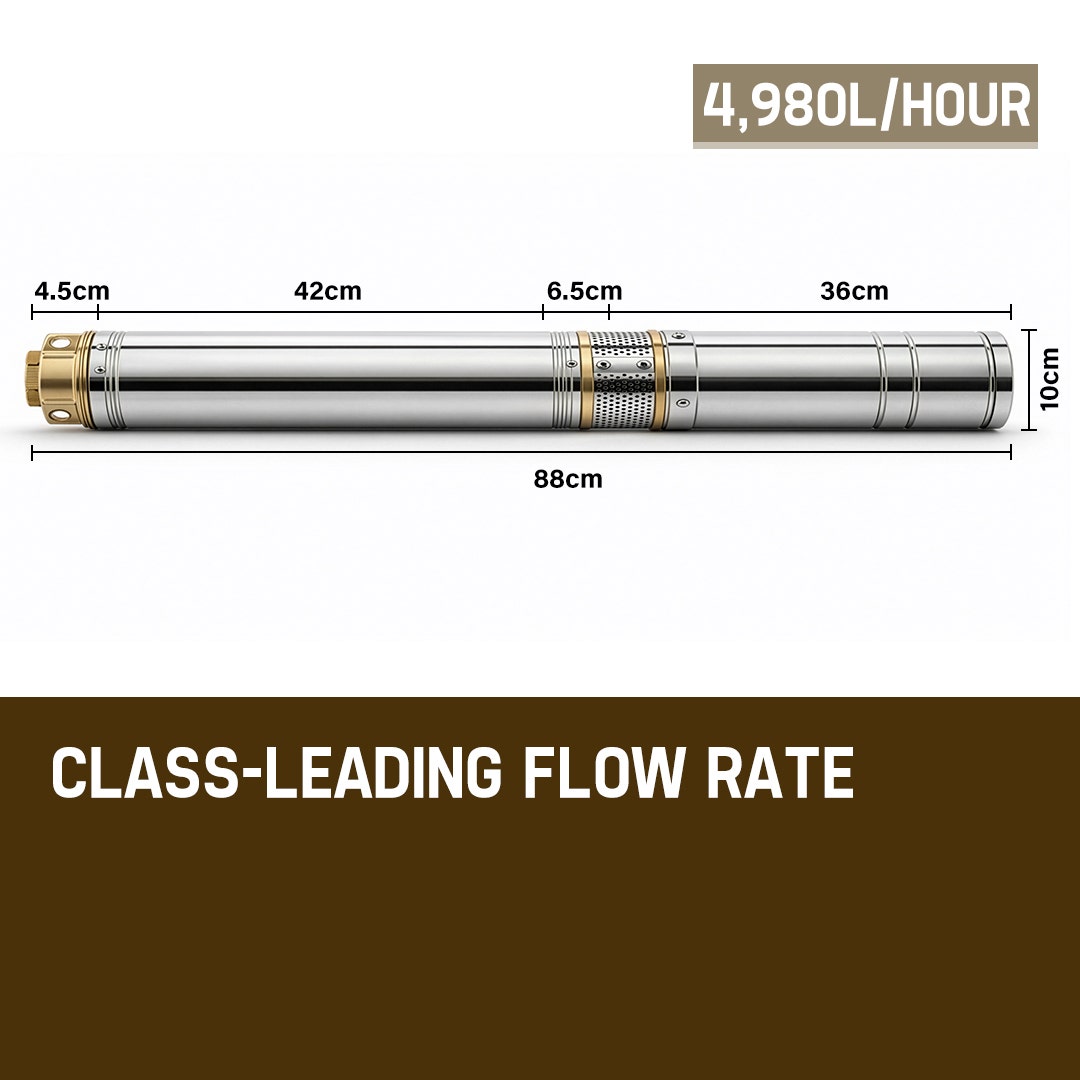

- Product Dimensions (W x L): 10cm X 88cm
- Product Weight: 16kg
