Weatherproof | 1100-2000W | 7200L/H Max Flow Rate

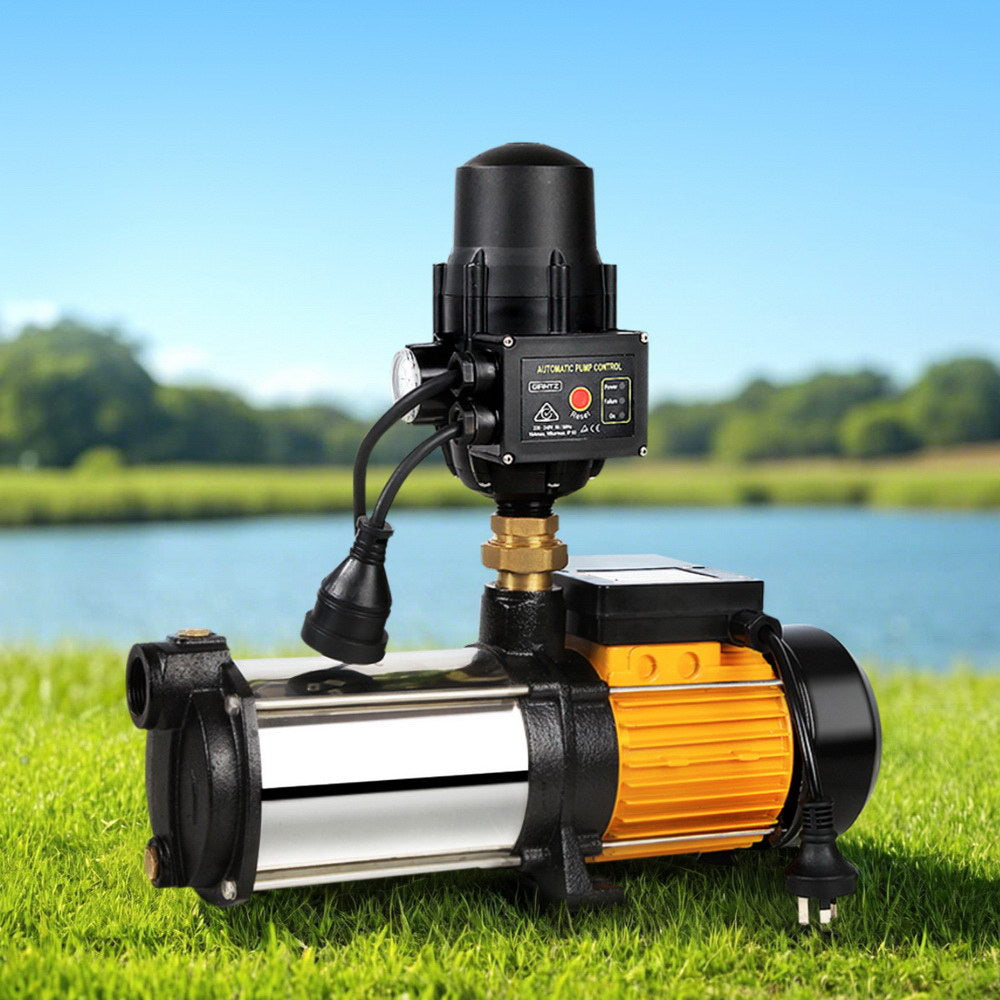

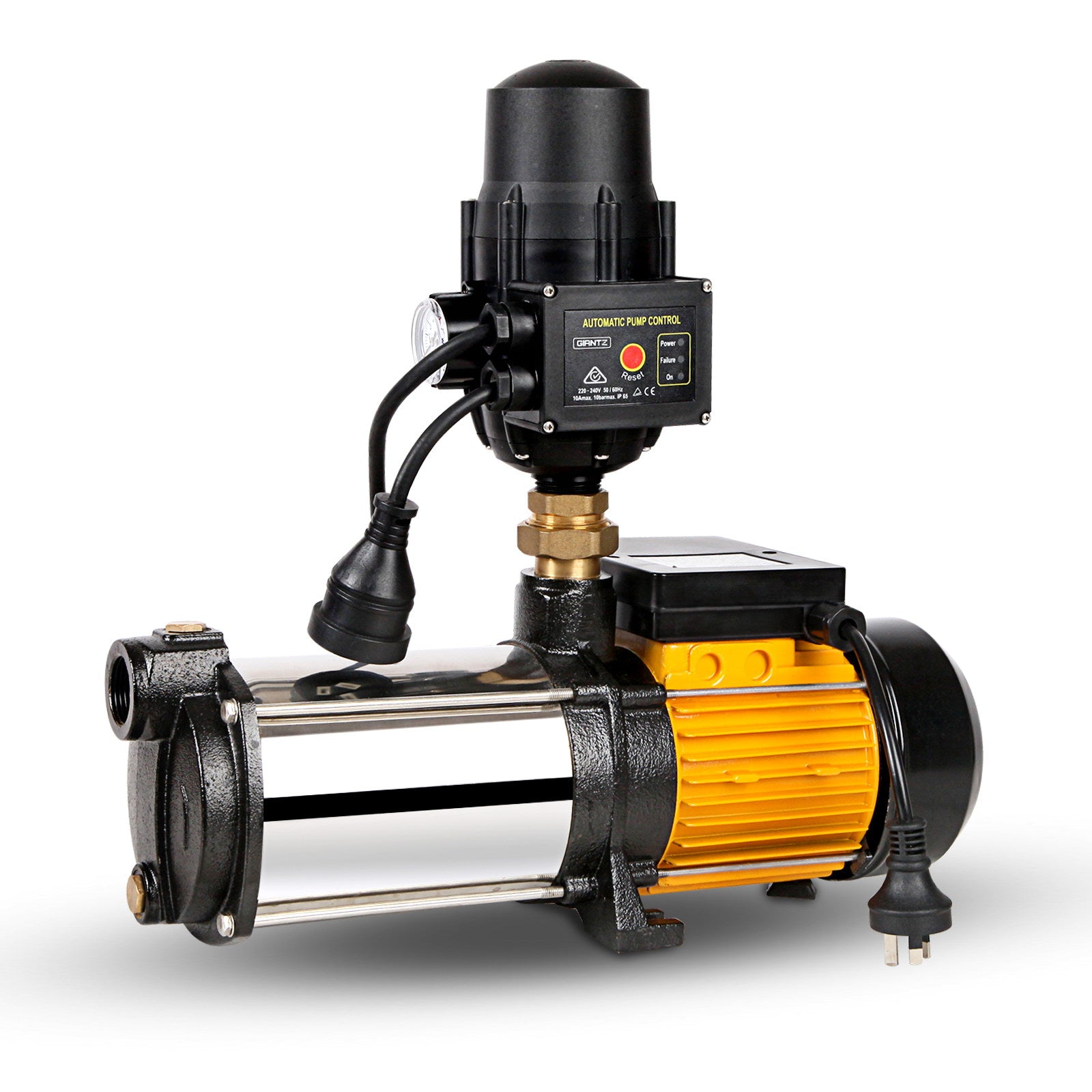

The Giantz 4 Stage pressure pump is your go to pump for constant and reliable pressure. Ideal for clean or rain water, it can produce with maximum flow of 7,200L/hr and maximum head of 51m. Designed for permanent installation as a pressurised water source, it is ideal for filling up toilets, washing machines, dishwashers, kitchen taps, showers, irrigation systems or watering the garden. Made to last with an IP rated motor, stainless steel pump body and cast iron ends, you can ensure that you get the peace of mind. This unit also includes a fully automatic pressure controller with precise pressure gauge. You can always adjust the start up pressure from 1.5 bar onward till 10 bar.
Of course, with all Giantz products, this multi stage pump comes with a full 12 month warranty and represents great value for anybody seeking to complete a current installation or is considering an upgrade of their existing pump. PLACE YOUR ORDER NOW!
Features
Powerful self-priming multi-stage pump
Garden irrigation, farm irrigation & home water supply
100% duty cycle - Designed for continuous operation
Rust resistant stainless steel pump body w/ cast iron ends
Fully automatic operation on/off controller
Huge 51m head
Anti-corrosive alloy motor housing, ceramic and carbon seals
Built-in thermal protection

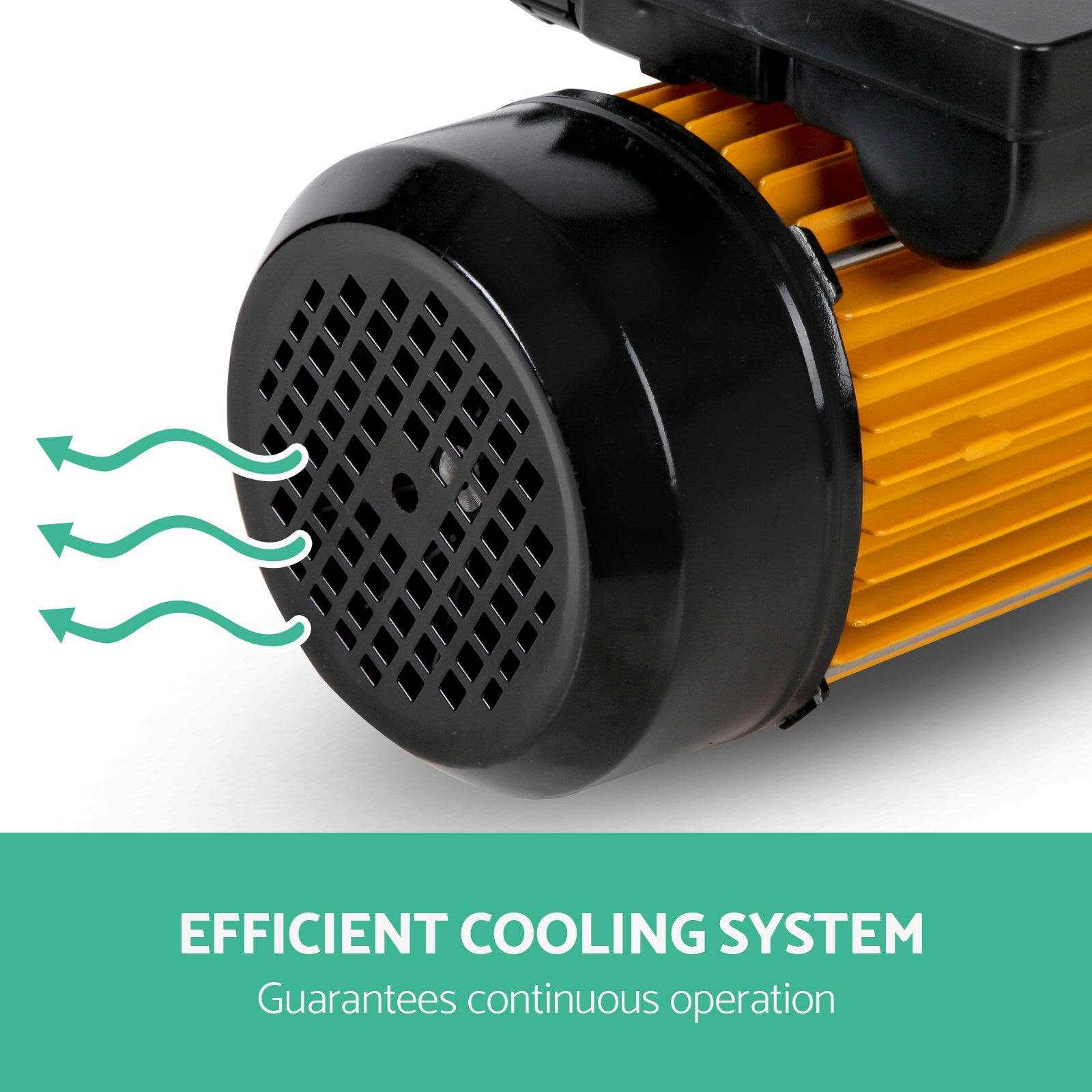

Efficient cooling system

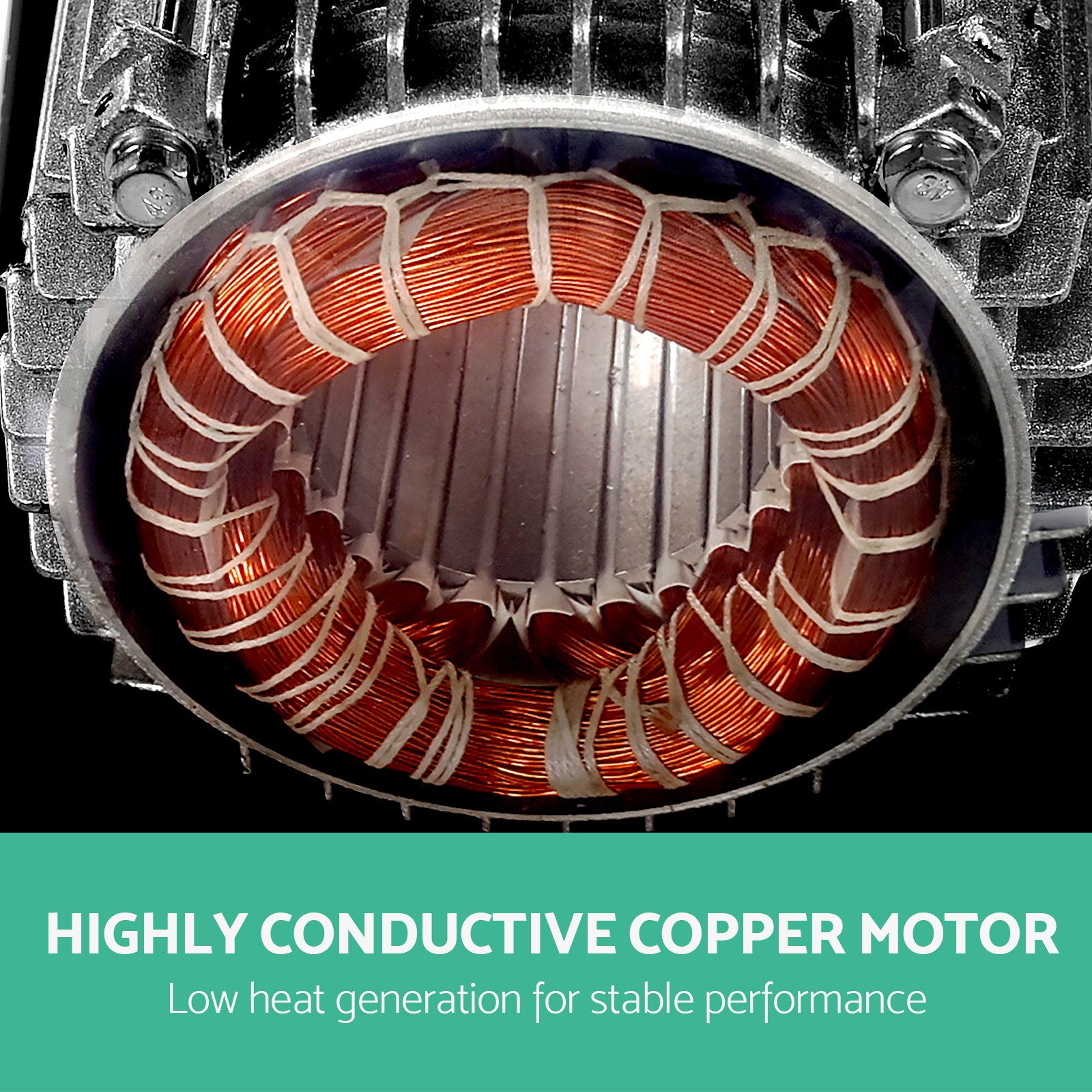

Highly conductive copper motor - Efficient & low heat generation

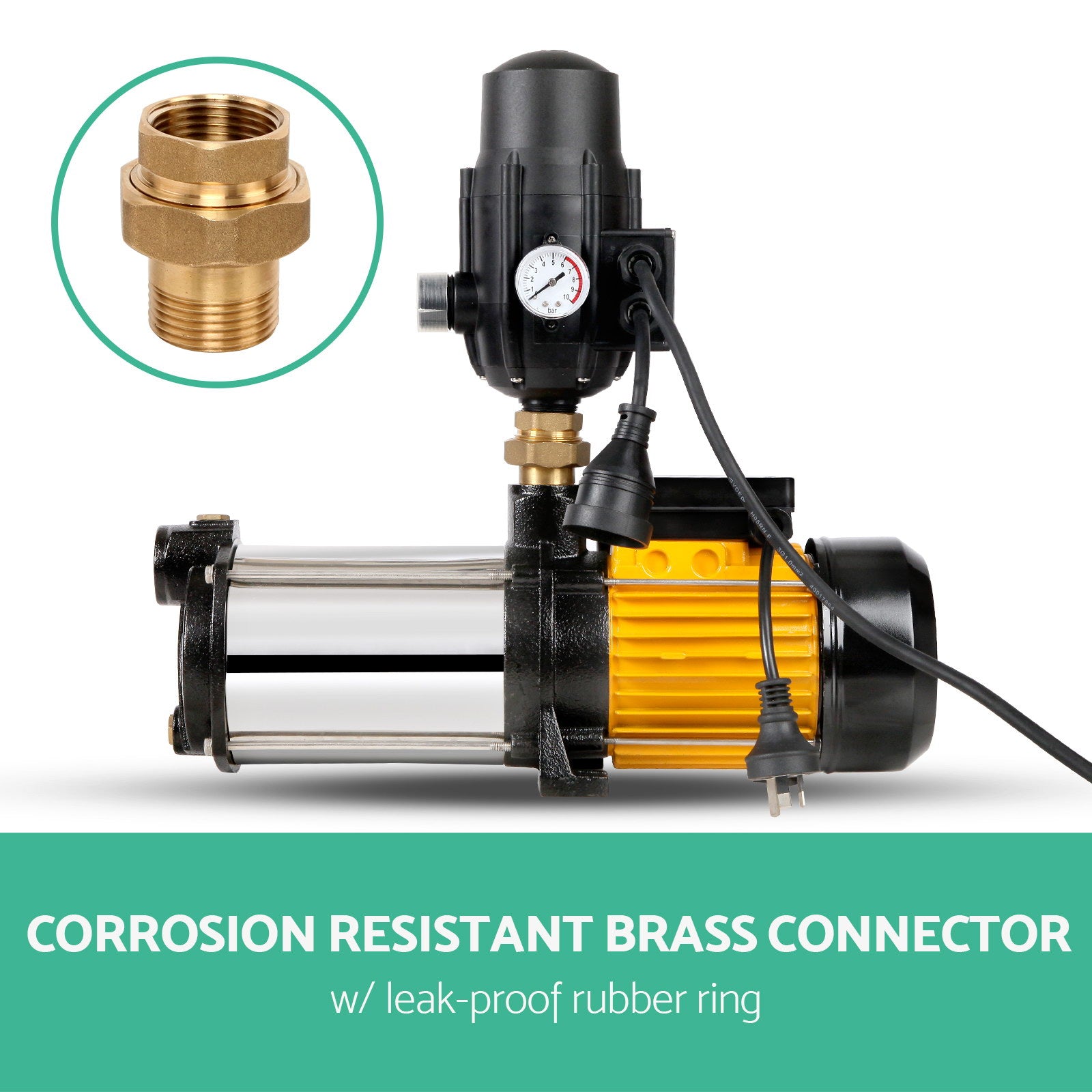

Corrossion resistant brass connector
Leak proof rubber ring
Easy connecting plug and cable

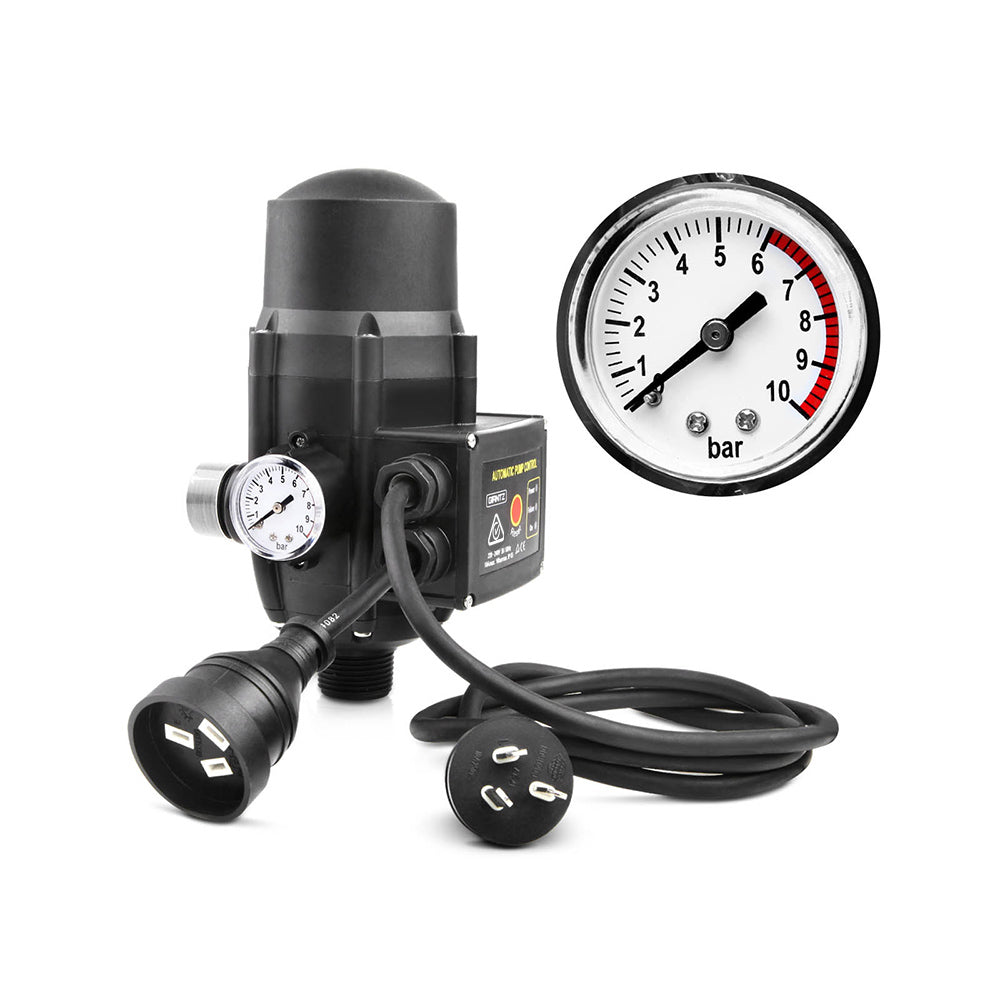

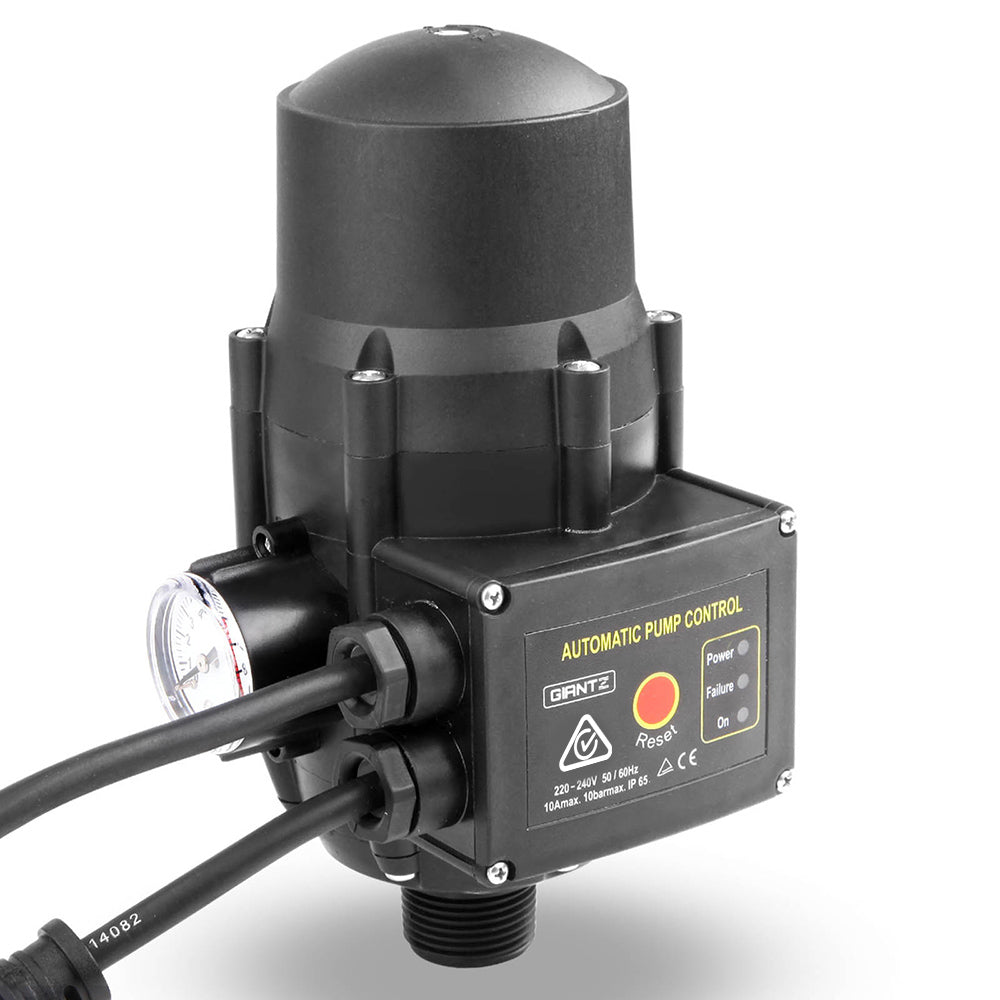

Fully automatic pressure controller

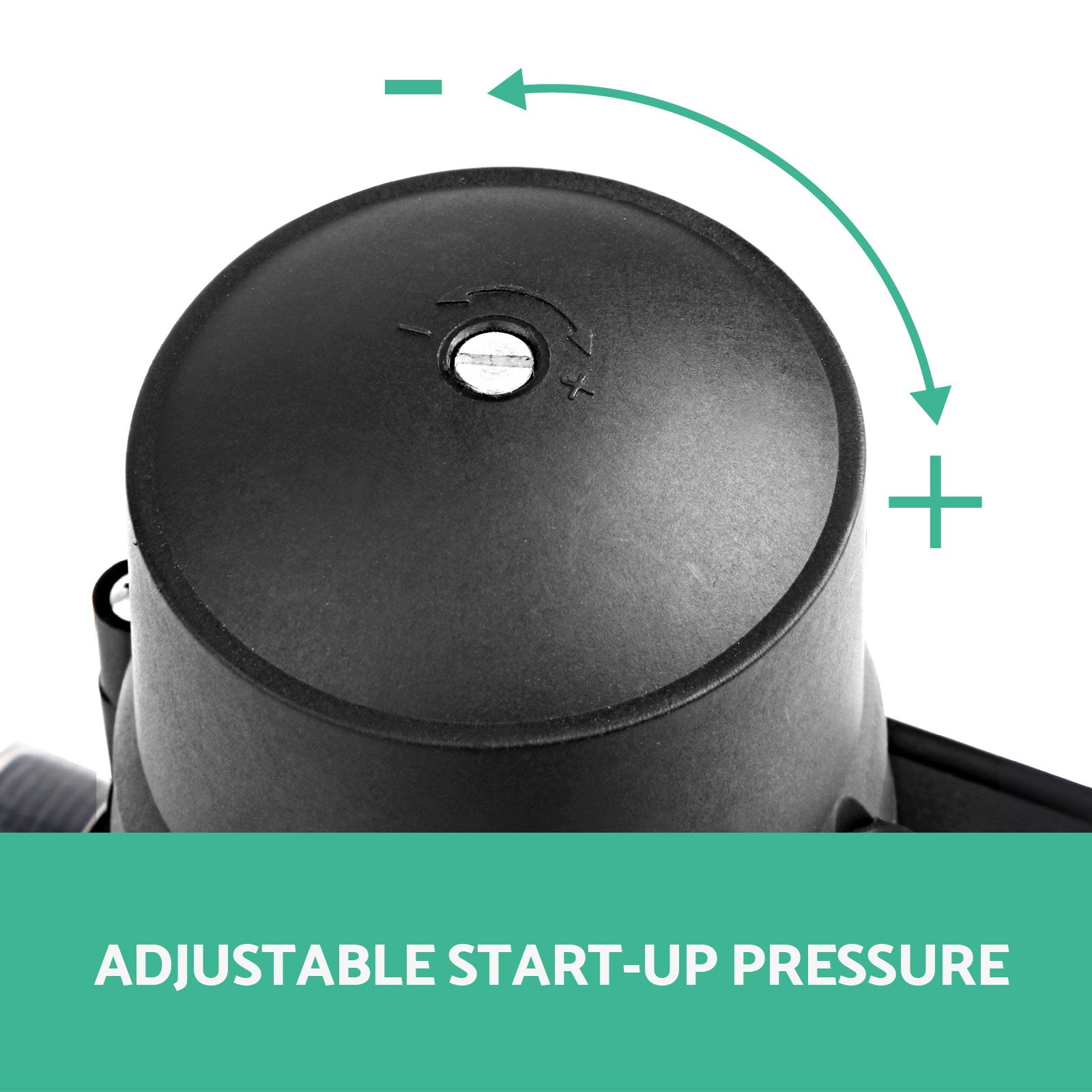

Adjustable start-up pressure
Australian standard cable and plug
1 year warranty - We are always ready to back you up
Specifications:
I. IMPORTANT WARNING - PROHIBITED USES:
This pump is NOT designed for heavy-duty industrial, commercial, or hydraulic applications. STRICTLY PROHIBITED for use with elevator systems, industrial machinery, or as a power unit for any equipment beyond its capacity. Misuse will void the warranty and may cause product failure.
II. Operating Scope & Limitations
Home garden watering and irrigation
Transferring water from rainwater tanks or wells
Boosting water pressure in domestic pipelines
Circulating water in ponds or small fountains
Absolutely not suitable for powering hydraulic elevator systems, heavy machinery, or in any continuous high-load operation.
Ensure the electrical supply matches the pump's requirement.
III.Specification
Pump:
Rated input power:1100W
Max input power: 2000W
Maximum Flow: 120L/min, 7200L/hr
Maximum Head: 51m
Stage: 4 stages
Plug & Cord: SAA 250V/10A *0.6m
Brass connector: 1"
Inlet/outlet: 1"
Casing: stainless steel
Motor: Copper wire
Protection class: IP44
Mechanical Seal: Ceramic/ Carbon
Controller:
Voltage: 220/240V
Frequency: 50/60Hz
Maximum. current: 10A
Maximum. water temperature: 60 degrees
Starting pressure: 1.5-3 bar
Maximum. pressure for use: 10 bar
Protection grade: IP65
Inlet and outlet size: 1"(25mm)
Dimensions: 22 x 15 x 15cm
Pump weight: 14.5kg
Controller weight: 1.5kg
Package Content
(1) 4 Stage Water Pump x1
(1) Pump Controller x1
This product comes with 1 year warranty
| Brand | Giantz |
| Category | Tools > Pumps > Irrigation Pumps |
| SKU | PUMP-ST4-20-OG-TPC |
| Weight | 16.0 kg |
