RCM compliant as per Level 1 electrical equipment that is classified low risk or unknown risk and is any in-scope electrical equipment.
It is a microprocessor-controlled device that uses ultrasonic or high frequency sound waves to clean jewellery and other delicate items. The vibration of ultrasonic waves in the liquid will cause strong cavitation and emulsification. Millions of cavitation bubbles can be generated per second.
Under the action of sound pressure, these bubbles are rapidly produced and continuously violently blasting, producing a strong impact and suction force to remove stubborn dirt and kill bacteria and viruses.

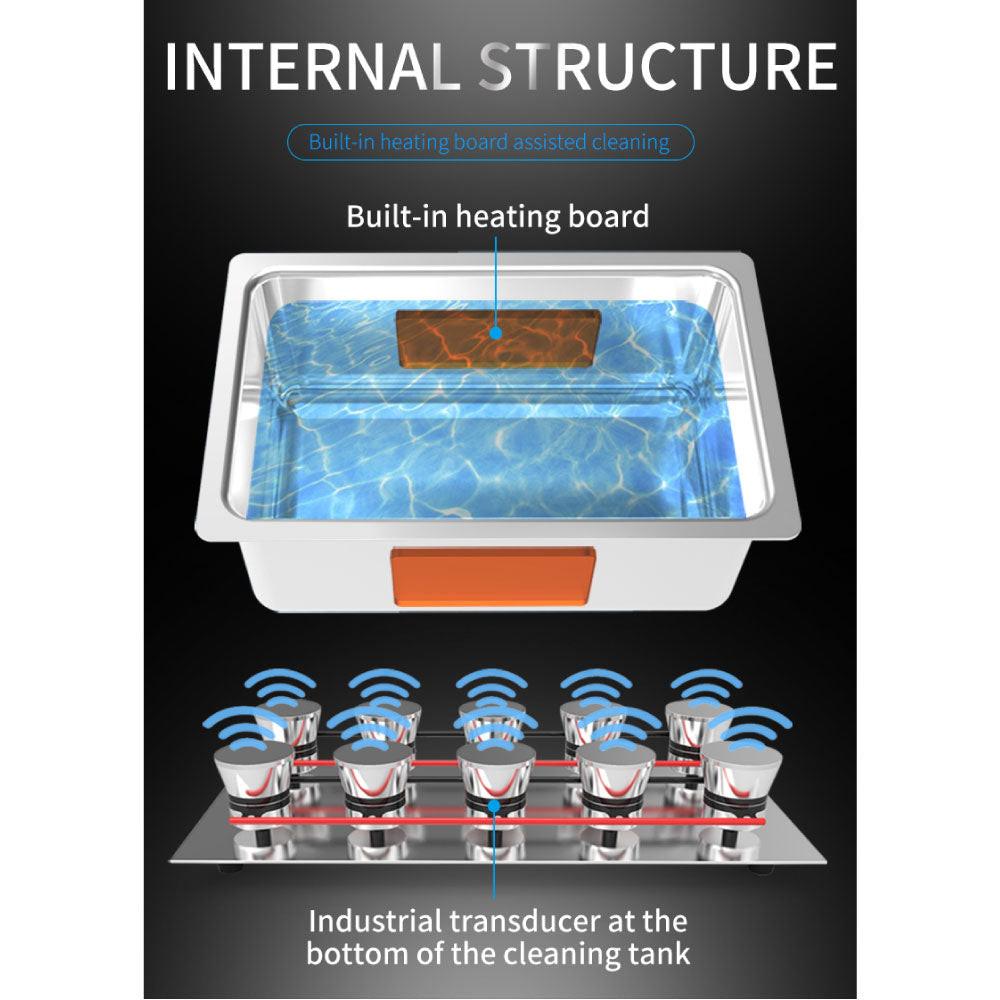

Built-in powerful transducers can strengthen the ultrasonic power and produce a superior cleaning outcome. Utilise the digital program to control the unit, according to the quantity and condition of the items to be cleaned and to choose a working cycle time.
As a result, it is more convenient and efficient than hand wash, steam cleaners, high pressure water jet cleaning or other machines.

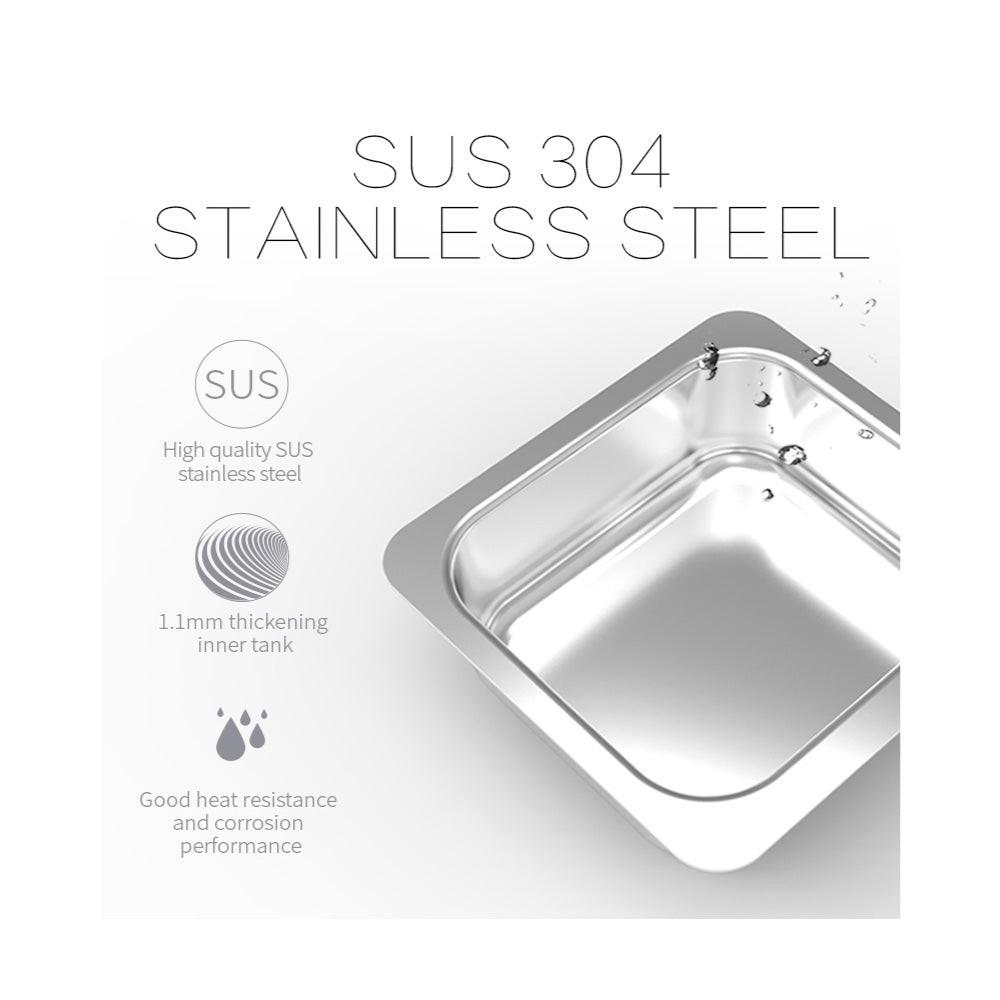

Advanced brushed stainless steel 304 cleaning tank to avoid corrosion water stains and to keep the tank looking always new.

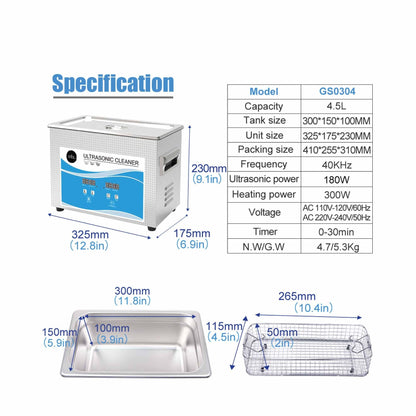

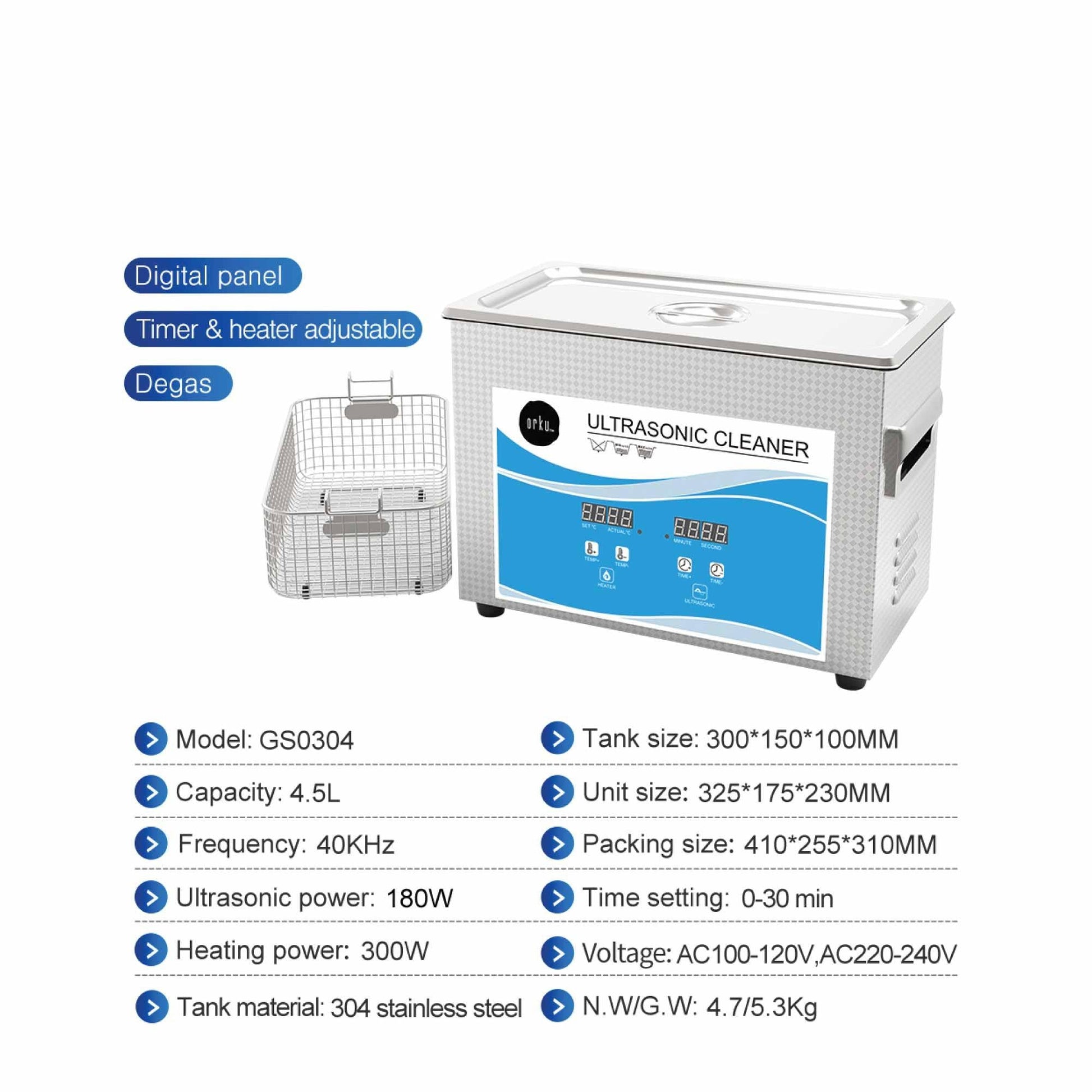

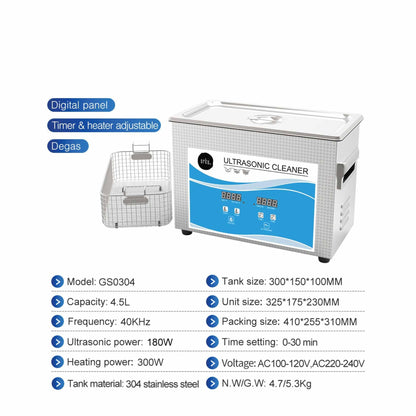

Specifications:
- Capacity: 4.5L
- Material: SUS 304 Grade Stainless Steel
- Transducers: 3 pieces
- Power: 180W
- Voltage: 220v - 240v
- Heating Power: 300W
- Heater: 20 - 80 C
- Frequency: 40 KHz

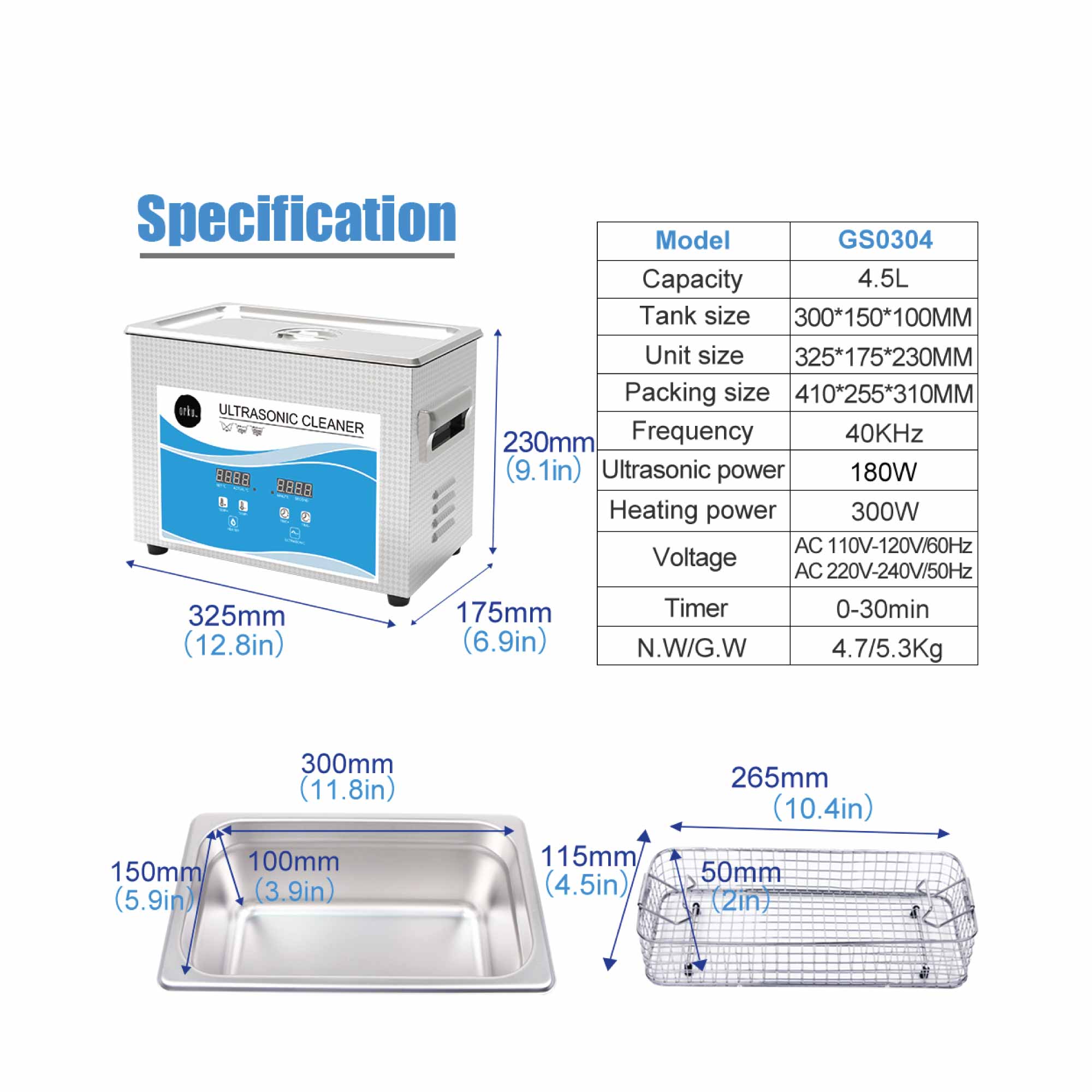

- Tank Size (mm): 300(L) x 150(W) x 100(H)
- Unit Size (mm): 325(L) x 175(W) x 230(H)
- Time: 0-30 minutes
- Weight: 5.2Kg
- AU Plug
Warning:
- Never turn on the machine while its empty
- Always make sure that you fill the container to more than 1/2 capacity and less than 2/3 capacity
- Failure to follow these warnings might damage the machine and void the warranty

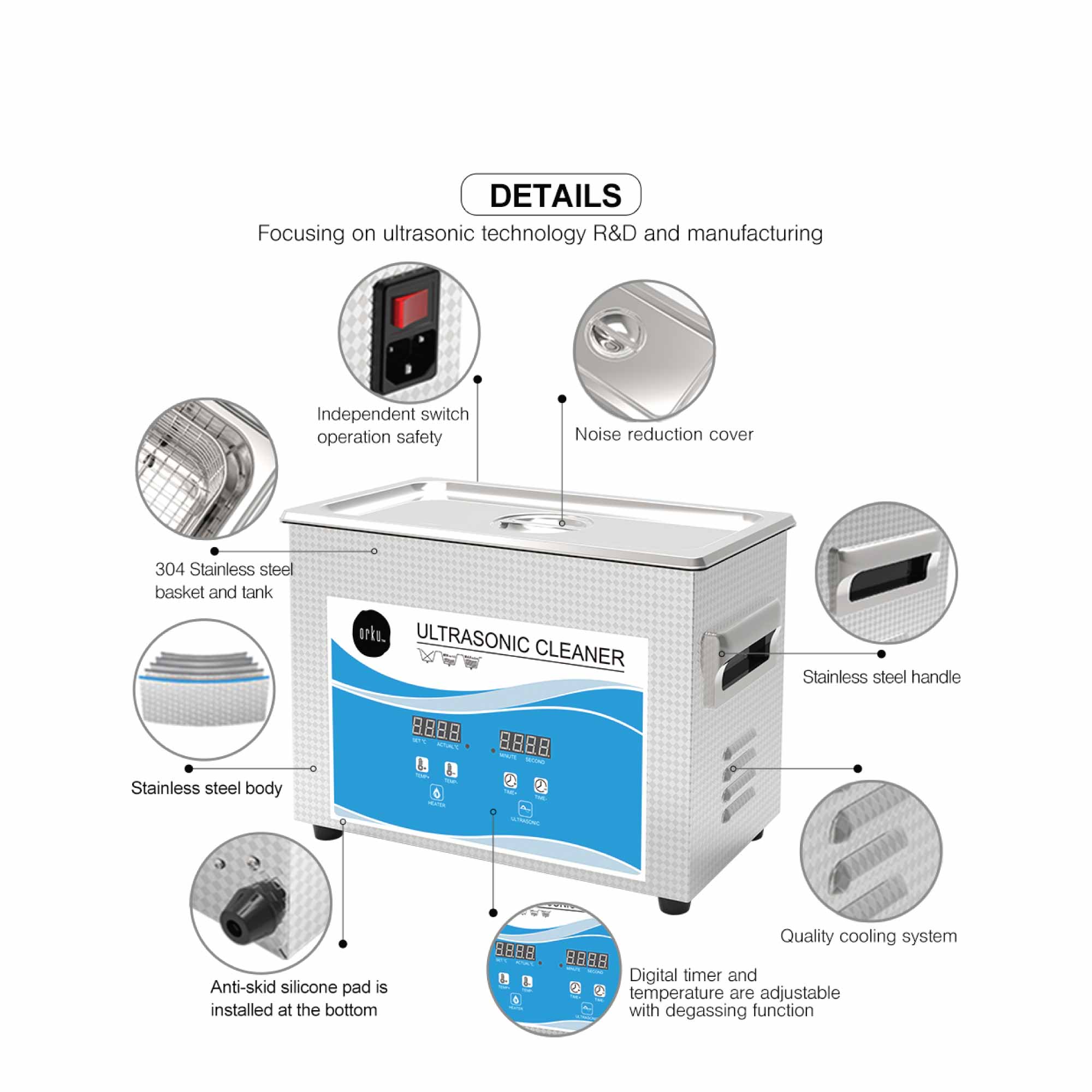

Features:
- Durable Stainless steel construction
- Heating and ultrasonic functions
- Ultrasonic cleaning and heating can be used at the same time
- High efficiency cleaning for small blot particles

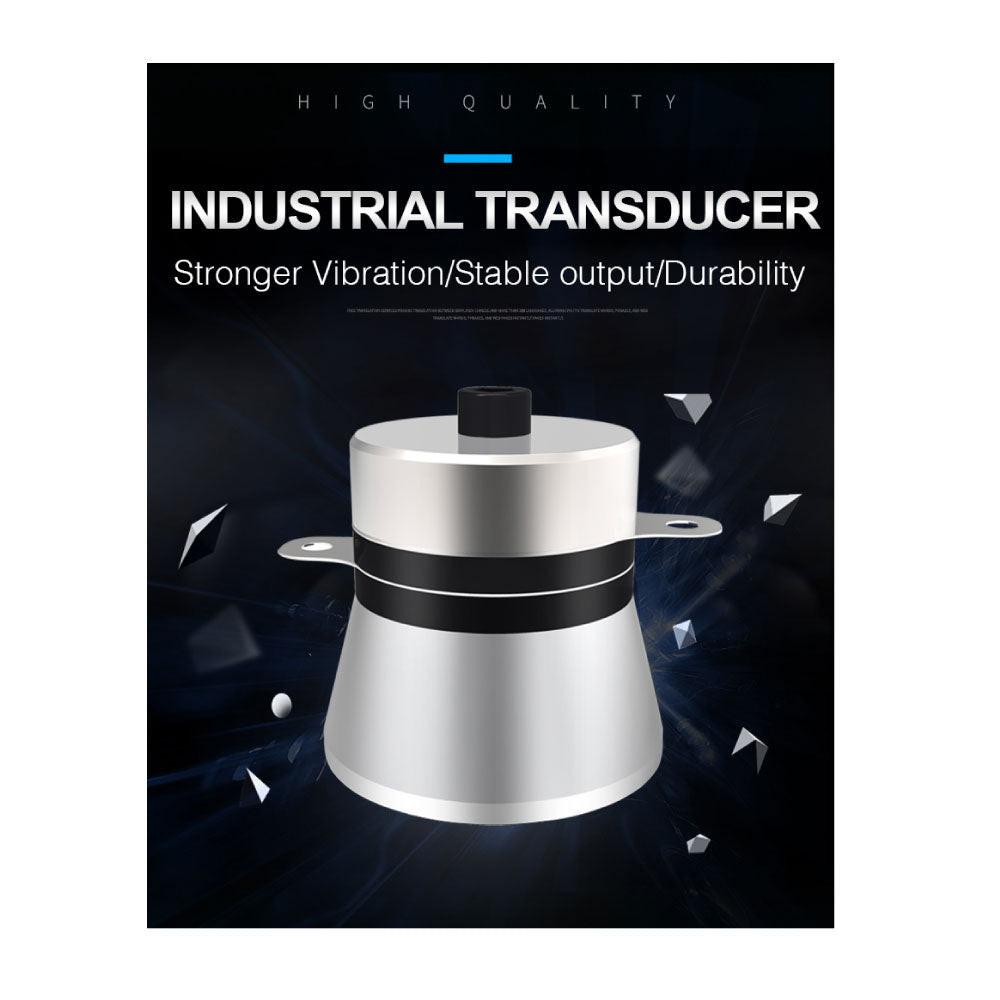

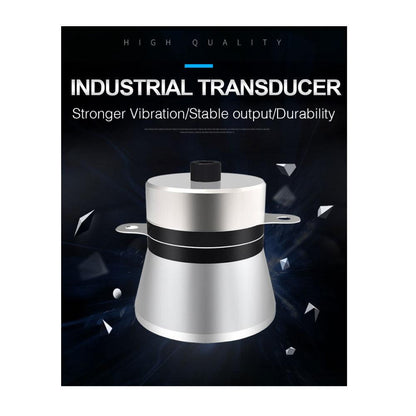

- Built-in Powerful Transducer can strengthen the ultrasonic power to produce a superior cleaning outcome.

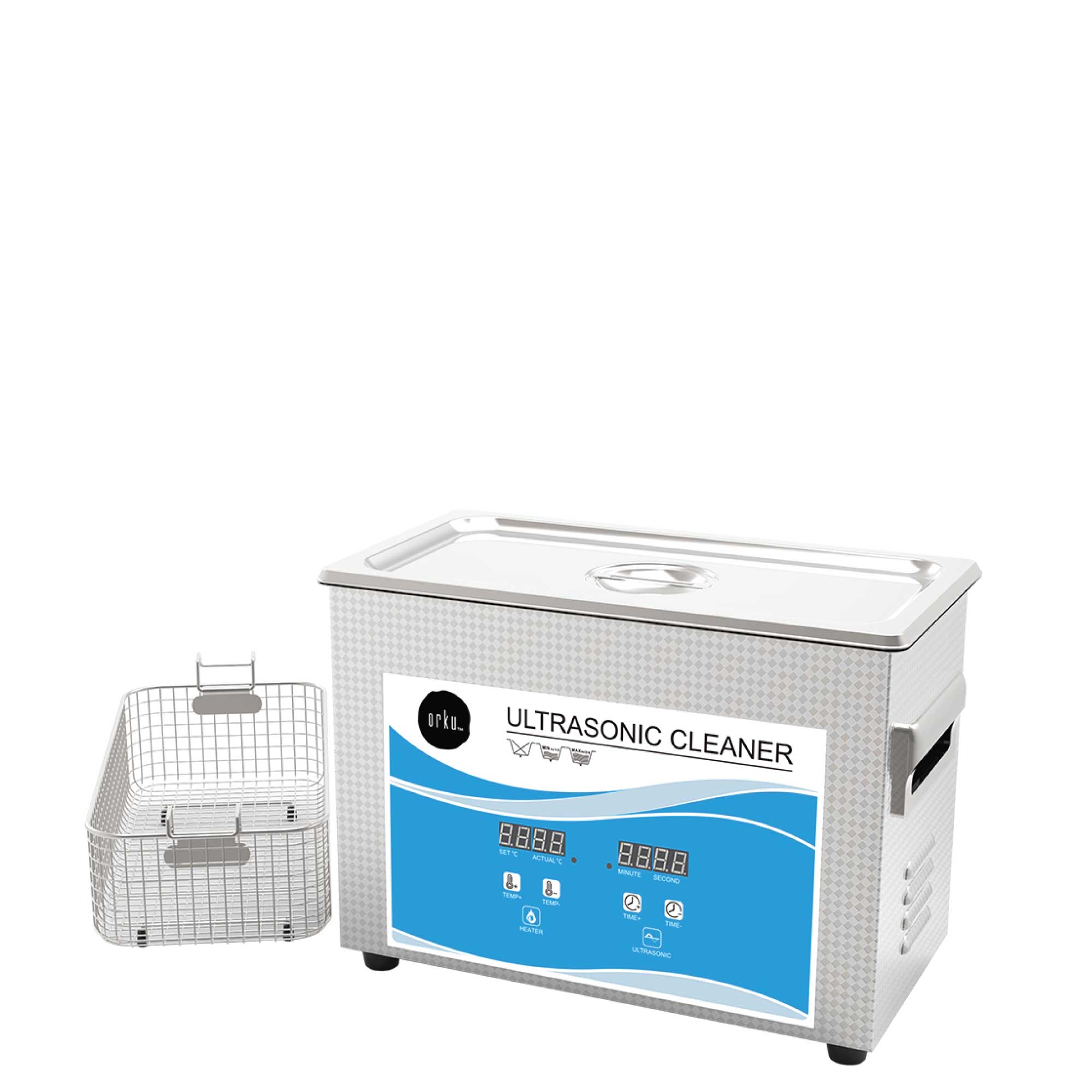

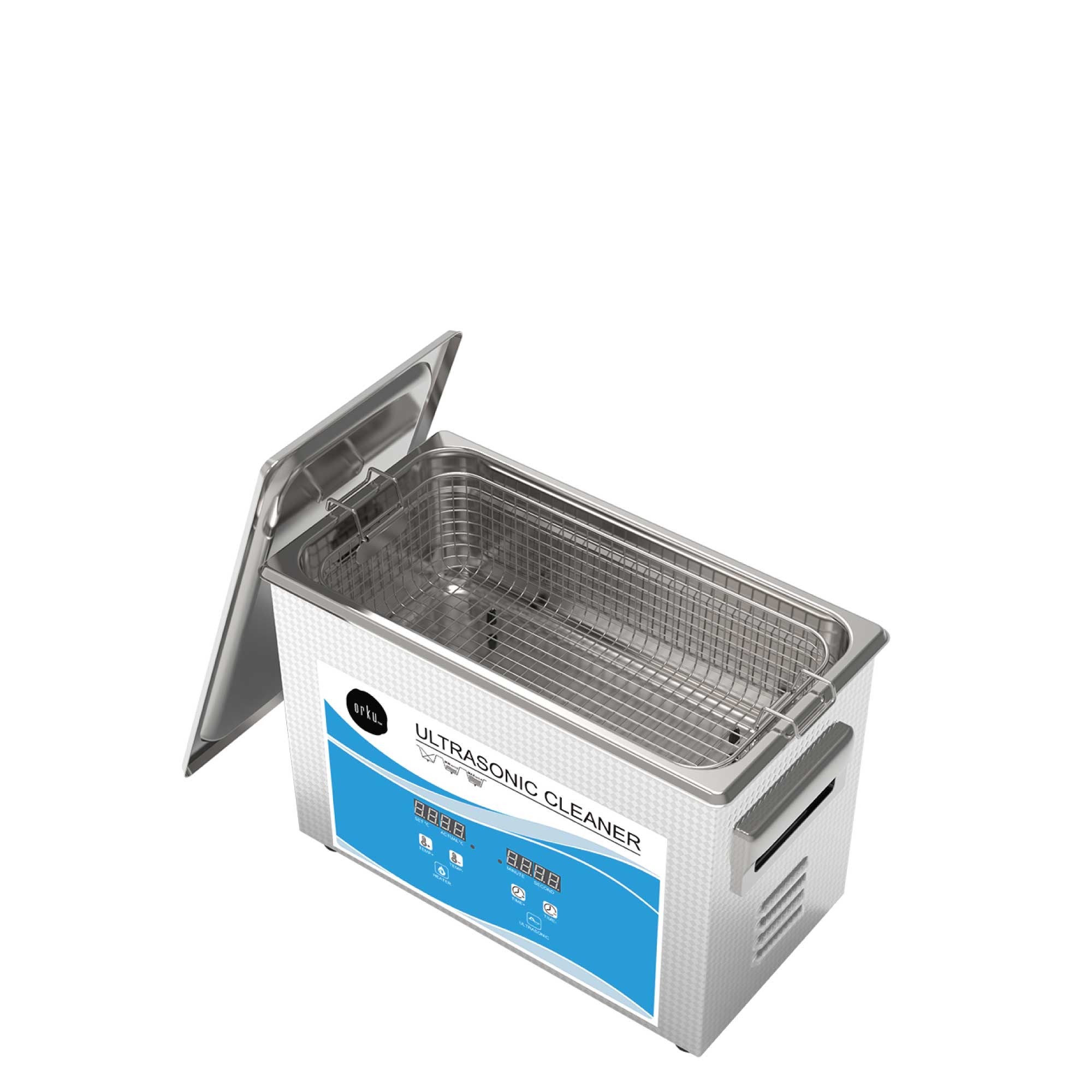

- Stainless steel cleaning basket for cleaning some small objects which need less friction. It can reduce the friction between the small objects and the tank.

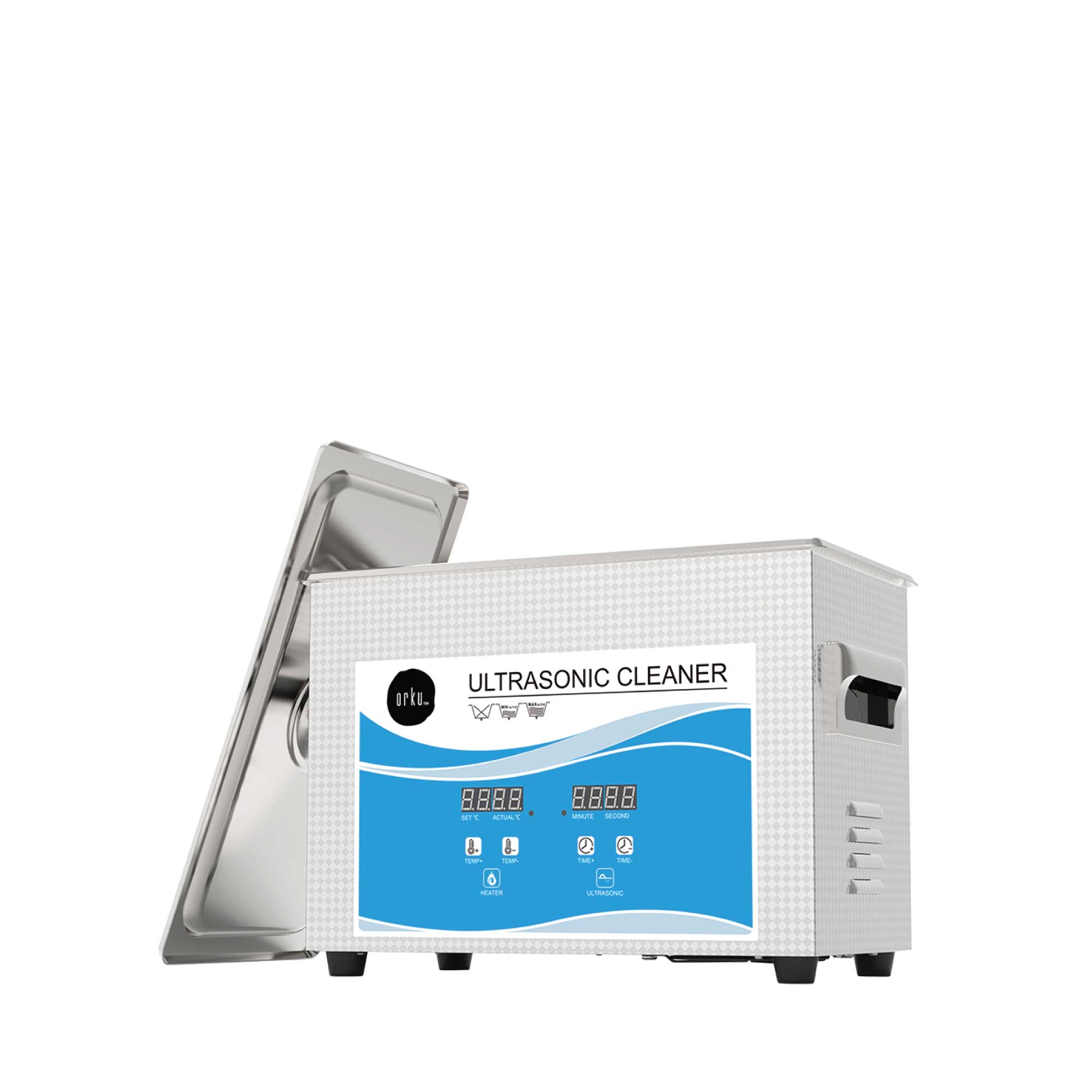

- Stainless steel tight fitting lid with handle to prevent water heat from diffusing.
- Drains with tray

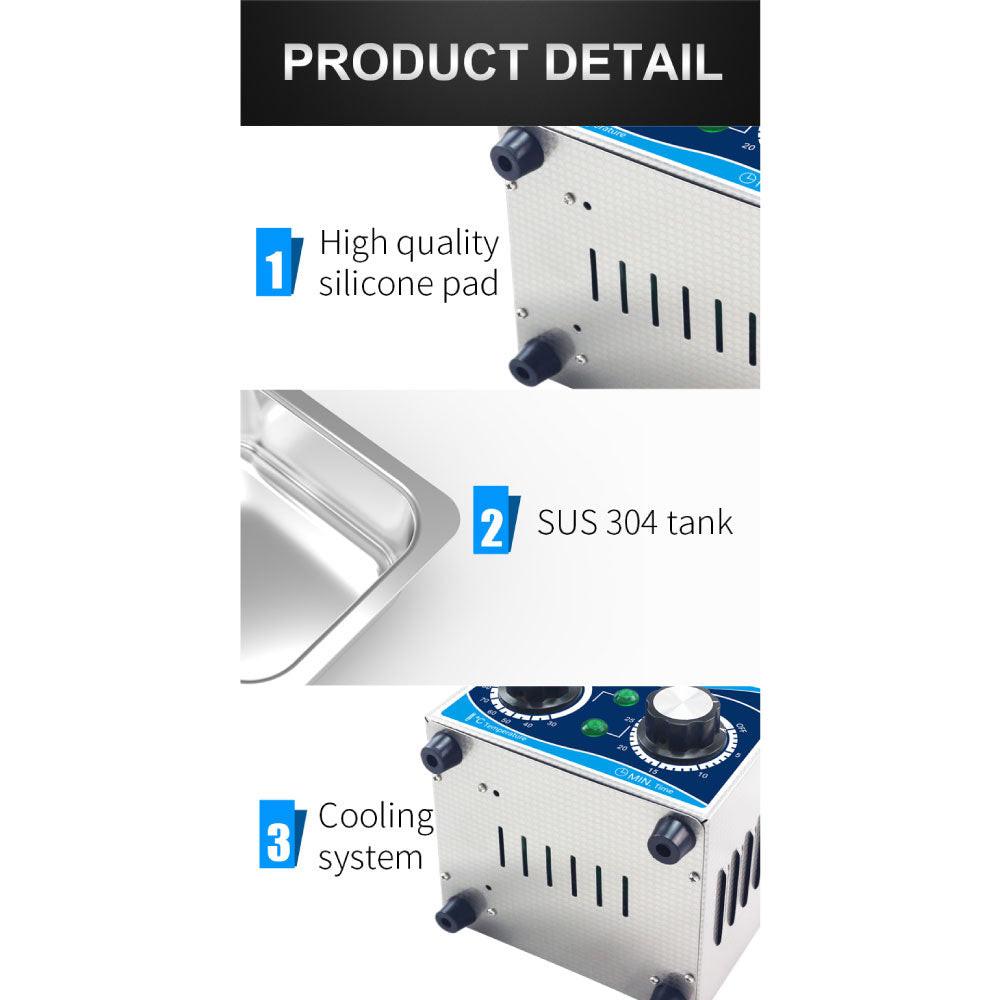

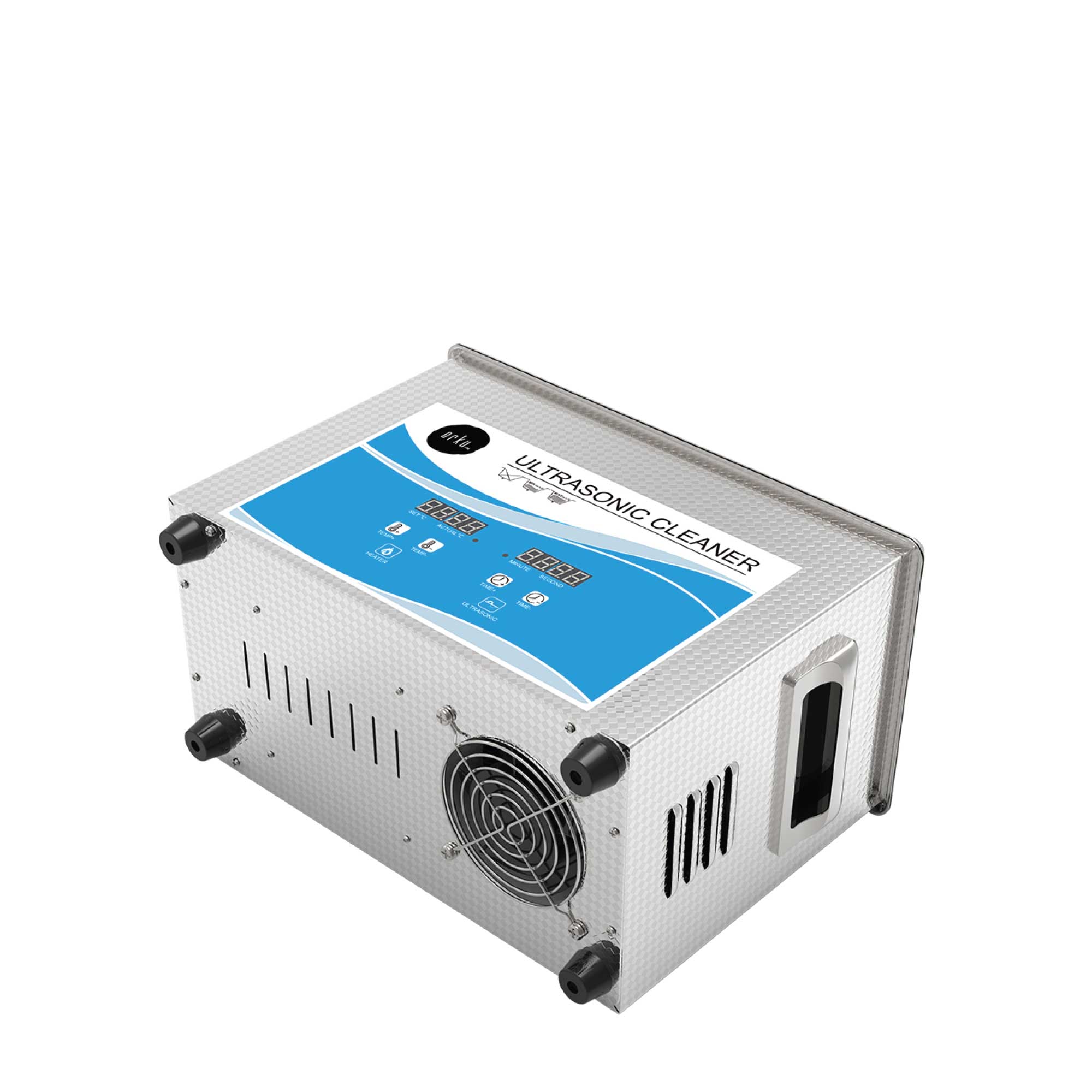

- Skid proof rubber feet
- Use tap water only for general cleaning, you also can add about 5-10 ml of detergent into water to enhance wash result when needed.
Applications:
-
Household supplies: Daily use of items such as gold and silver jewelry, jewelry, head ornaments, brooches, glasses, chains, pens, CDs, shaving knives, combs, dentures, tea tools and milk bottles, nipples, and fruits like grapes, cherries and strawberries. While cleaning the object, it can also be sterilised.
- Electronic appliances: Switch, integrated circuit, electronic circuit board, semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fibre Relay, capacitor, alarm, memory, LCD, Solder, oil stains, turpentine, preservatives, paraffin, oxide, rust on the hard disk components.
- Watches and Jewellery industry: Remove paint, spray paint, compound, oil sludge, dust, oxide layer, polishing paste on jewellery necklaces, jade articles, watches, glasses, etc.
- Chemical and biological Industry: cleaning, disinfection and sterilisation of chemical instrument and laboratory vessel. Assists the accelerate the emulsification, decomposition and extraction.
- Automobile industry: Mainly remove oil, antiseptic, plastic residue, abrasive and graphite on Valve, ignition plug, fuel pump, oil tank, battery electrode, piston ring, machine control disc parts.
- Optical Industry: Remove oil, sweat and ash on the Optical instruments and all kind of lens.
- Aviation industry: Remove oxide, dust, rust, carbon and scale on fuel filter, flow control equipment, Gyroscopes, satellite and aviation hydraulic system
- Electroplating industry: Remove grease, rust, phosphide on the Vernier caliper, fixture, spectacle frame, surgical instruments, dental tools, hardware, watch parts, metal structural parts such as fishing gear accessories
- Printing and textile industry: Remove stains, ink mark, fingerprints, oil and dyestuff on the Rotary machine, spinneret, polyester filter core, textile spindle.
- Power industry: Remove ink, oil, dust, rust on the street lamp, electric power meter, bulb, teletype and insulation head
- Vacuum ion plating products: Mainly cleaning oil stains, fingerprints, dust, oxides on lenses, resin sheet, glass, lighting, arts and crafts before coating
- Medical instruments: Mainly remove blood, gel, fingerprints, residues, proteins on syringes, pipettes, glass containers, pacemakers, esophagoscopes, proctoscope, directional mirrors, artificial organs.
- Precision machinery: Mainly remove abrasives, iron filings, rust inhibitors, composites, cooling oils, polishing, oxides on screws, nozzles, gears, springs, bearings, lead frames, production machinery, full enclosed compressors, heat exchangers, precision valves.
Package Includes:
- 1x 4.5L Ultrasonic Cleaner
- 1x Stainless Steel Tray
- 1x Instruction Manual
