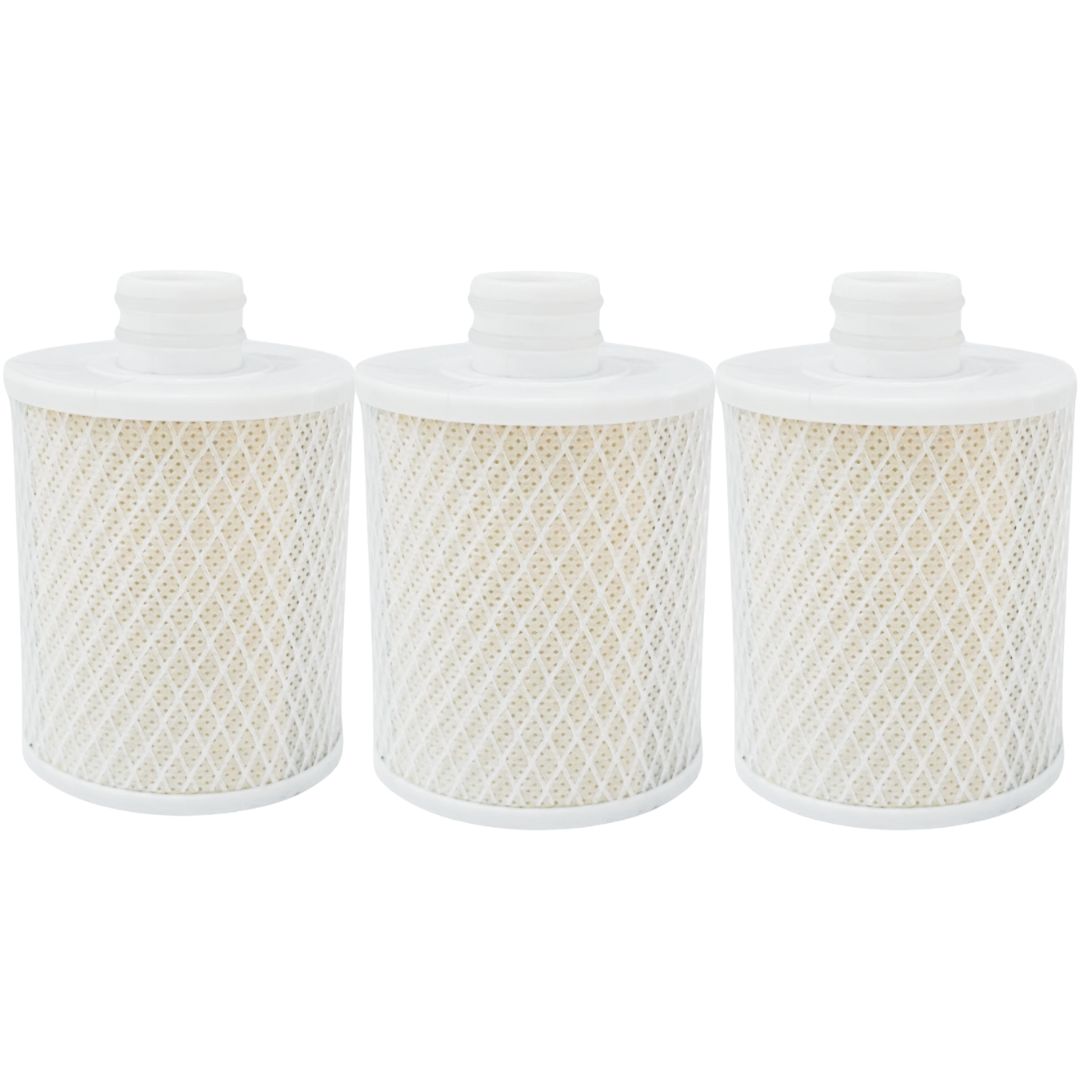

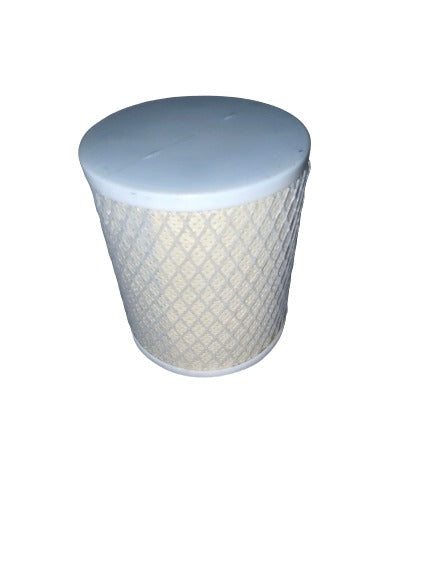

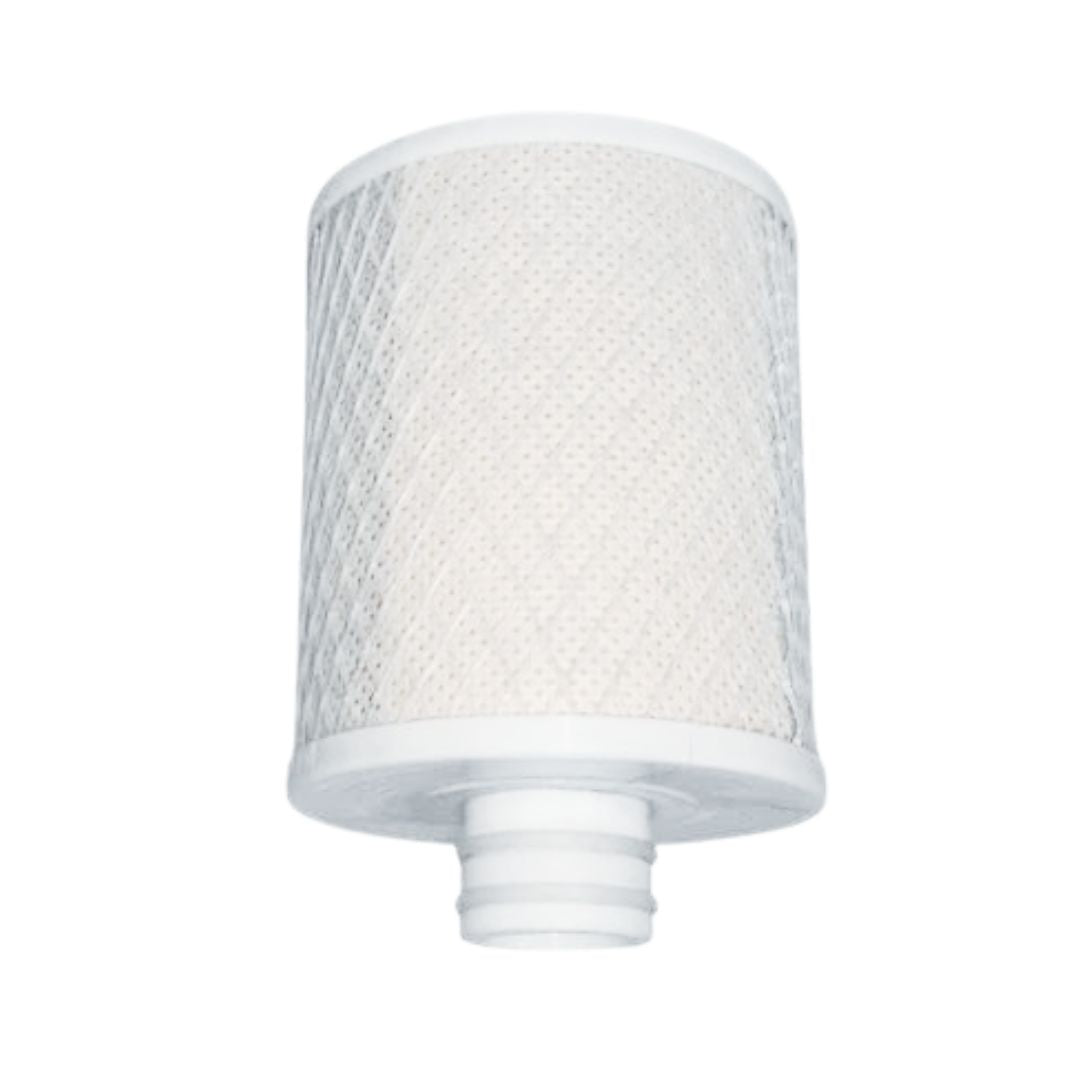

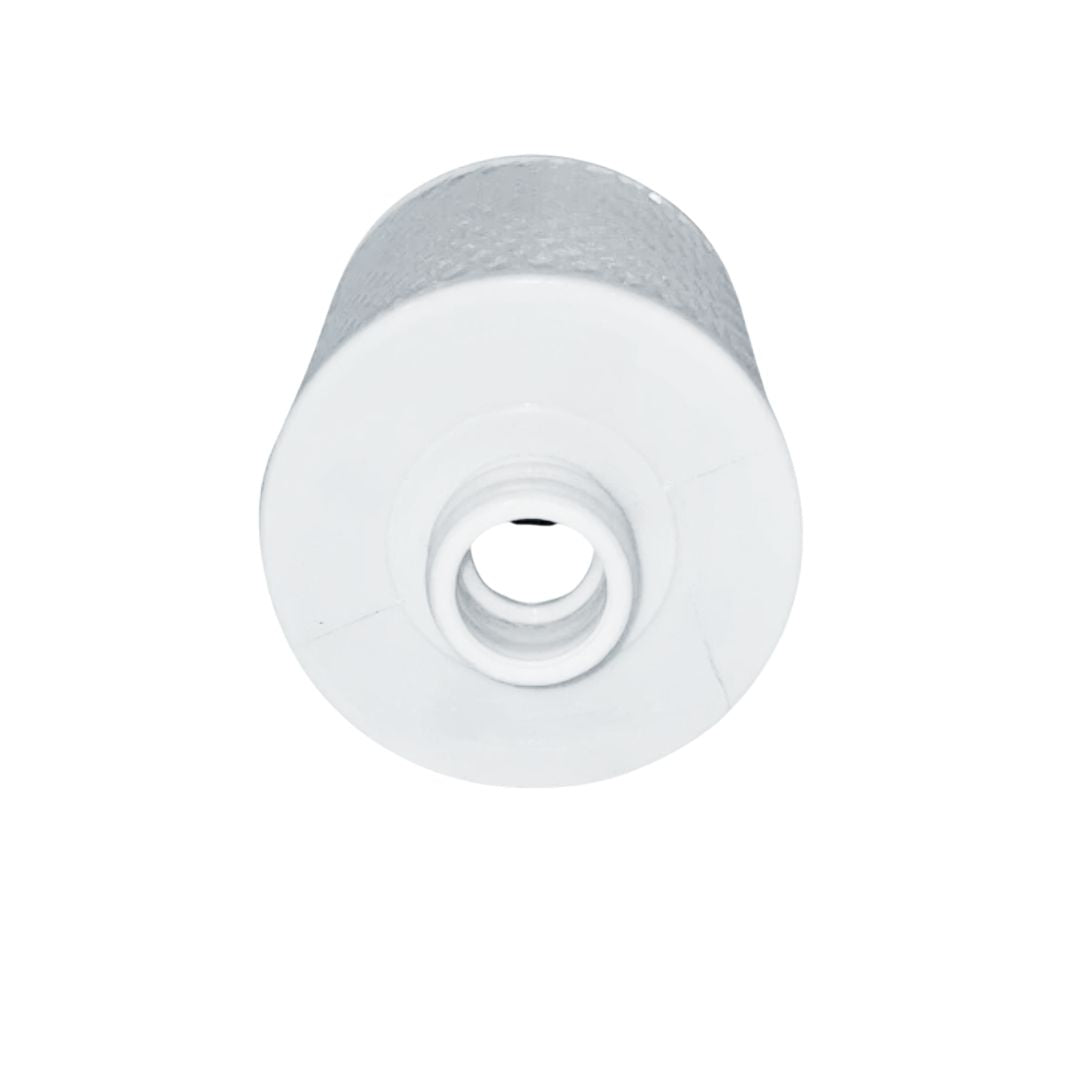

Activated carbon Block Filter for Stainless Steel Aimex Water Purifier
Function
The water quality is enhanced by the Activated Carbon filter, which eliminates suspended particles, germs, parasites, and unpleasant taste.
Test Results
Component Name |
Test Name |
Inlet Value |
Permissible Limit |
Method of Test |
Results |
Carbon Block Filter |
Chlorine Reduction Test |
2.0 PPM |
<0.2 PPM |
IS-3025 Part-25 |
0.1 PPM |
Carbon Block Filter |
Taste |
|
|
IS-3025 Part -8 |
Acceptable |
Procedure
To prepare water with a chlorine concentration of 2.0 parts per million (PPM) using sodium hypochlorite, run 50 liters of water with 2.0 PPM of chlorine through the unit. Then, take a sample of the outlet water and perform a titration with sodium thiosulfate.
Replacement of Activated Carbon Block
- Replace the activated carbon block after approximately 1500 litres or four months, whichever is earlier to ensure the best filtration purification.
- To replace; twist and pull the existing activated carbon block from the top container, then take the new activated carbon block and twist in into connector.
Specification:
- Base Material: Coconut Shell
- Dimensions: OD: 64 mm ID: 36mm Lenght: 73mm
- Block Weight: 120 +/- 20 grams
- pH of Extract Water (Tap water): 7-8.2
- Smell and Taste: No Objectionable smell or test
- Flow rate: 395 ml/min
- Chlorine Reduction: 2.0 ppm to <0.2 ppm - up tp 3000 Ltr
