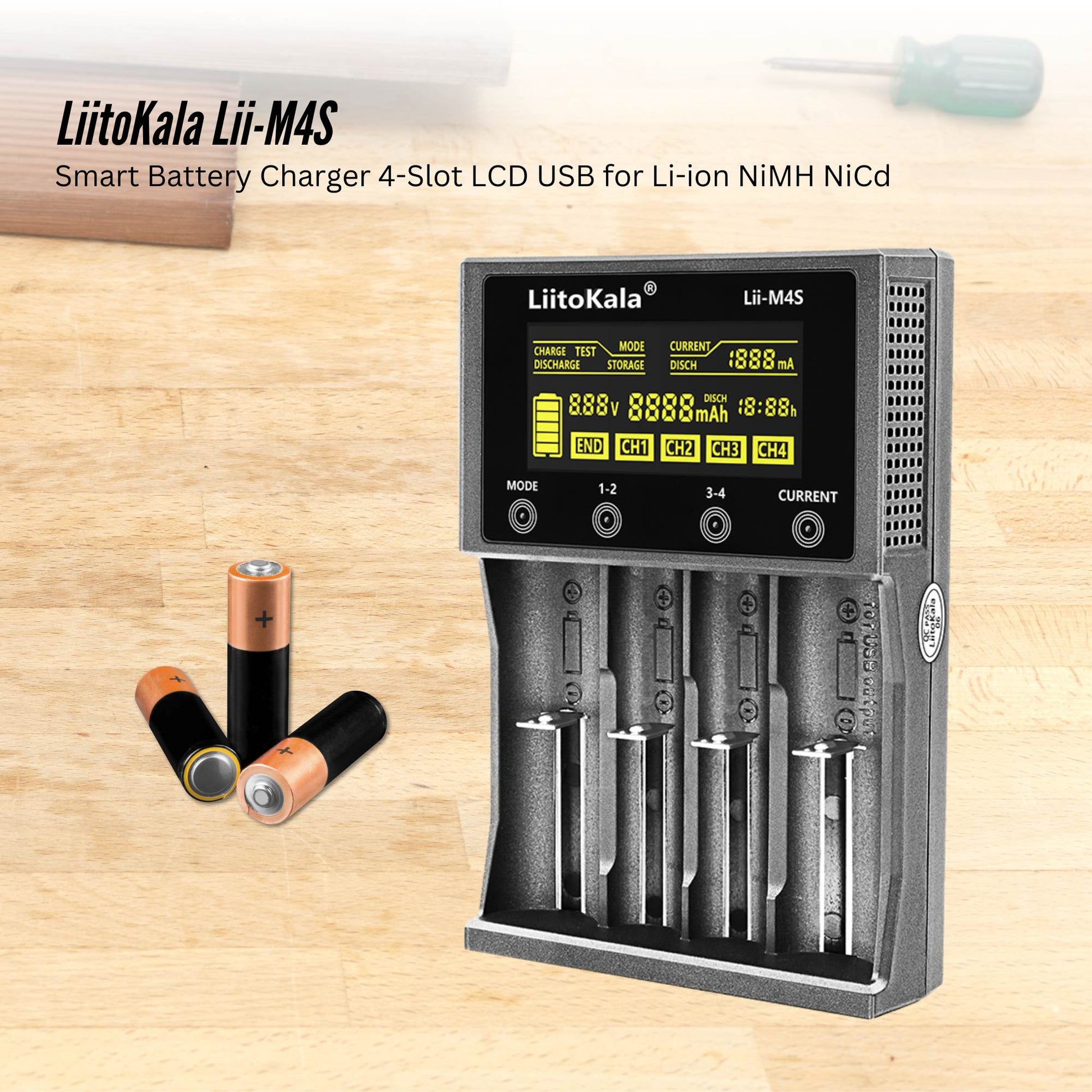

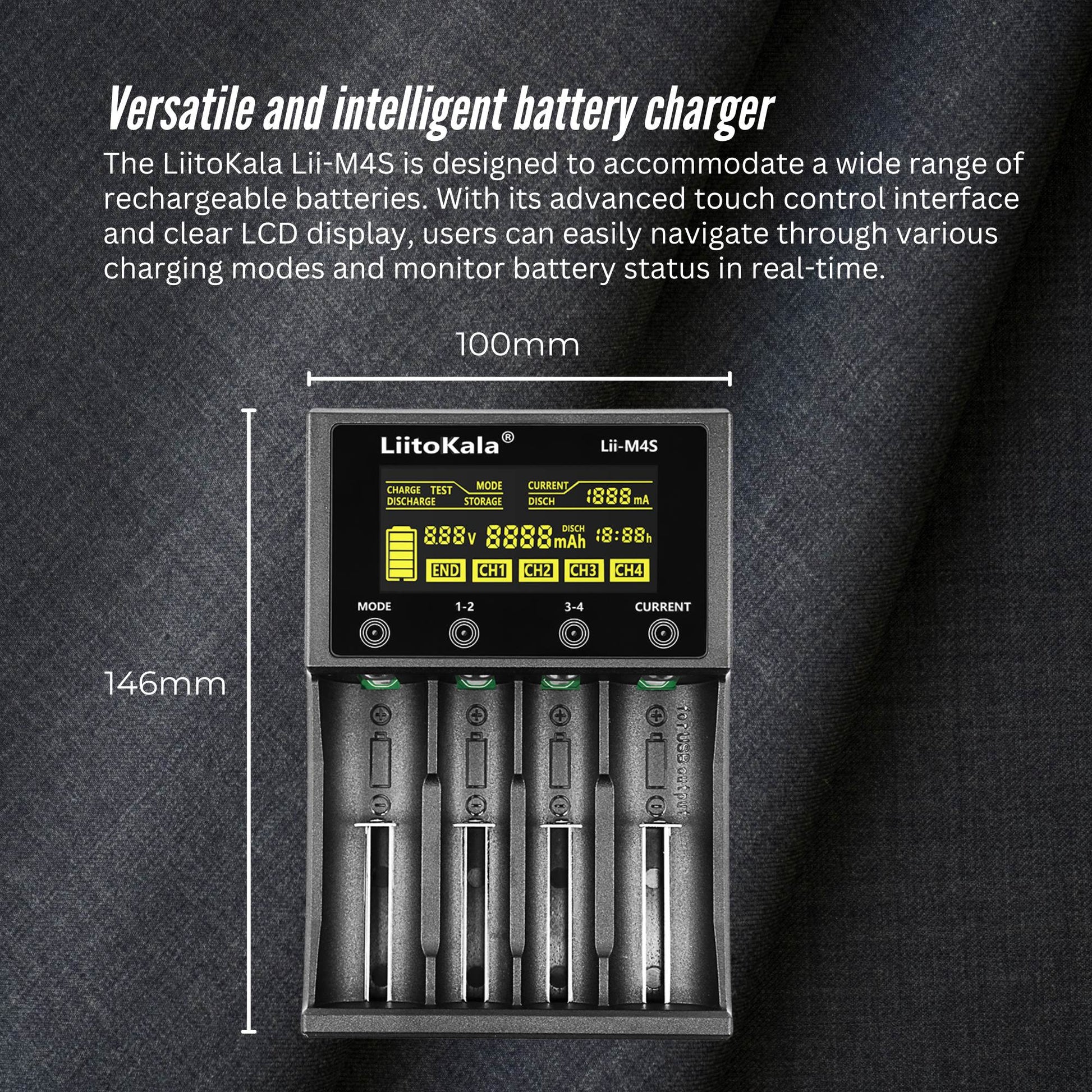

The LiitoKala Lii-M4S is a versatile and intelligent battery charger designed to accommodate a wide range of rechargeable batteries. With its advanced touch control interface and clear LCD display, users can easily navigate through various charging modes and monitor battery status in real-time. The charger supports multiple battery chemistries and sizes, making it an ideal choice for both everyday users and enthusiasts.

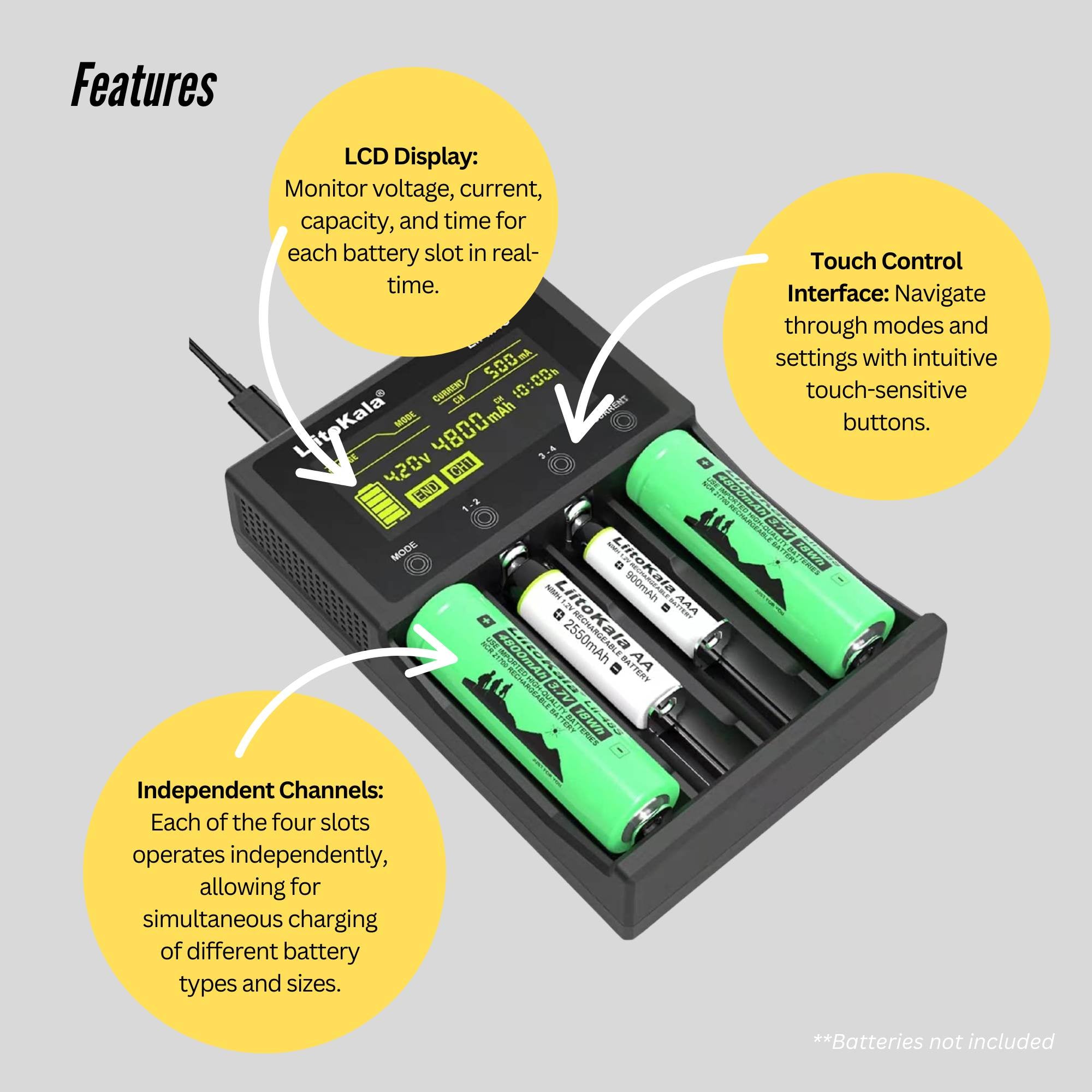

Features:
-
Touch Control Interface: Navigate through modes and settings with intuitive touch-sensitive buttons.
-

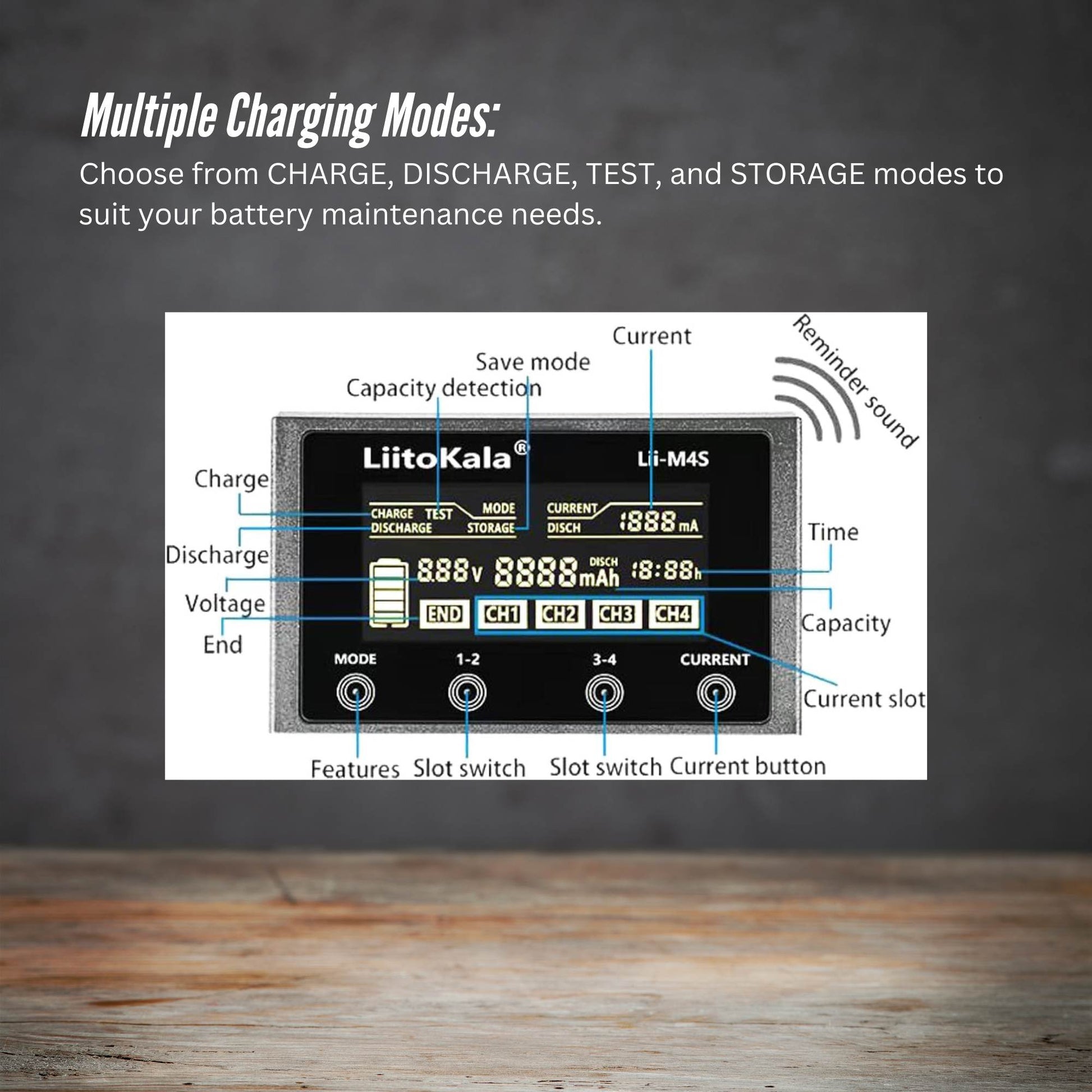

Multiple Charging Modes: Choose from CHARGE, DISCHARGE, TEST, and STORAGE modes to suit your battery maintenance needs.
-
LCD Display: Monitor voltage, current, capacity, and time for each battery slot in real-time.
-
Independent Channels: Each of the four slots operates independently, allowing for simultaneous charging of different battery types and sizes.
-

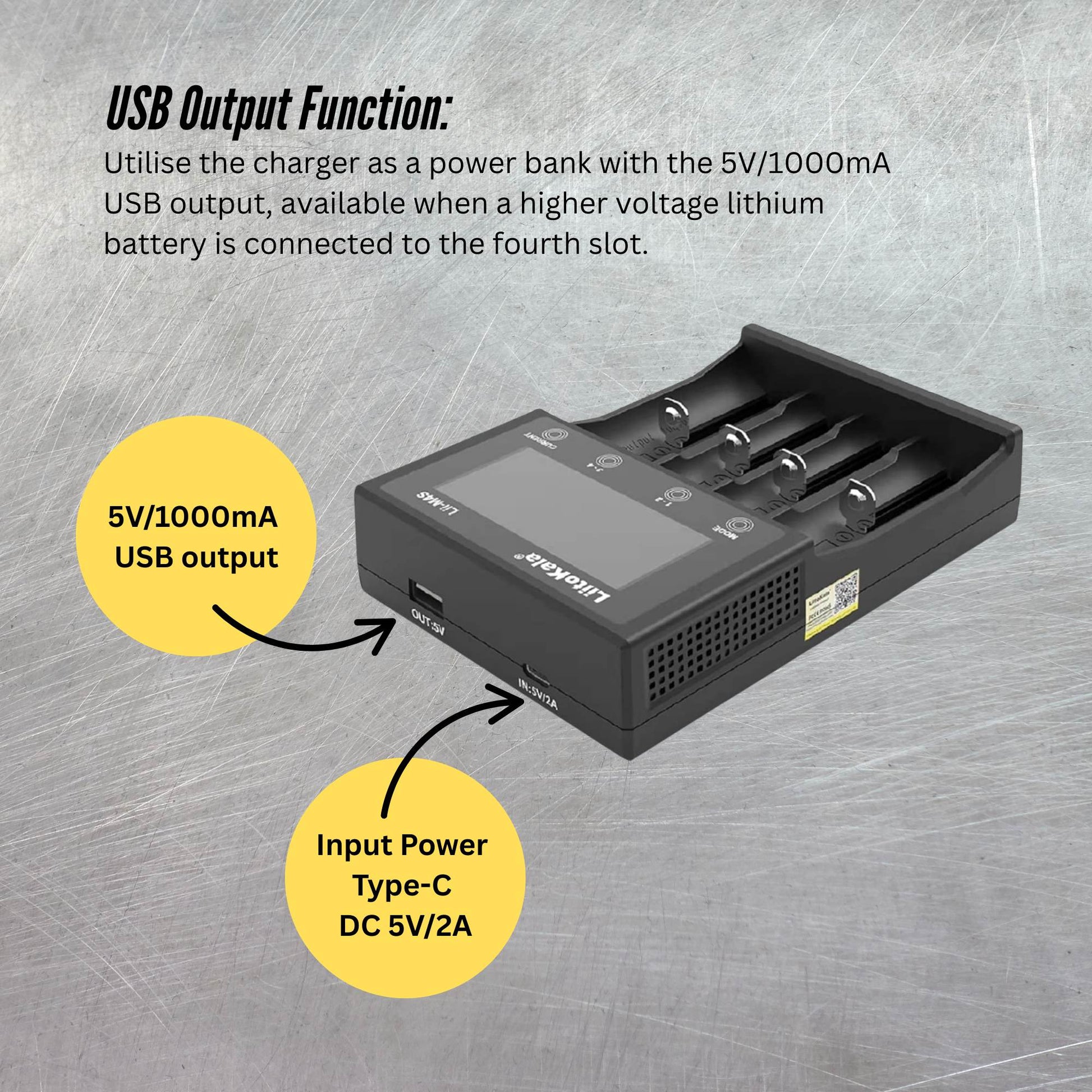

USB Output Function: Utilise the charger as a power bank with the 5V/1000mA USB output, available when a higher voltage lithium battery is connected to the fourth slot.
Specifications:
-
Model: LiitoKala Lii-M4S
-
Input Power: Type-C DC 5V/2A
-
USB Output: 5V---1000mA (effective when a higher voltage lithium battery is connected to the 4th channel)
-
Charging Current:
-
Lithium Batteries: 4.20V at 300mAx4 / 500mAx4 / 700mAx2 / 1000mAx2
-
NiMH Batteries: 1.48V at 300mAx4 / 500mAx4 / 700mAx2 / 1000mAx2
-
-
Discharge Current: 500mA
-
Compatible Battery Types:
-
Li-ion: 26650, 22650, 18650, 18490, 18350, 17670, 17500, 17355, 16340, 14500, 10440
-
Ni-MH/NiCd: A, AA, AAA, SC
-
-

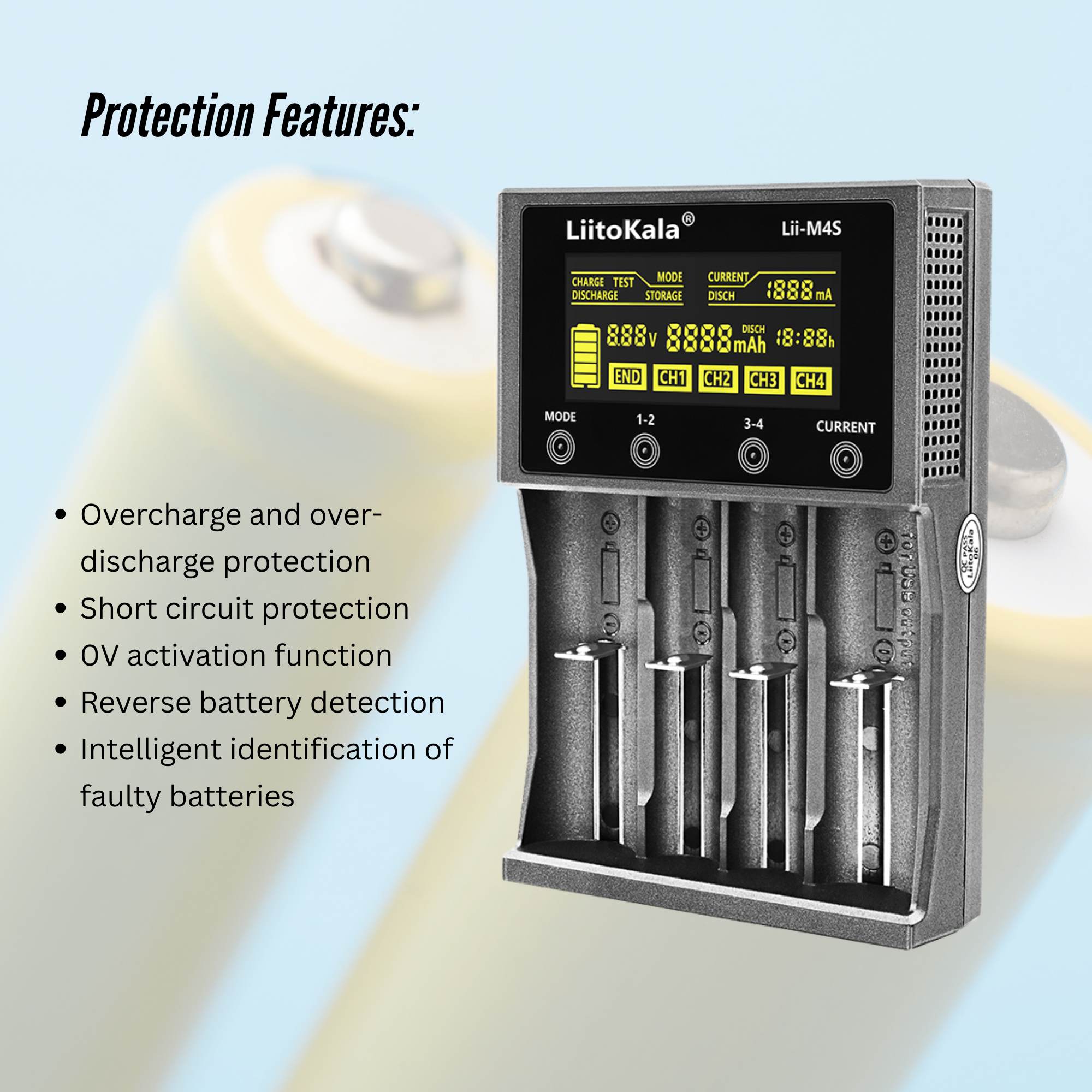

Protection Features:
-
Overcharge and over-discharge protection
-
Short circuit protection
-
0V activation function
-
Reverse battery detection
-
Intelligent identification of faulty batteries
-
-
LCD Display Parameters:
-
Operating Mode (MODE)
-
Voltage (V)
-
Current (mA)
-
Time (h)
-
Capacity (mAh)
-

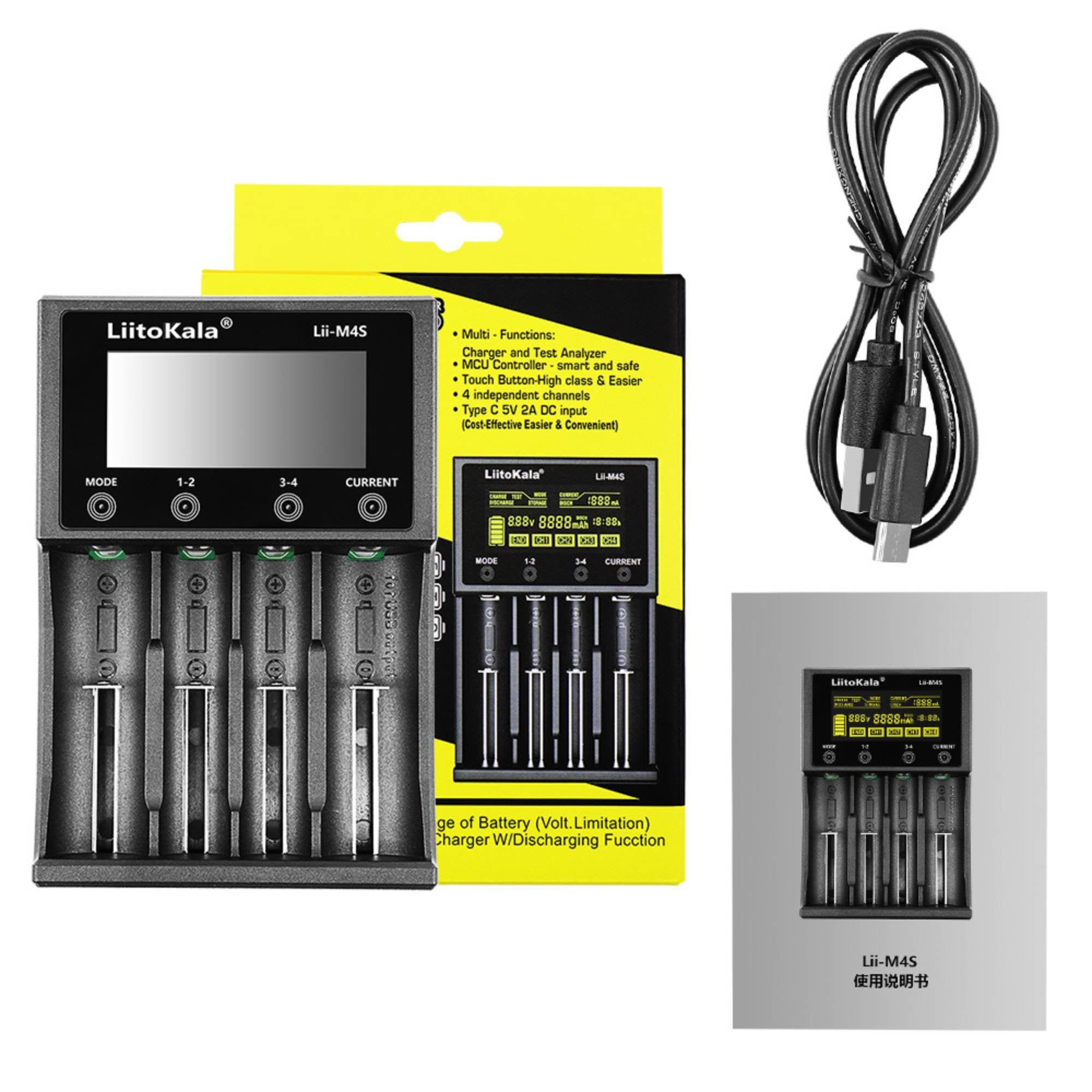

Package Includes:
- 1 x LiitoKala Lii-M4S Charger
- 1 x Type-C Charging Cable
- 1 x User Manual
