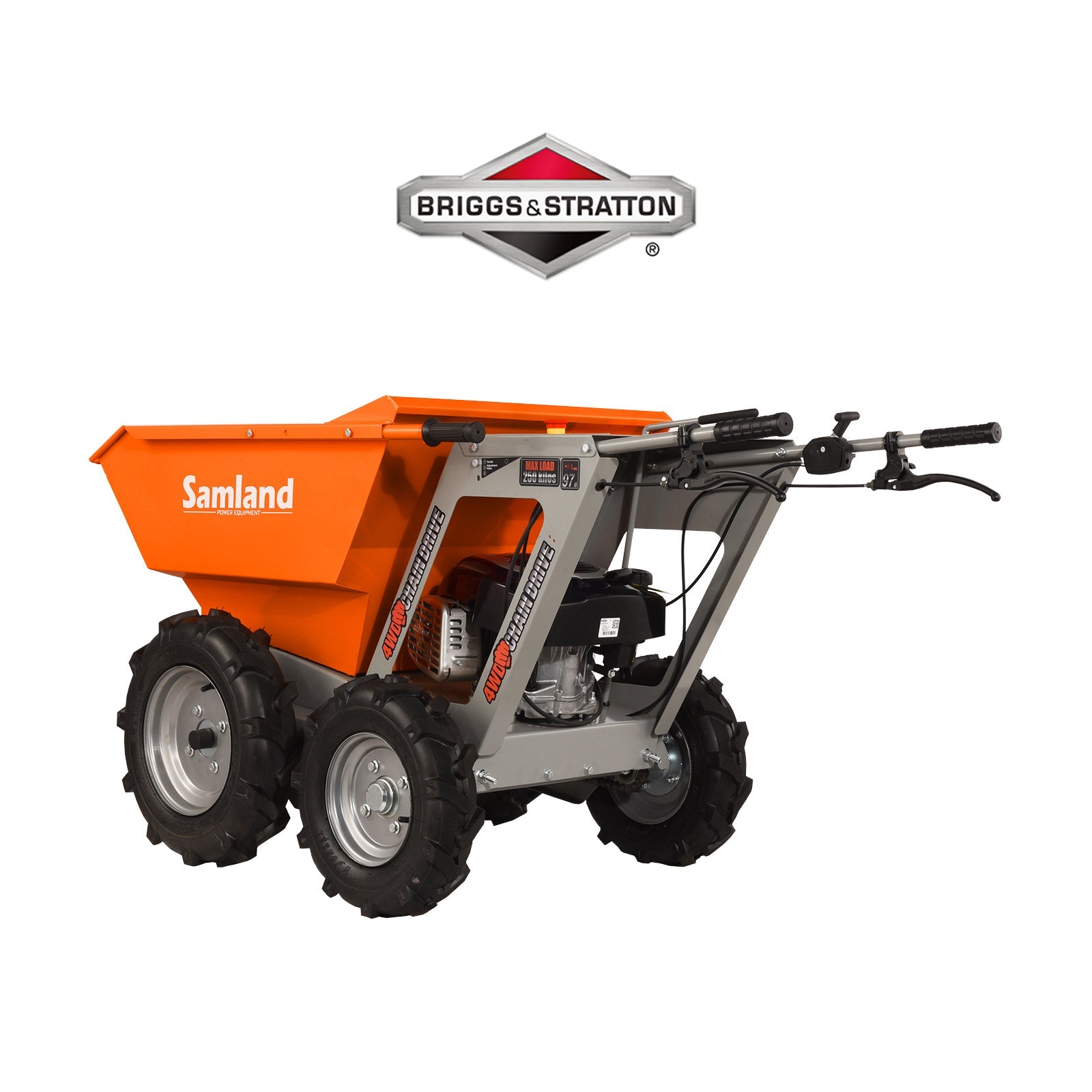

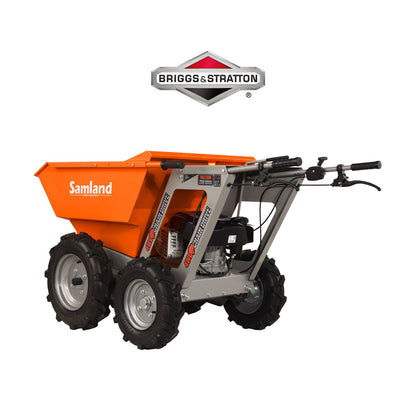

Briggs & Stratton 750 PXi 5.5HP engine 161 cc powered 4x4 wheelbarrow C Samland chain driven mini dumper, can carry a load of 250Kg, which is ideal for working in small spaces other machinery and loaders won't reach. It can increase productivity and its able to carry up to three times more load when compared to the conventional wheelbarrow. It is small enough to fit through doorways and gates, making them ideal for use on building construction sites and for the home handy man/lady. Suitable for use on farms, concreting, bricks, general construction, mining, landscaping and almost any job where a standard wheelbarrow could be used.
This rugged, self-propelled wheelbarrow will help you never tip another load again, and get the job done faster!
?
Tackles Inclines: Four-wheel drive allows the transfer of materials up grades as steep as 30.
Adaptability: The narrow design allows it to fit through doors and around tight corners: areas that a skid steer can't fit.
2 struts reduce the overturning effort.
??
ATTRIBUTES & SPECIFICATION
Drive axle has 4 x forward/ 1 x reverse speed
Forward speed 0.8-5.6kph
Noise rating Less than 80db
Capacity 250kgs and 1.83 m/c
Dimensions: Length-167cm, Width-77cm, Height-86cm
Weight: 126kg, in PALLET packing
?
ENGINE
Briggs & Stratton 750PXi
The 750PXi SERIES? I/C? DOV? engine delivers breakthrough performance driven by technology that makes a difference you can SEE, FEEL and HEAR.
The patented Direct Overhead Valve (DOV?) engine delivers more torque, improved sound quality, and less noise and vibration than competitive engines in the same class. The Cast Iron cylinder sleeve is designed to significantly enhance the longevity of the engine for those who use their equipment day-in and day-out.
Engine Technology: Single cylinder, 4-stroke, 5.5HP, air-cooled, DOV? (Direct Overhead Valve)
Gross Torque* (Nm) @ 2'600 rpm: 9,49
Displacement (cc) 161
Cylinder: Cast Iron sleeve
Bore (mm) 64,0
Stroke (mm) 50,0
Fuel Tank Capacity (l) 1,0
Oil Capacity (l) 0,6
Dry Weight (kg) 11,1
Documentation supplied with this article:
Quick Intallation Guide
Quick Start Guide
Operators Manual
Optional Attachments (Not included)
? ? ?2" tow ball and hitch - can be fitted to the front allowing the barrow to push/pull and move boats, caravans, trailers and other equipment within the load capacity of the barrow.
? ? ?Bucket extender - increase loading volume
