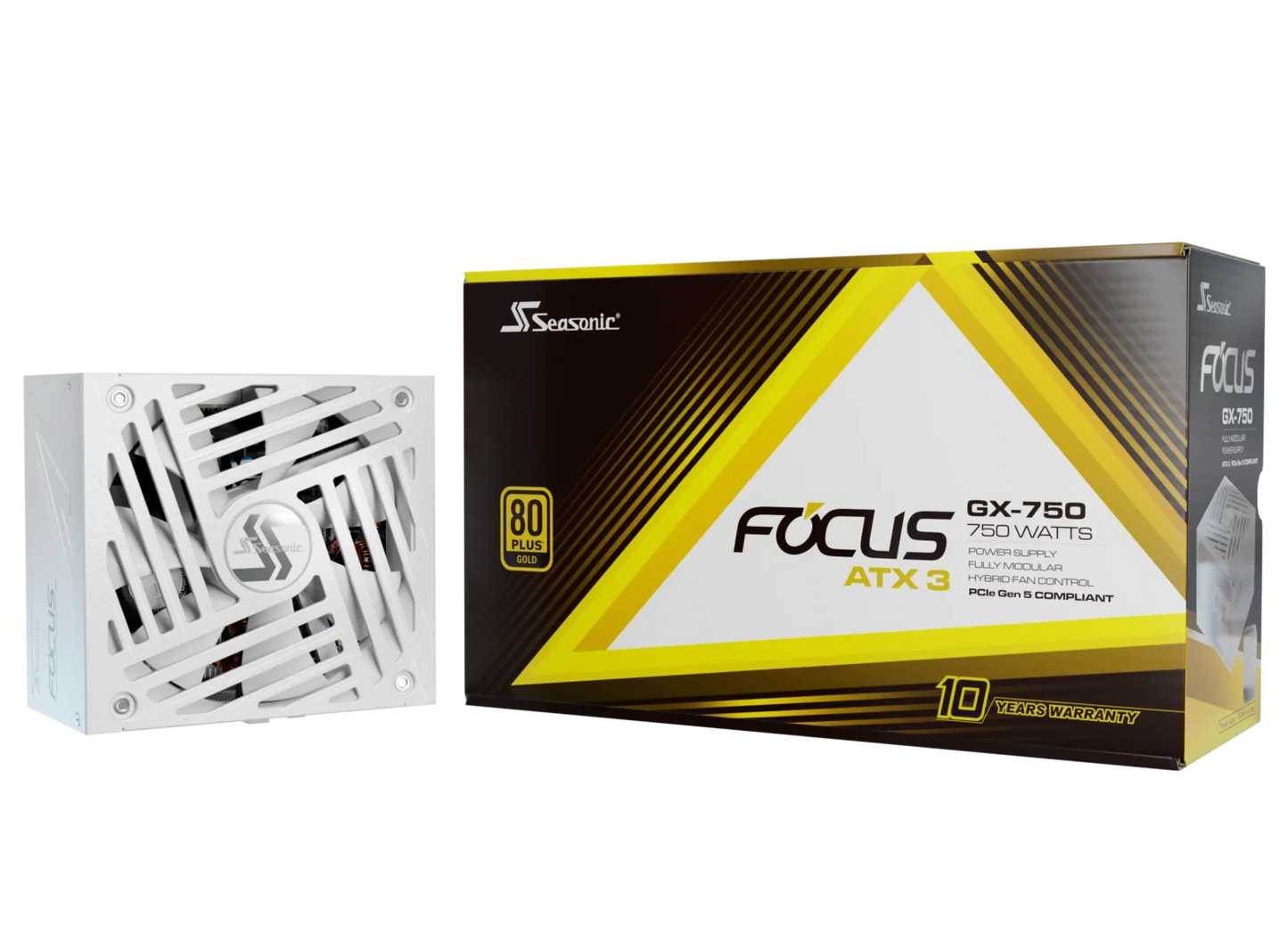

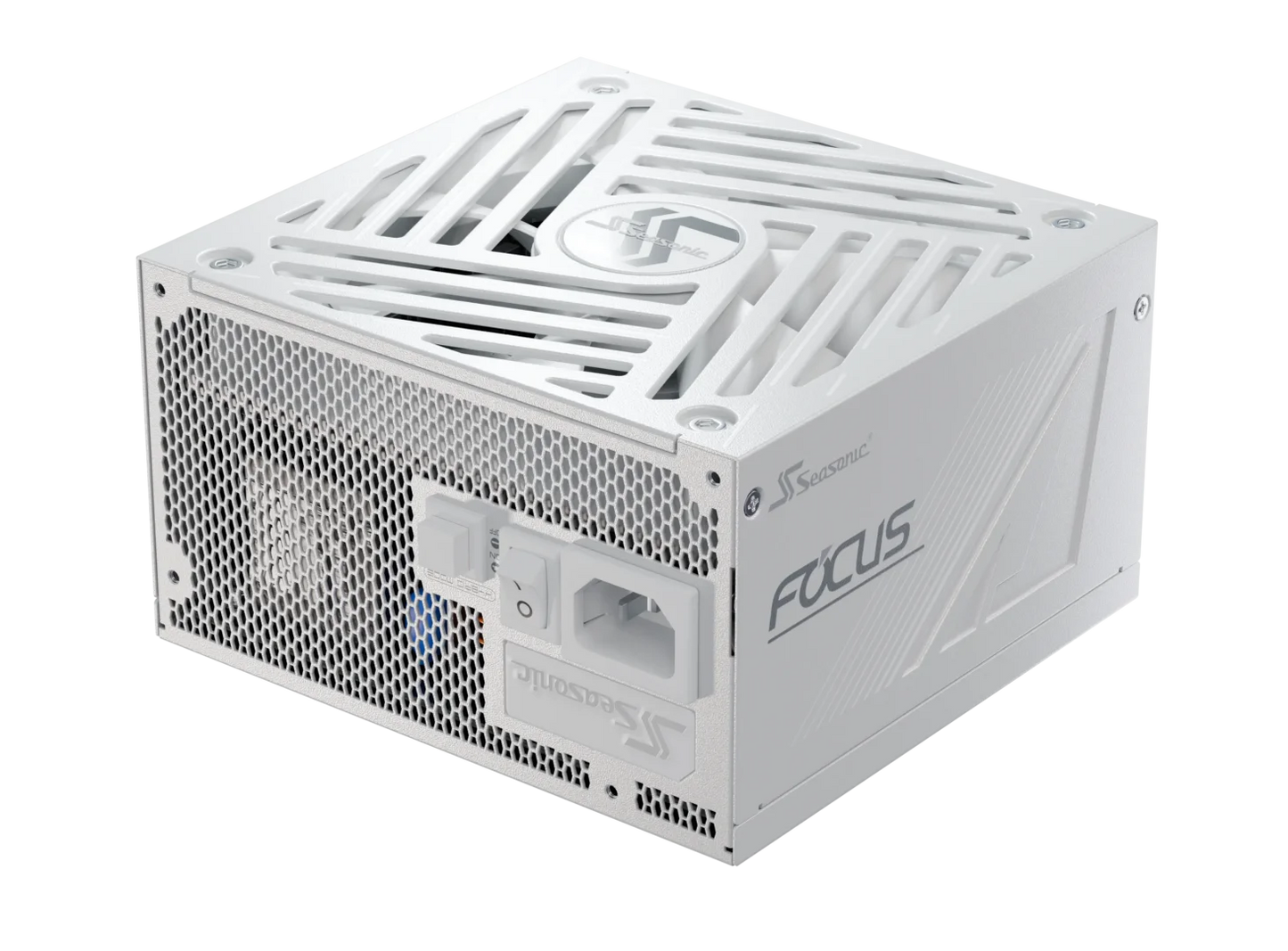

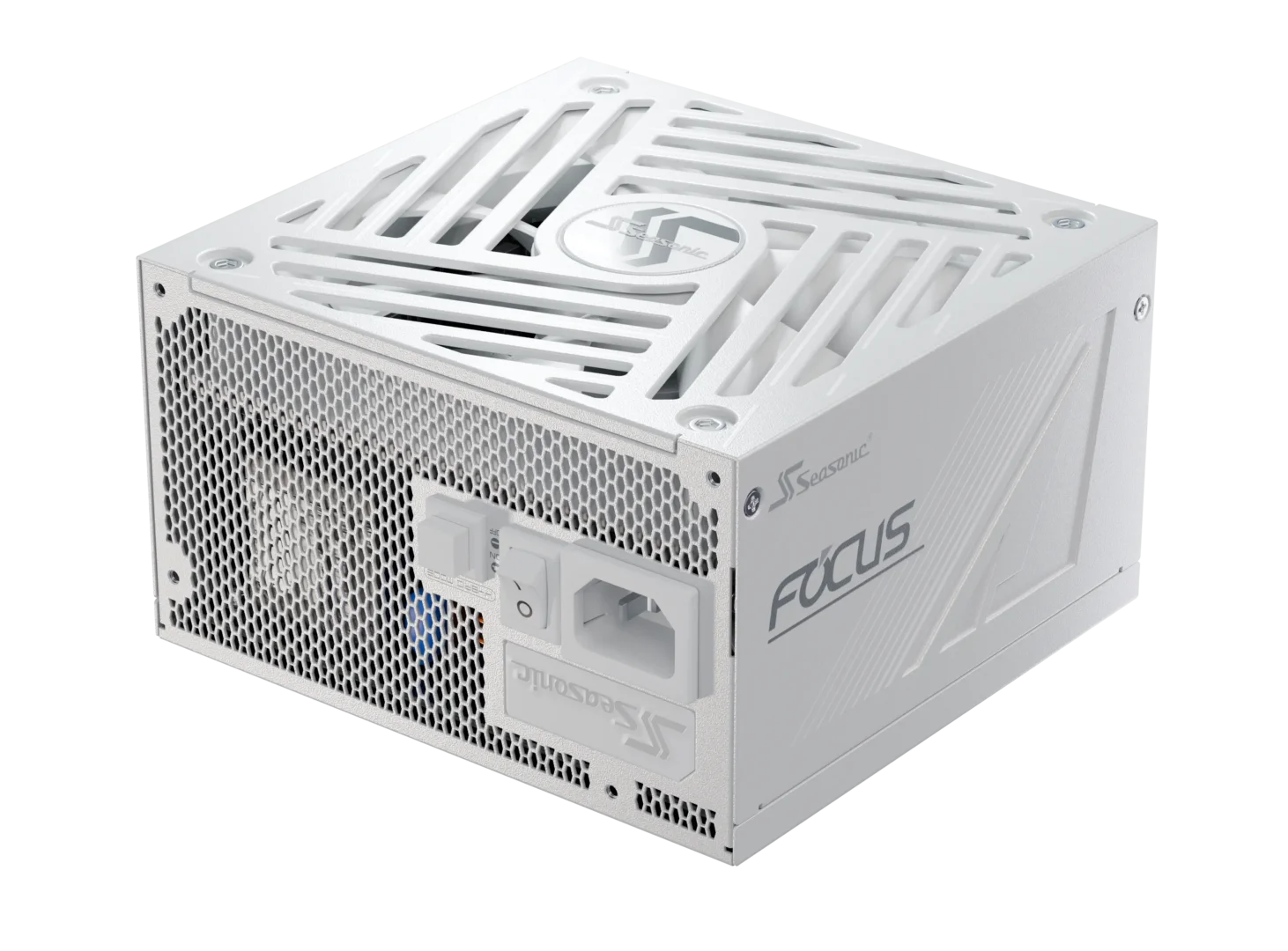

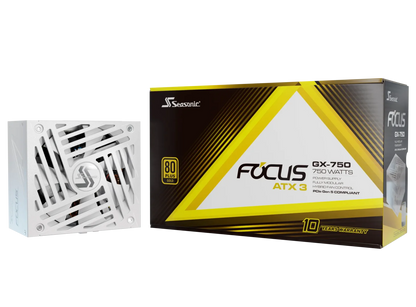

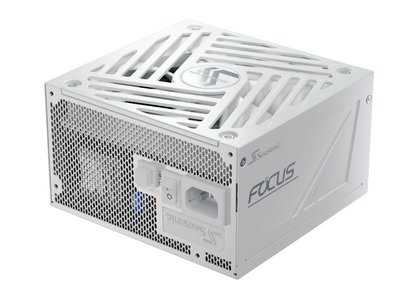

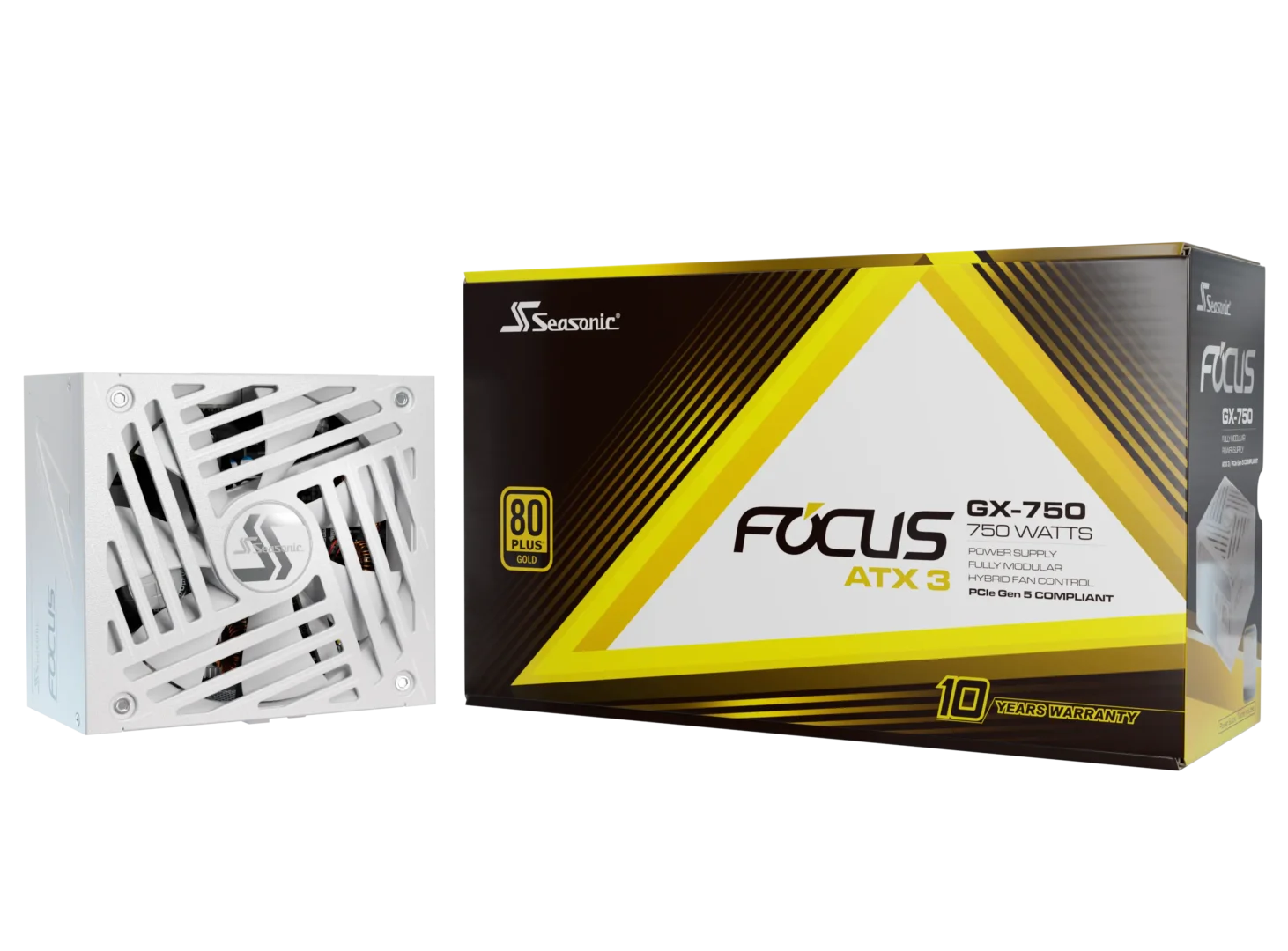

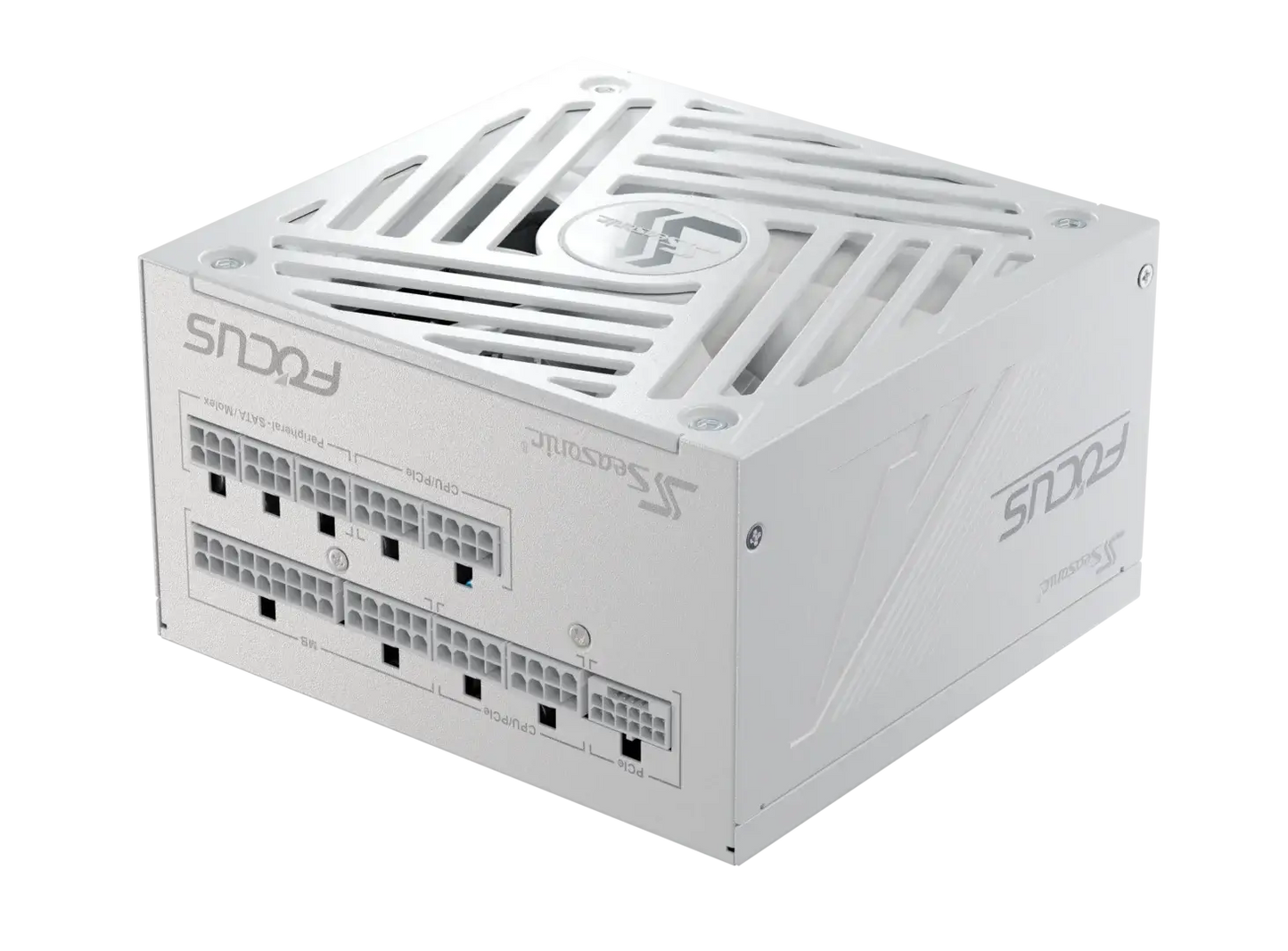

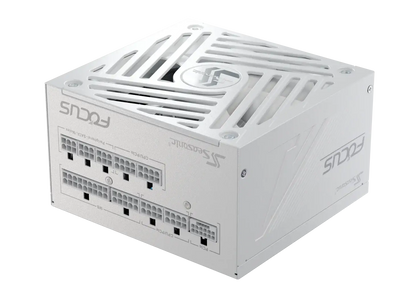

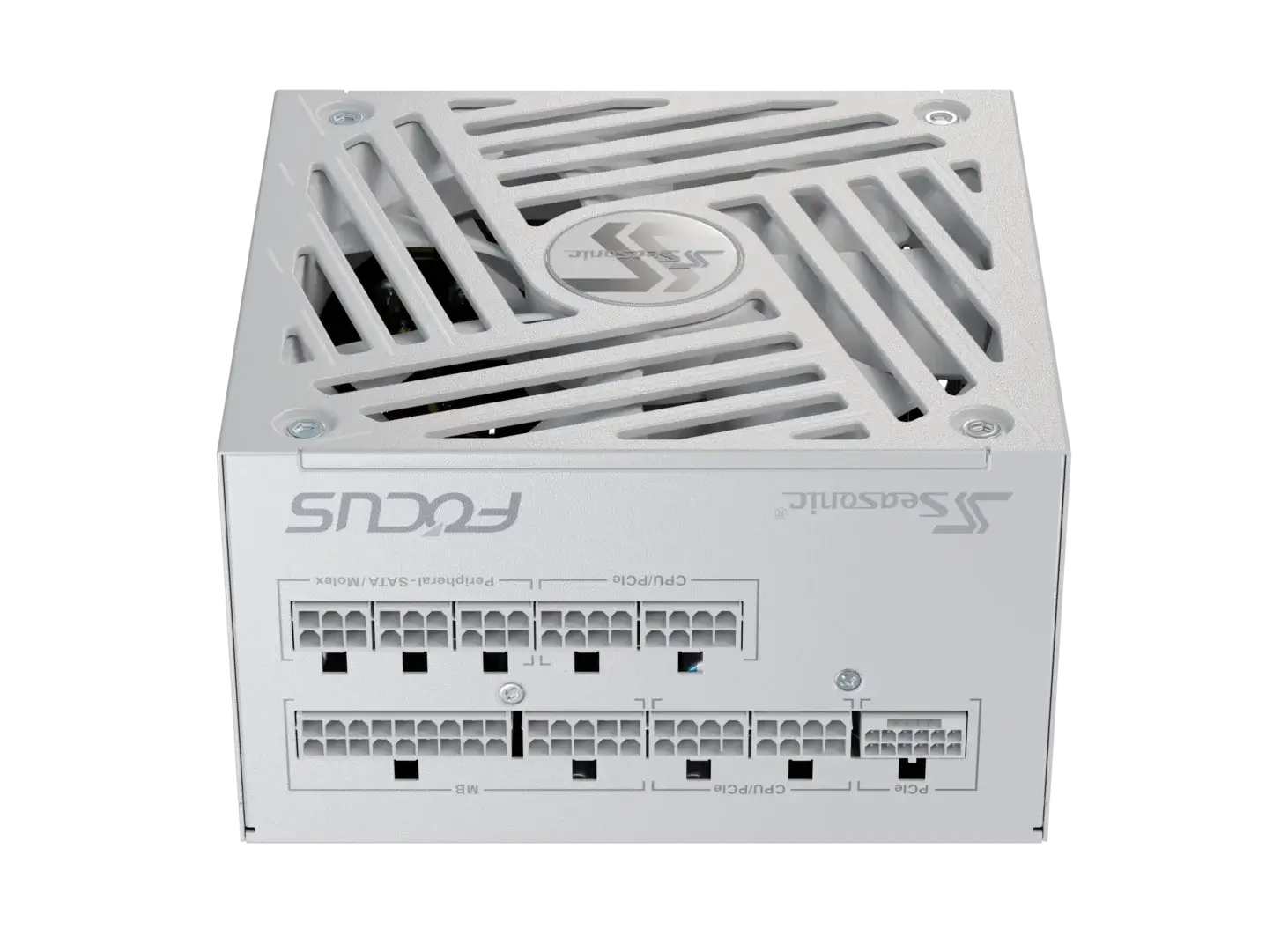

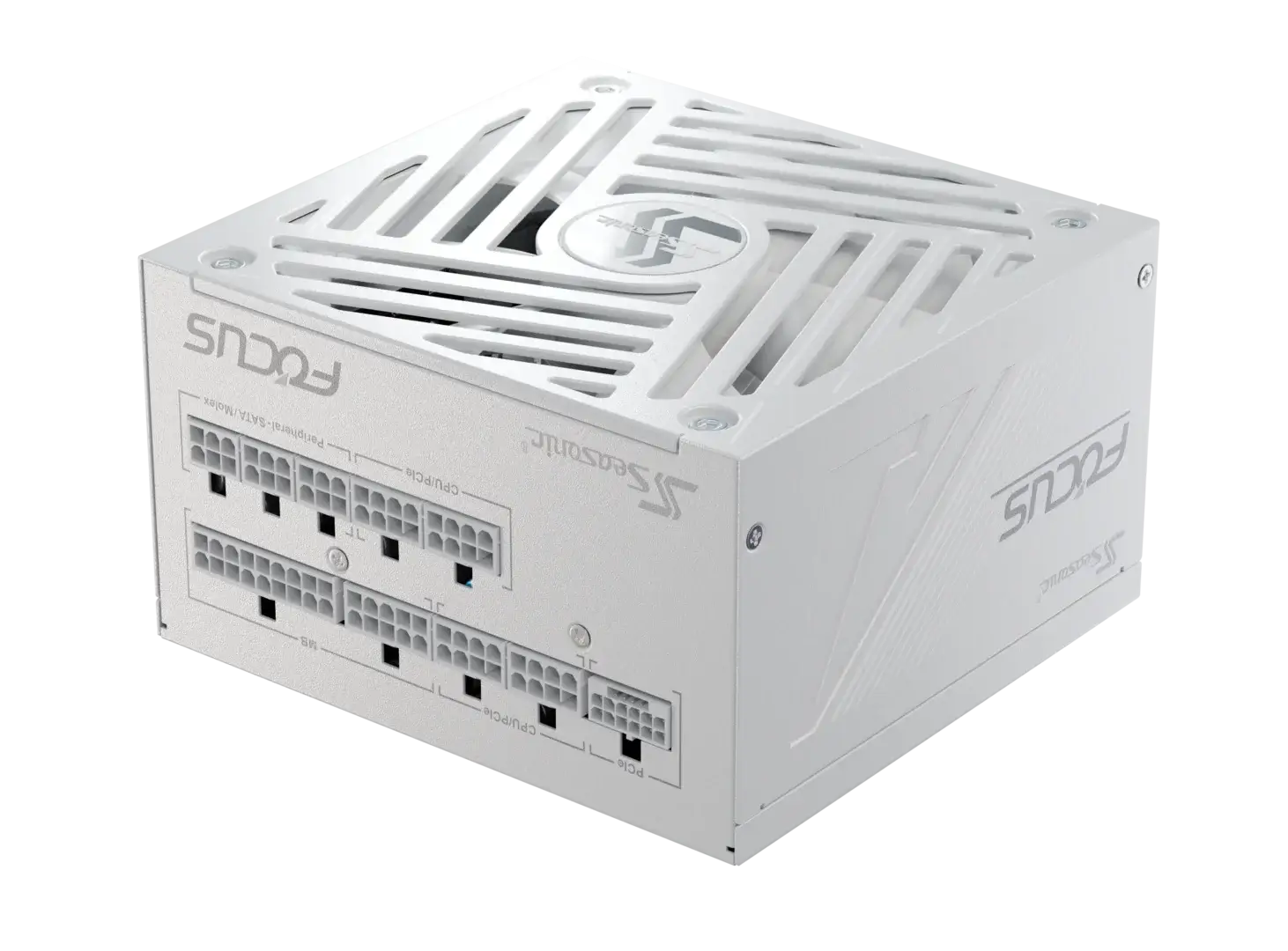

FOCUS GX White ATX 3.1
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX White Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2 6 cable, our new OptiSink technology and a stunning white finish. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market.
SPECIFICATIONS
Technical Specifications | ||
80PLUS |
Gold |
|
Cybenetics Efficiency Level |
Platinum |
|
Cybenetics Noise Level |
A- |
|
Form Factor |
ATX/EPS |
|
Fan Information |
Fan Size |
135 mm |
Fan Control |
Digital Hybrid Fan Control |
|
Fan Bearing |
Fluid Dynamic Bearing |
|
Life Expectancy |
50,000 hours at 40 C, 15 % - 65 % RH |
|
Cable Information |
Modularity |
Fully Modular |
Cable type |
Individual White Cables with Braided Pattern |
|
Electrical Features |
Operating Temperature |
0 - 50 C |
MTBF @ 25 C, excl. fan |
100,000 hours |
|
AC Input |
Full Range |
|
Protection |
OCP, OPP, OTP, OVP, SCP, UVP |
|
Safety and Environmental |
Safety and EMC |
CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC |
Environmental Compliance |
Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
|
Warranty |
10 Years |
Power Output | ||||||
AC Input |
Voltage: 100 V - 240 V |
|||||
Current: 10 - 5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output |
Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
Maximum Power |
20 A |
20 A |
62 A |
0.3 A |
3 A |
|
100 W |
744 W |
3.6 W |
15 W |
|||
Total continuous power |
750 W |
