CORE GX ATX 3 (2024)

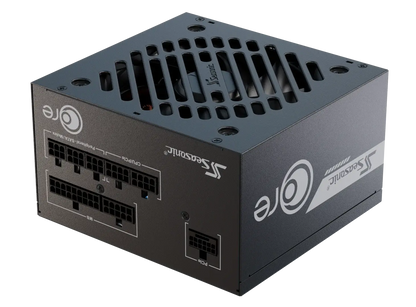

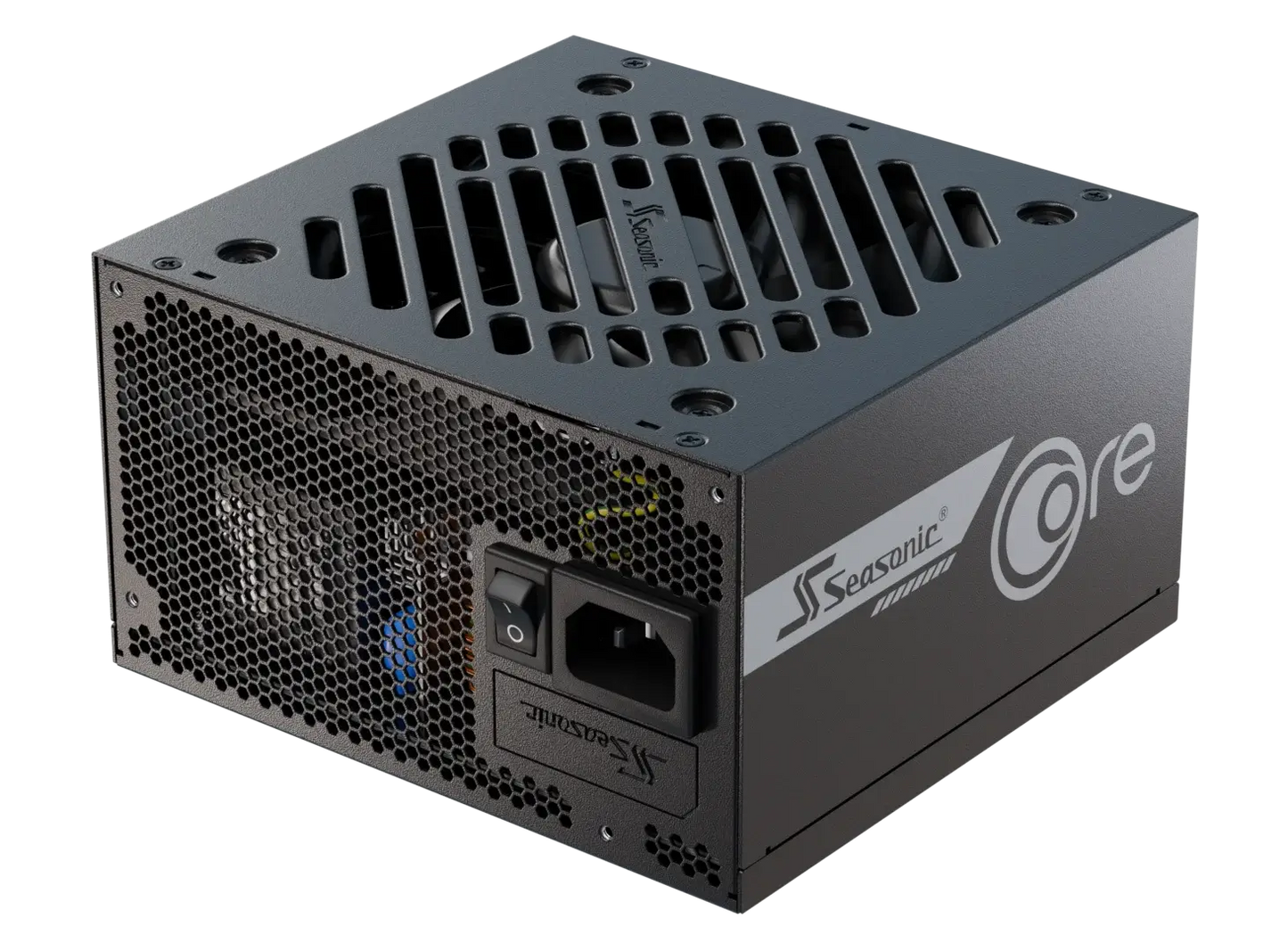

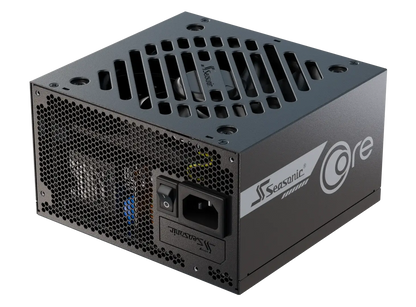

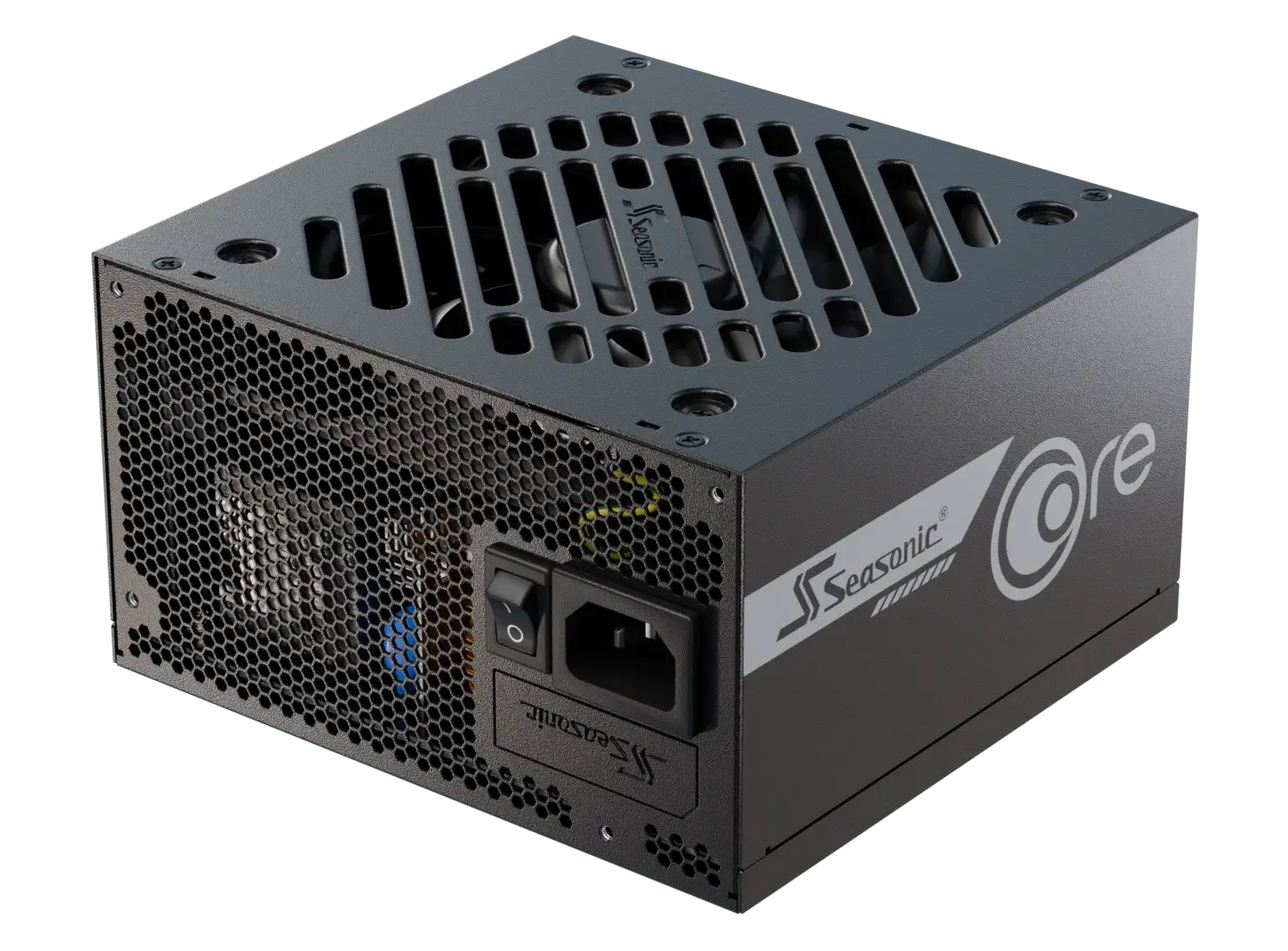

The updated Seasonic CORE GX ATX3 series complies with the latest ATX3 standards and includes four output ranges from 1000W to 650W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS Gold certified Seasonic's Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm fluid dynamic bearing fan is combined with Seasonic's Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level.
SPECIFICATIONS
Technical Specifications | ||
80PLUS |
Gold |
|
Cybenetics Efficiency Level |
TBA |
|
Cybenetics Noise Level |
TBA |
|
Form Factor |
ATX/EPS |
|
Fan Information |
Fan Size |
120 mm |
Fan Control |
Smart and Silent Fan Control |
|
Fan Bearing |
Fluid Dynamic Bearing |
|
Life Expectancy |
25,000 hours at 40 C, 15 % 65 % RH |
|
Cable Information |

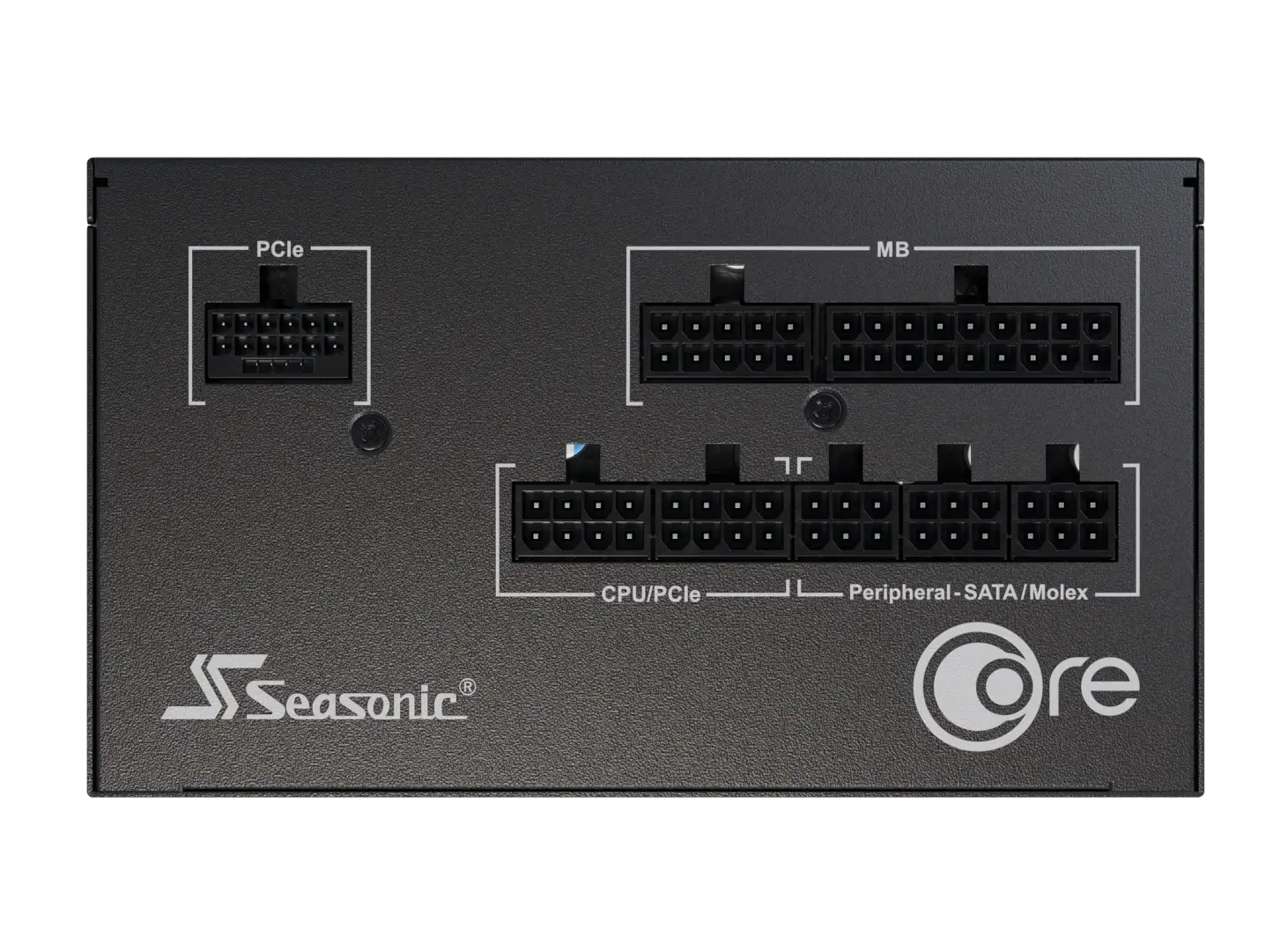

Modularity |
Fully Modular |
Cable type |
Individual Black Cables with Braided Pattern |
|
Electrical Features |
Operating Temperature |
0 - 50 C (derating from 100% to 80% from 40 C to 50 C linearly) |
MTBF @ 25 C, excl. fan |
100,000 hours |
|
AC Input |
Full Range |
|
Protection |
OPP, OCP, OTP, OVP, SCP, UVP |
|
Safety and Environmental |
Safety and EMC |
BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA |
Environmental Compliance |
Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
|
Warranty |
7 Years |
Power Output | ||||||
AC Input |
Voltage: 100 V - 240 V |
|||||
Current: 9 - 4.5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output |
Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
Maximum Power |
20 A |
20 A |
54 A |
0.3 A |
3 A |
|
100 W |
648 W |
3.6 W |
15 W |
|||
Total continuous power |
650 W |
