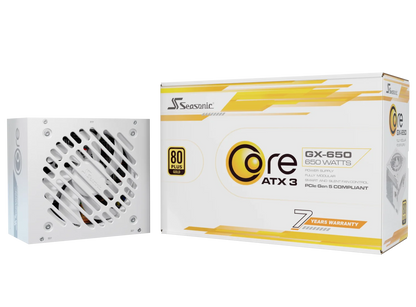

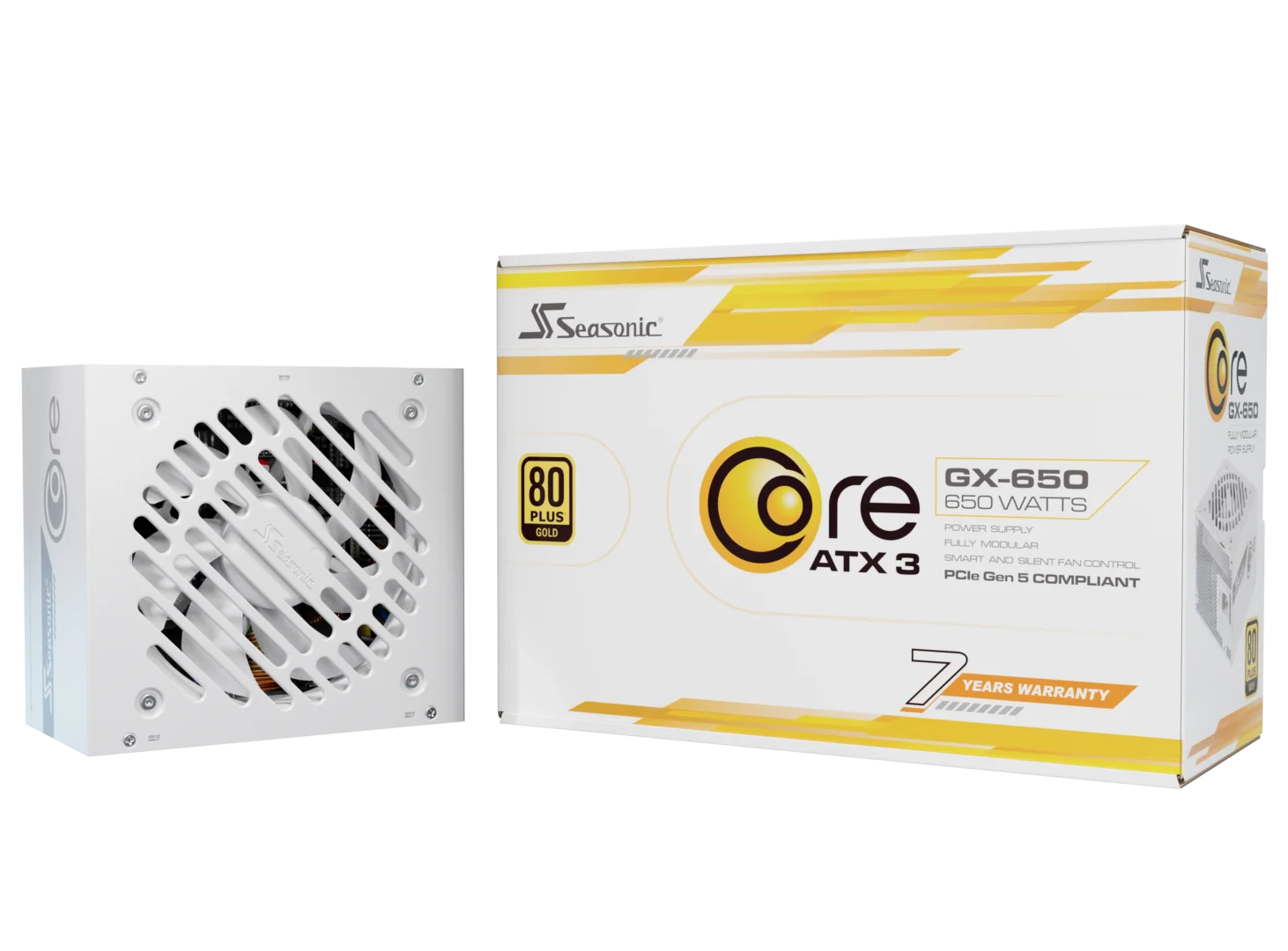

CORE GX White ATX 3 (2024)
The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS Gold certified Seasonic's Core GX White line is a fully modular design equipped with white cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic's Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic's 7-year worldwide manufacturer's warranty.
SPECIFICATIONS
Technical Specifications | ||
80PLUS |
Gold |
|
Cybenetics Efficiency Level |
TBA |
|
Cybenetics Noise Level |
TBA |
|
Form Factor |
ATX/EPS |
|
Fan Information |
Fan Size |

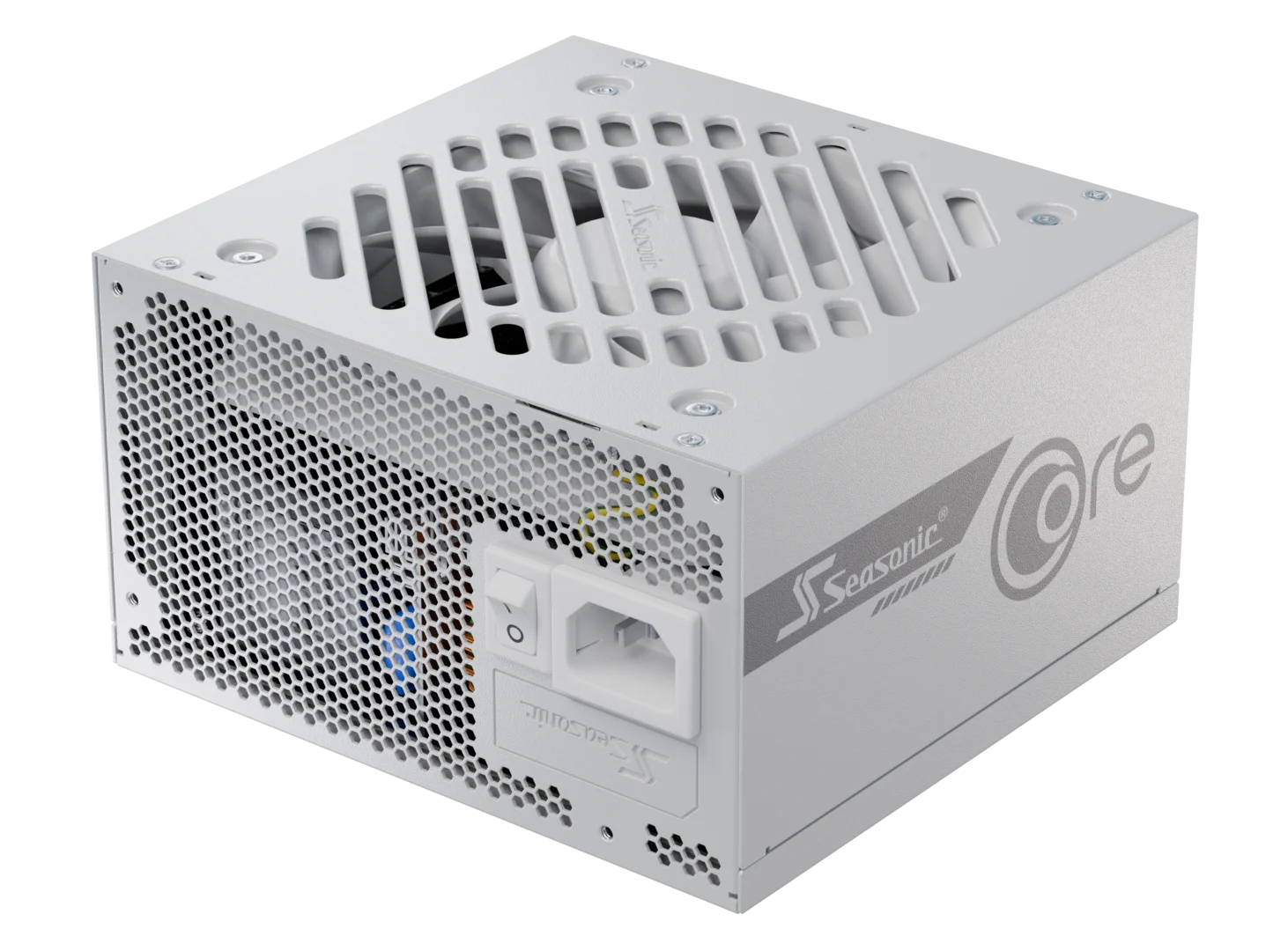

120 mm |
Fan Control |
Smart and Silent Fan Control |
|
Fan Bearing |
Hydro Dynamic Bearing |
|
Life Expectancy |
25,000 hours at 40 C, 15 % 65 % RH |
|
Cable Information |

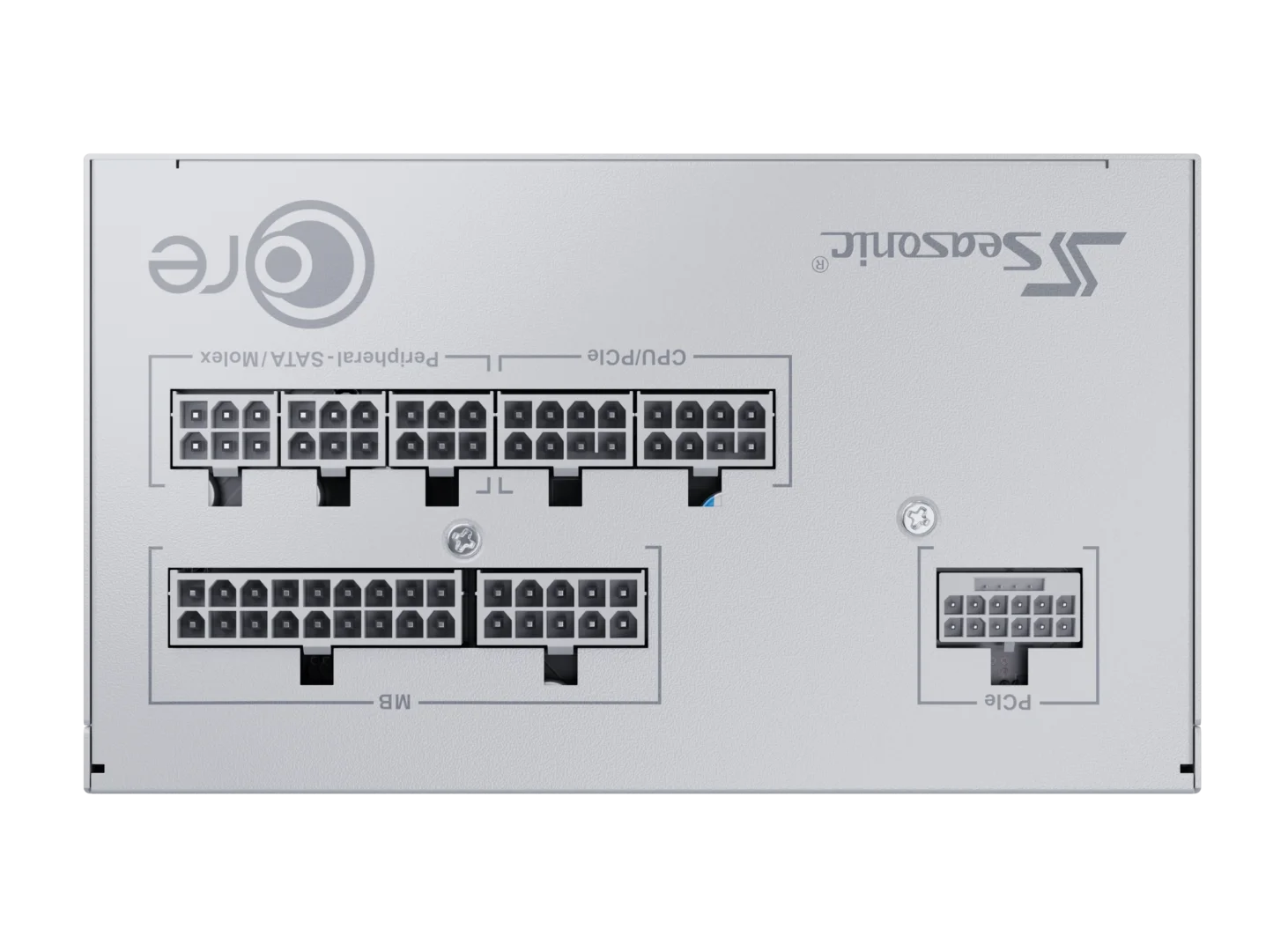

Modularity |

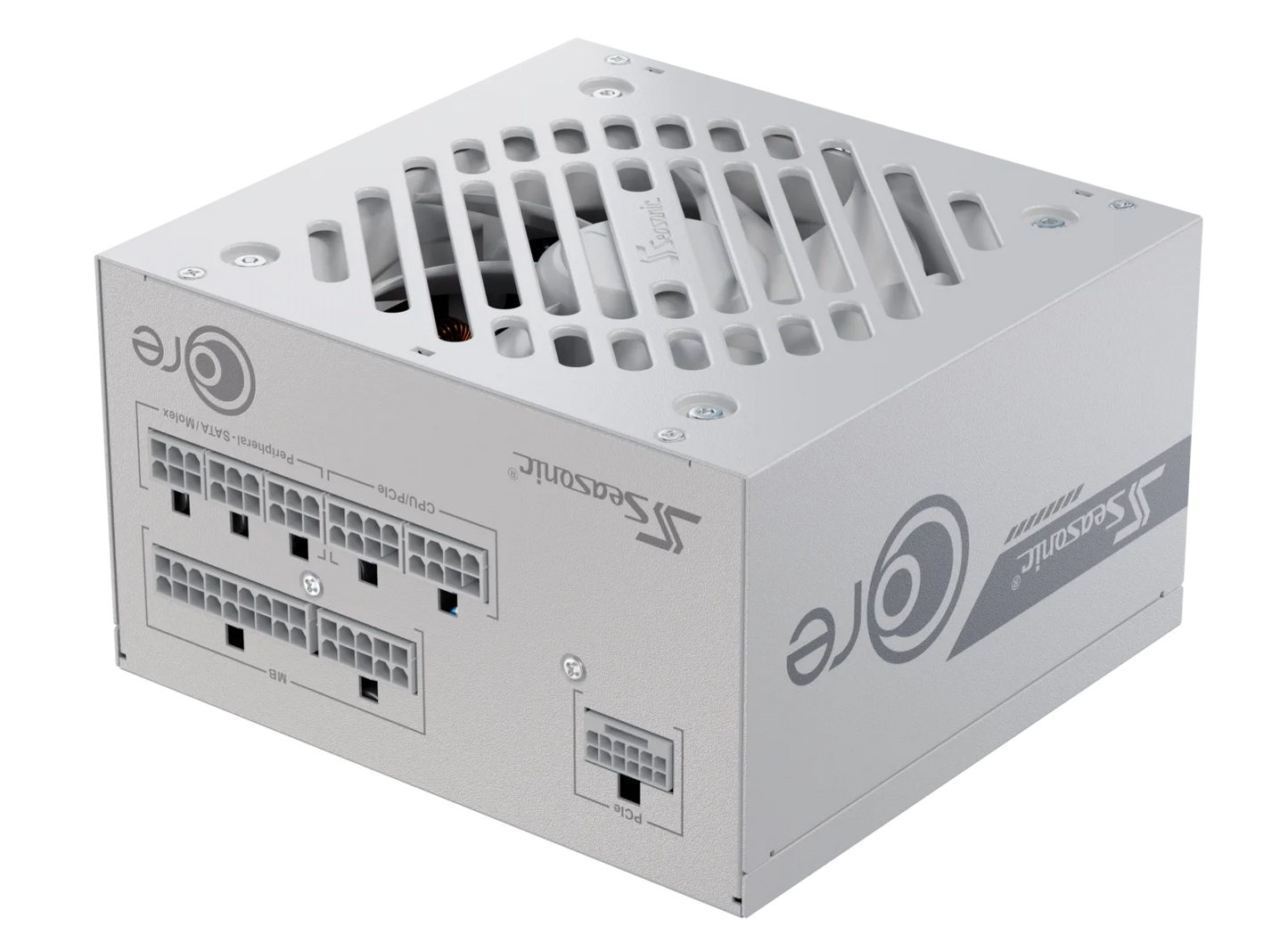

Fully Modular |
Cable type |

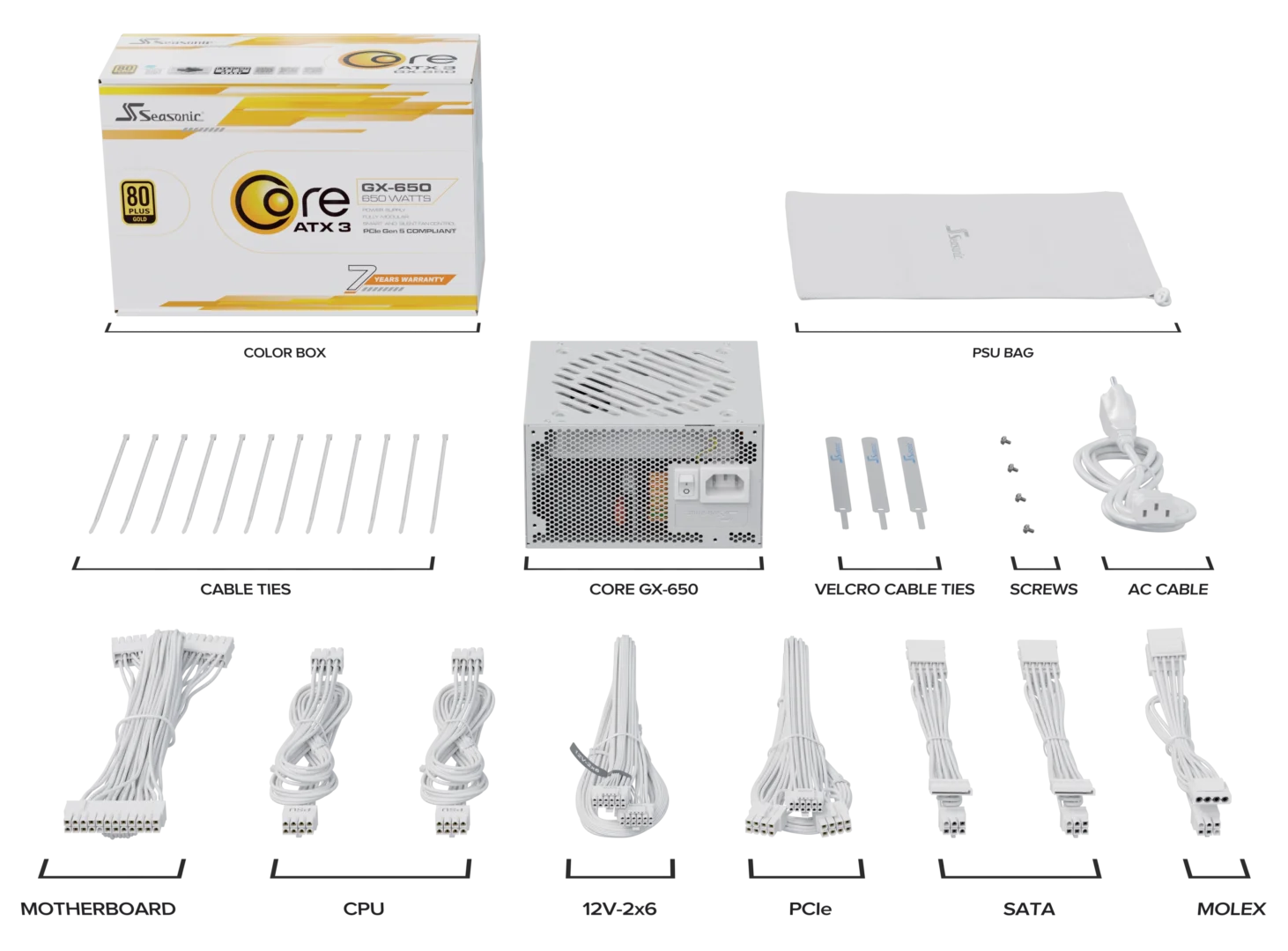

Individual White Cables with Braided Pattern |
|
Electrical Features |
Operating Temperature |
0 - 50 C (derating from 100 % to 80 % from 40 C to 50 C linearly) |
MTBF @ 25 C, excl. fan |
100,000 hours |
|
AC Input |
Full Range |
|
Protection |
OCP, OPP, OTP, OVP, SCP, UVP |
|
Safety and Environmental |
Safety and EMC |
BSMI, C-tick, CCC, CB, CE, cTUVus, EAC, FCC, TUV, UKCA |
Environmental Compliance |
Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
|
Warranty |
7 Years |
Power Output | ||||||
AC Input |
Voltage: 100 V - 240 V |
|||||
Current: 9 - 4.5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output |
Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
Maximum Power |
20 A |
20 A |
54 A |
0.3 A |
3 A |
|
100 W |
648 W |
3.6 W |
15 W |
|||
Total continuous power |
650 W |
