Simplecom CA152 USB to 3.5mm Audio and Microphone Sound Card Adapter for TRS or TRRS Headset with Mic

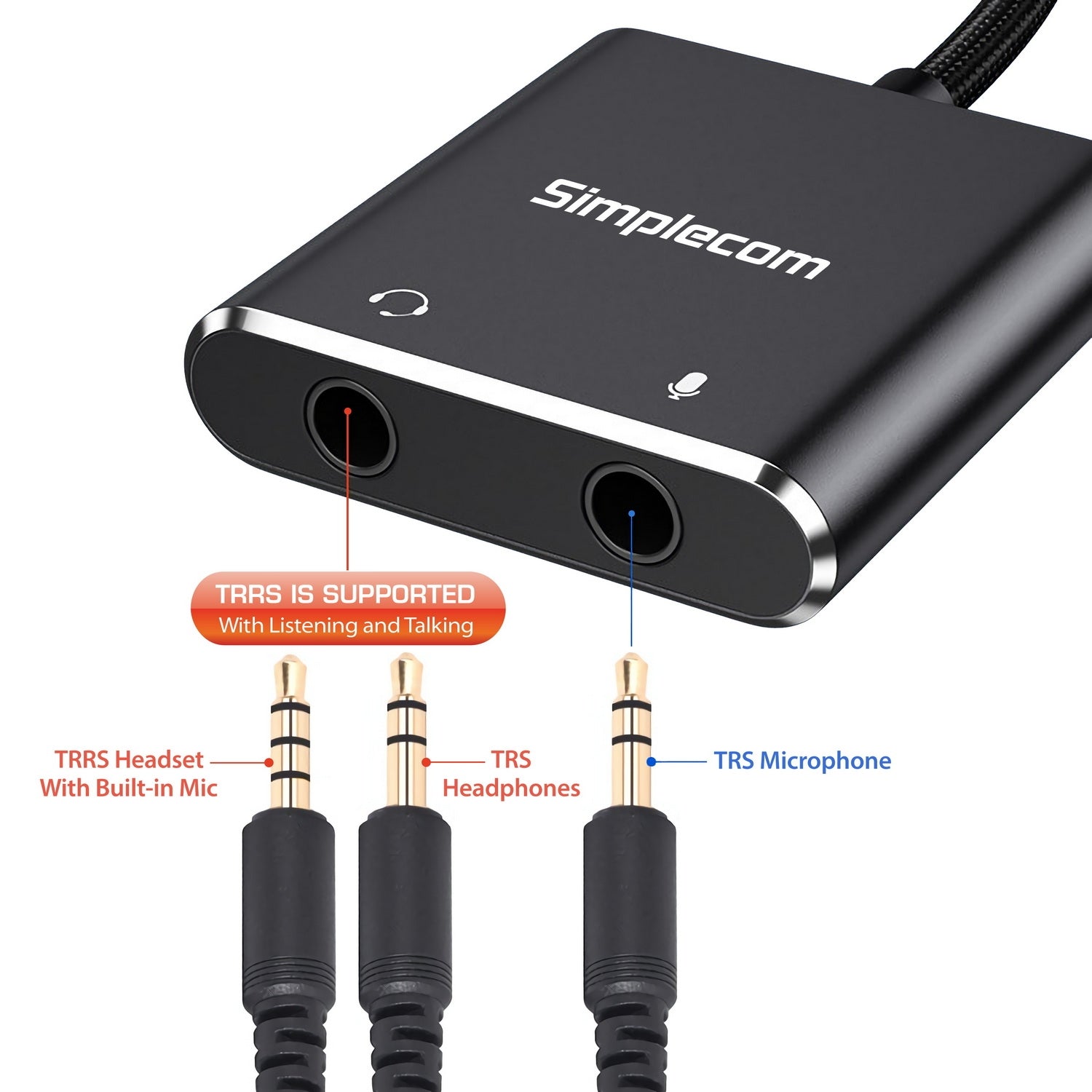

CA152 is a USB to 3.5mm audio and microphone adapter that turns your 3.5mm headphones into USB interface. The headphone jack is compatible with both TRS (three-conductor) plug headset and TRRS (four-conductor) plug headset with mic. Microphone jack is compatible TRS (three-conductor) plug microphone.
Not only for PC headphones with separate audio and microphone plugs, it's also compatible with single TRRS plug mobile headset with both listening and talking support.
With built-in smart conversion chip, the headphones jack is able to automatically detect TRS or TRRS headset, the integrated mic will be enabled when a TRRS headset is plugged in, so you can also listen and talk when using a single cable headset with mic.
Wide support of operating systems, compatible with Windows PC, MacOS, Linux, Chrome OS and more.
Features
- USB to 3.5mm audio and microphone dual-port adapter
- Headphone jack supports both listening and talking for TRRS (four-conductor) headset with mic
- Microphone jack supports TRS (three-conductor) plug microphone
- Plug and play, no driver software required
- Premium aluminum casing for durable surface and stylish finishing
- Durable and long-lasting braided cable
- Compact and portable design, easy to carry
- Widely supported operating systems for PC, Mac, Linux and more
Specifications
- Model: CA152
- USB Interface: USB 2.0
- Headphones Jack: 3.5mm TRRS Female (four-conductor) with mic support
- Microphone Jack: 3.5mm TRS Female (three-conductor)
- Audio output: 24bit / 96Khz max (Stereo)
- Material: Braided Cable + Aluminum Shell
- Cable Length: 15cm (without connectors)
- Dimension: 3.4cm x 3.3cm x 0.8cm
- Weight: 18g
- Operating system Support: Windows XP and above, MacOS 8.6 and above, Linux, Chrome OS, PS4, PS5, Switch
Important Notes:
- The microphone port on the adapter will be disabled when a TRRS headset with integrated microphone is plugged in, and the microphone on the TRRS headset is activated.
- Does not work with PS3, TV, Amplifier, Car, Xbox One. (The USB port on those devices do not carry audio signal)
- Support CTIA standard TRRS headset only, legacy OMTP standard headset is not supported
- No in-line control when using mobile headset, doesn't support Pause, Play, Volume Up and Volume Down controls
