Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station Dual HDMI + VGA Triple Display USB 3.2 Gen 2 10Gbps

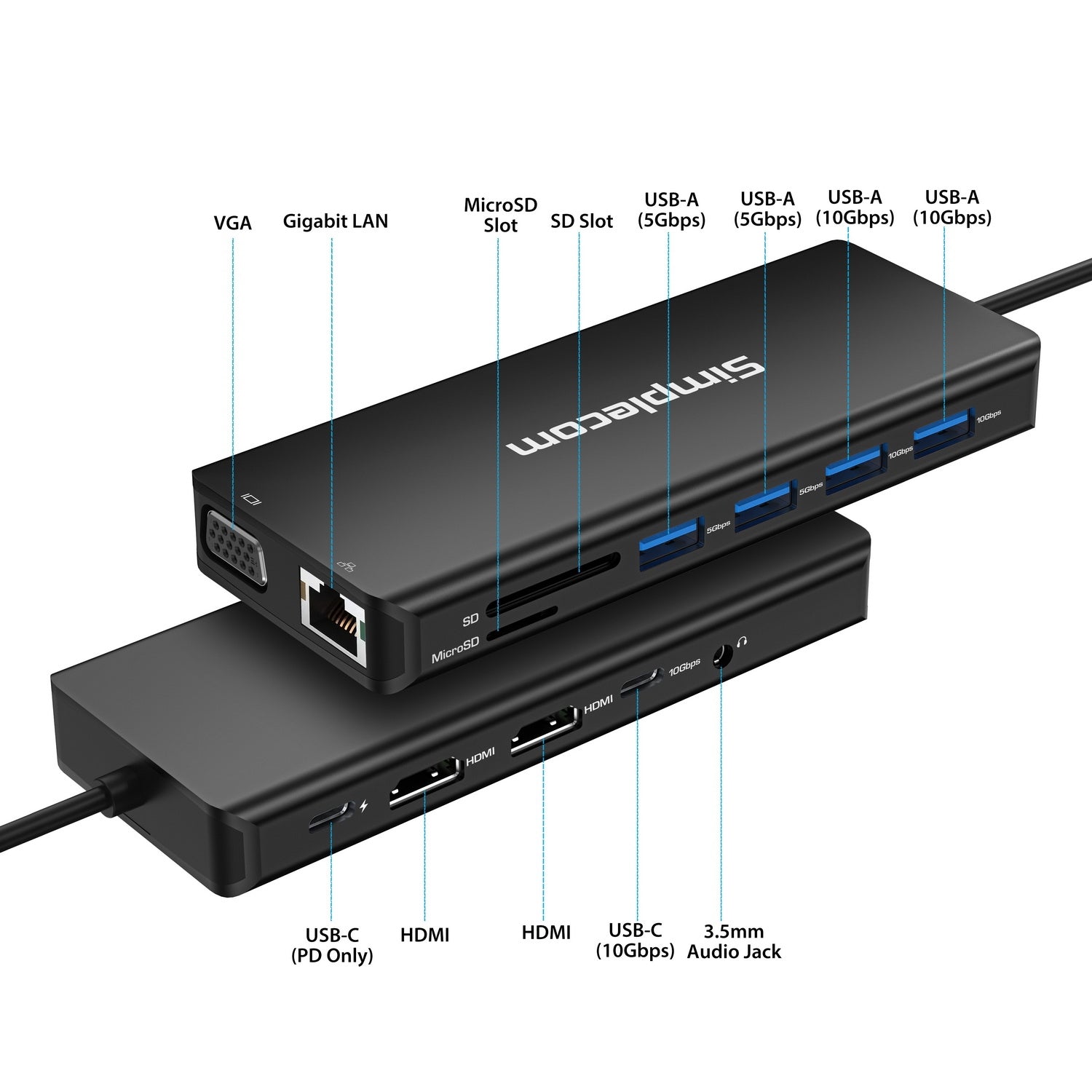

CHN613is a comprehensive 13-port multifunctional USB-C docking station that allows you to expand the connectivity of your laptop through a single USB-C connection. It turns a single USB-C port into 13 ports, including four USB-A and one USB-C data ports, two card reader slots, dual HDMI, VGA, Gigabit Ethernet, 3.5" audio jack and 100W PD charging.
If you need to connect with various devices to your laptop simultaneously, CHN613 is an ideal connectivity solution that helps you do more with the devices you already have to increase productivity and convenience.

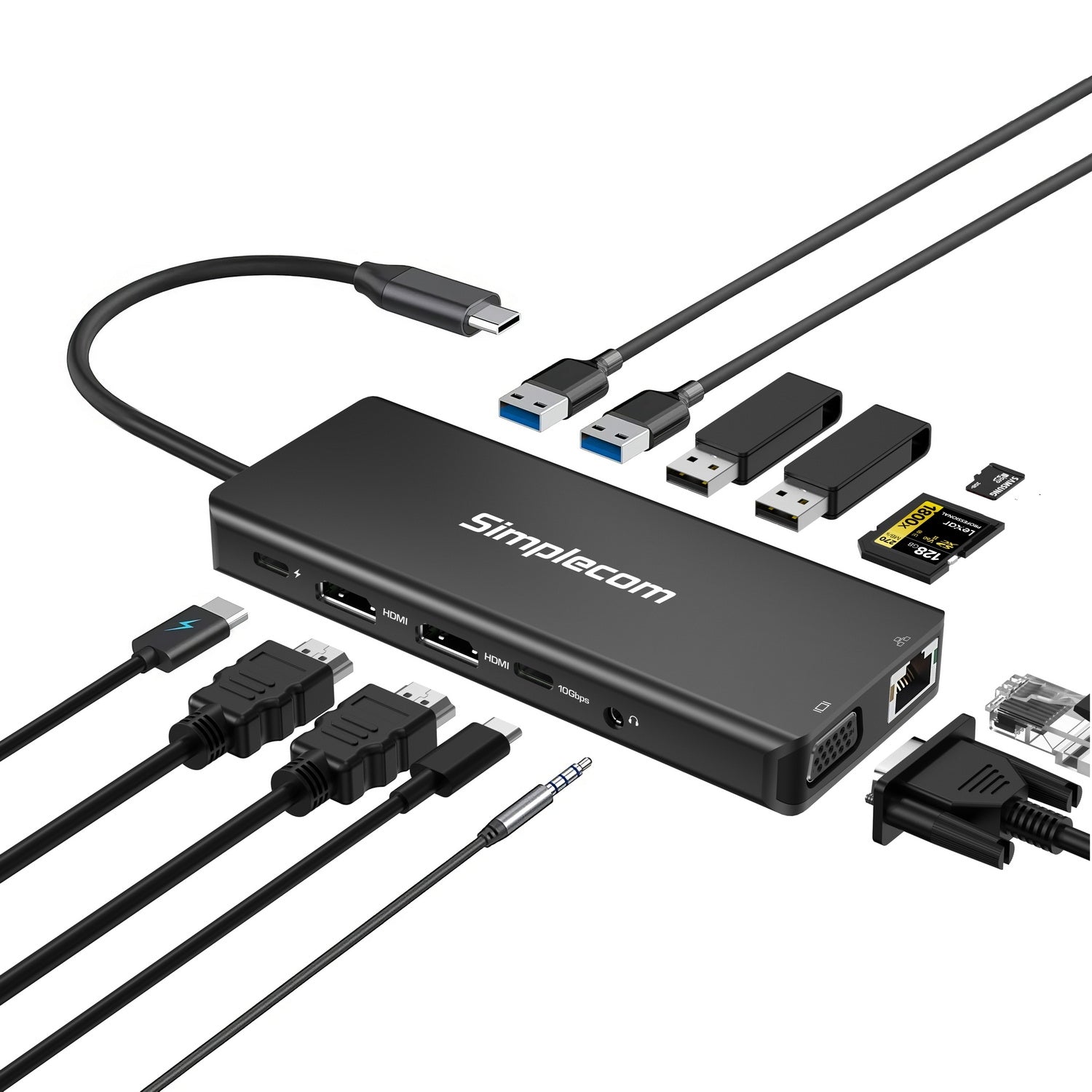

13-in-1 Powerful USB-C Docking Station
A powerful all-in-one USB-C docking station with dual HDMI, VGA outputs, 100W PD charging port, Gigabit Ethernet Port, SD/MicroSD Card reader, 3.5mm audio output and 5 port USB hub with data transfer rate up to 10Gbps.

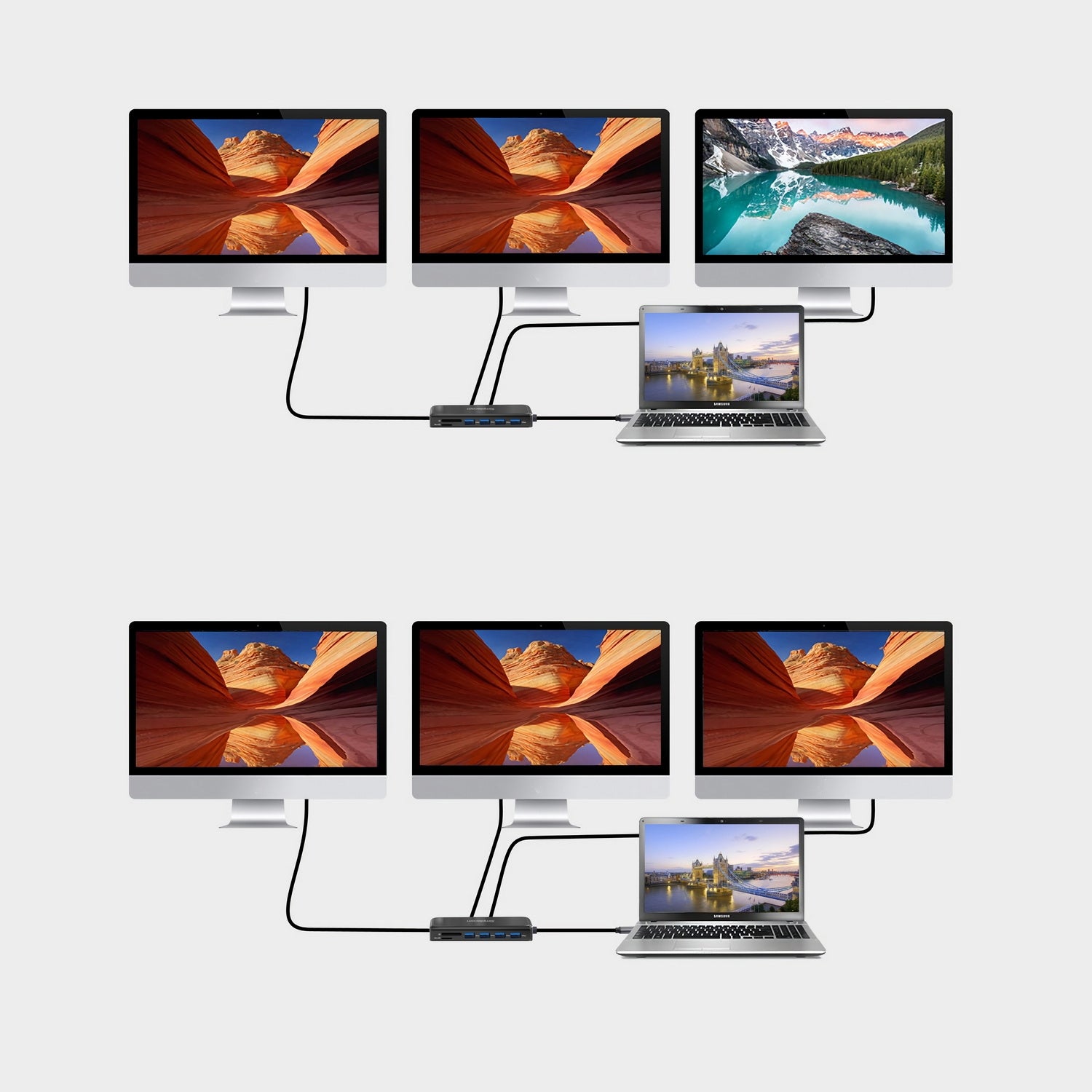

Triple Video Outputs with MST Support
Thismultiport adapter offers one VGA output and dual HDMI outputs. It allows you to connect 3 screens simultaneously, and supports up to 2 extended screens with MST support. Connecting single HDMI supports up to 4K@30Hz and dual HDMI supports up to 1080p@60Hz on each external monitor. (Please note MST is for Windows system only, MacOS doesn't support MST)
USB 3.2 Gen 2 Ports with 10Gbps Data Rate
Two USB-A and one USB-C data ports are compliant with USB 3.2 Gen 2 standard, supports maximum data transfer speed up to 10Gbps, which allows you to connect and utilize high speed USB SSD devices. With total 5 USB data ports, you can connect a variety of USB peripherals, such as, mouse, keyboard, printer, USB pen drive and more.
SuperSpeed USB Card Reader
Featuring integrated SD and MicroSD card slots, which offers a convenient and speedy solution for reading both types of memory cards. It also allows access to both SD and MicroSD cards simultaneous.SuperSpeed interface allows fast data transfer up to 5Gbps, ideal for transferring large raw or HD media files.
100W USB-C Power Delivery
The USB-C PD Port can charge your connected laptop while other ports are working. The USB-C port supports up to 100W Power Delivery charging.
Gigabit Ethernet
Connect to the network instantly and enjoy stable connection speeds of up to 1000Mbps, Avoid the latency and interference issues for a more consistent, reliable experience when streaming or downloading.

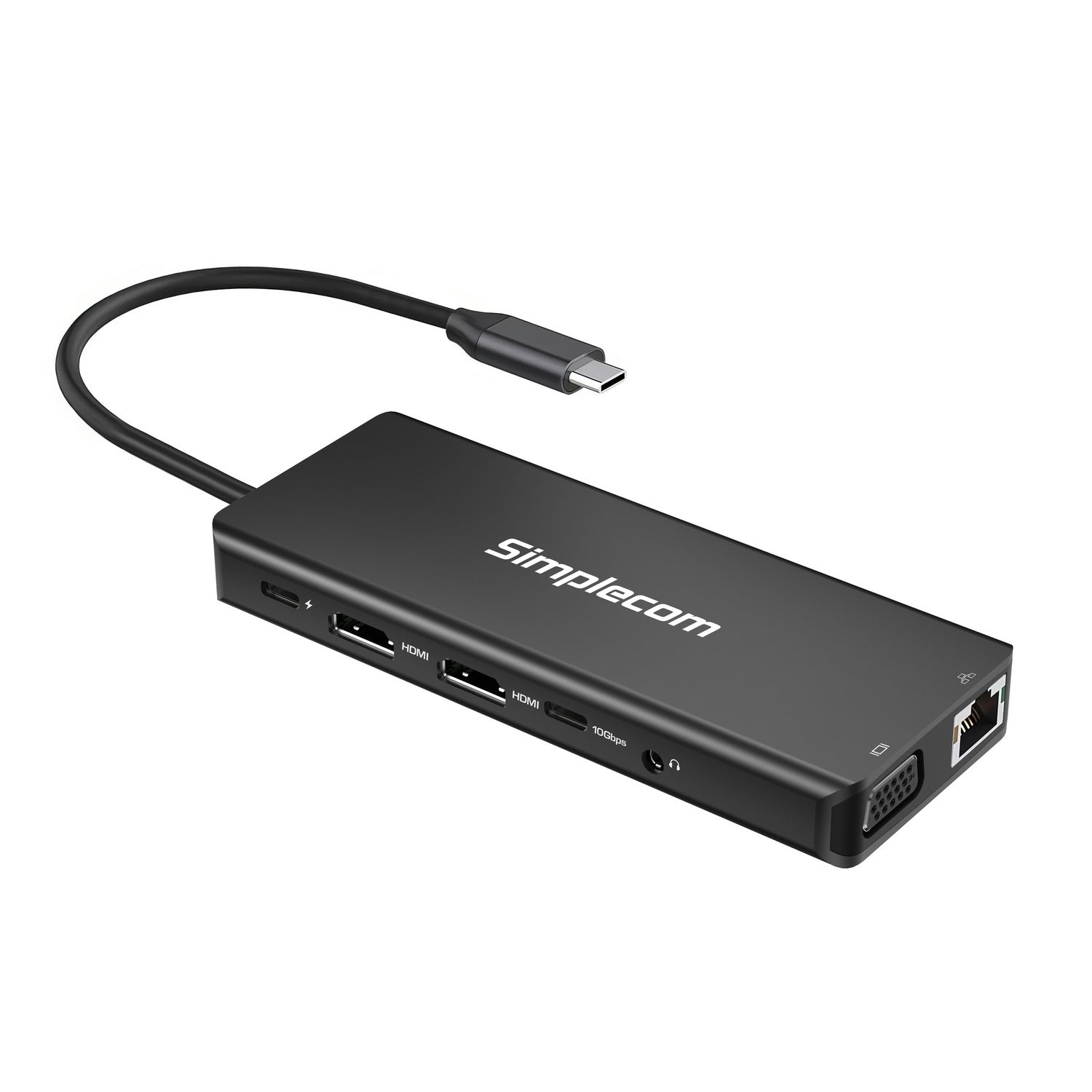

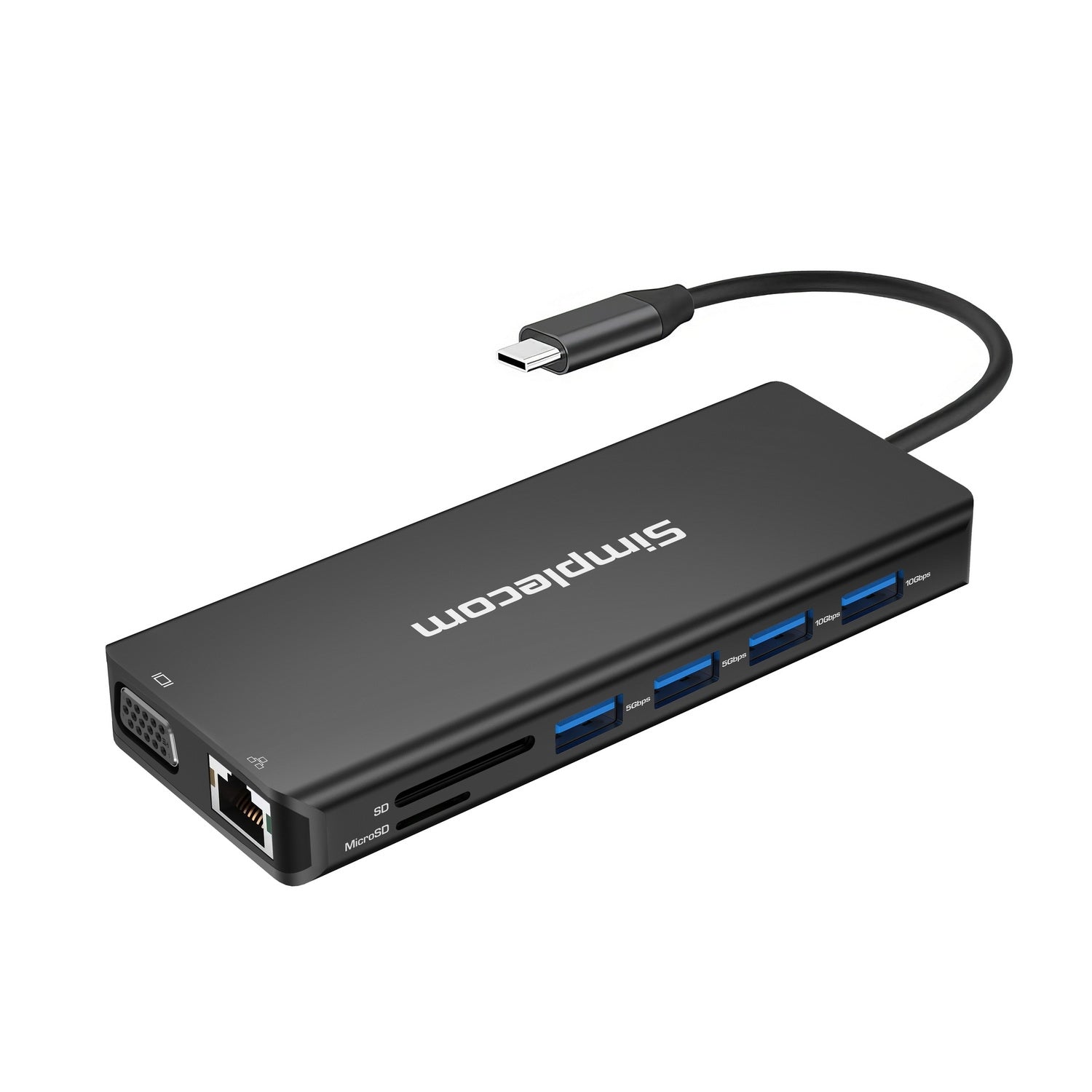

Stylish and Durable Aluminium Alloy Casing
This USB-C multiport adaptercomes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work.
Features
- 13-in-1 USB-C multiport adapter for comprehensive expansion to your laptop
- USB ports support up to 10Gbps transfer rate following USB 3.2 Gen 2 standard
- Dual HDMI plus VGA, triple video outputs with MST Support
- Support single HDMI up to 4K@30Hz and dual HDMI up to 1080p@60Hz
- Support Mirror or Extended mode (maximum 2 extended mode displays)
- Gigabit Ethernet support connection speeds of up to 1000Mbps
- 2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate
- USB-C PD port for charging the laptop with up to 100W of power
- 3.5mm audio jack for easy connection of headphones or speakers
- Durable stylish aluminium alloy housing
- Lightweight, easy to carry along when travelling
- Plug play, no driver software required
Specifications
- USB Hub: 4x USB-A Female (2x 5Gbps, 2x 10Gbps), 1x USB-C Female (10Gbps)
- Video Output: 2x HDMI, VGA
- HDMI Resolution: Single HDMI output supports up to 4K@30Hz, dual HDMI outputs support up to 1920x1080@60Hz on each external monitor
- VGA Resolution: up to 1080p@60Hz
- MST Support: Yes (for Windows System only)
- RJ45 Port: Gigabit Ethernet (10/100/1000 Mbps)
- Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
- PD Charging: USB-C Female (for charging only), up to 100W
- 3.5" Audio Jack: Yes (Audio output only)
- Operation Temperature: 0 - 45C
- Housing: Aluminium Alloy
- Dimensions: 13.5 x 5.5 x 1.6 (cm)
- Cable Length: 15cm
- Weight:
System Requirements
- Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
- Windows 8 or above for MST and two extended screens support
- Thunderbolt USB-C port, USB3.2 Gen2 or USB4 port for 10Gbps data transfer rate
- macOS does not support MST and will only support one extended mode
Important Note
- Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
- Screen resolution will be limited to 1080p when two HDMI monitors are connected
- Screen resolution will be limited to 1080p when VGA port is connected
- The USB-C PD port is for PD Charging only, not for data transfer, please use another USB-C port for data transfer
- Please connect power delivery adapter when power is not enough
