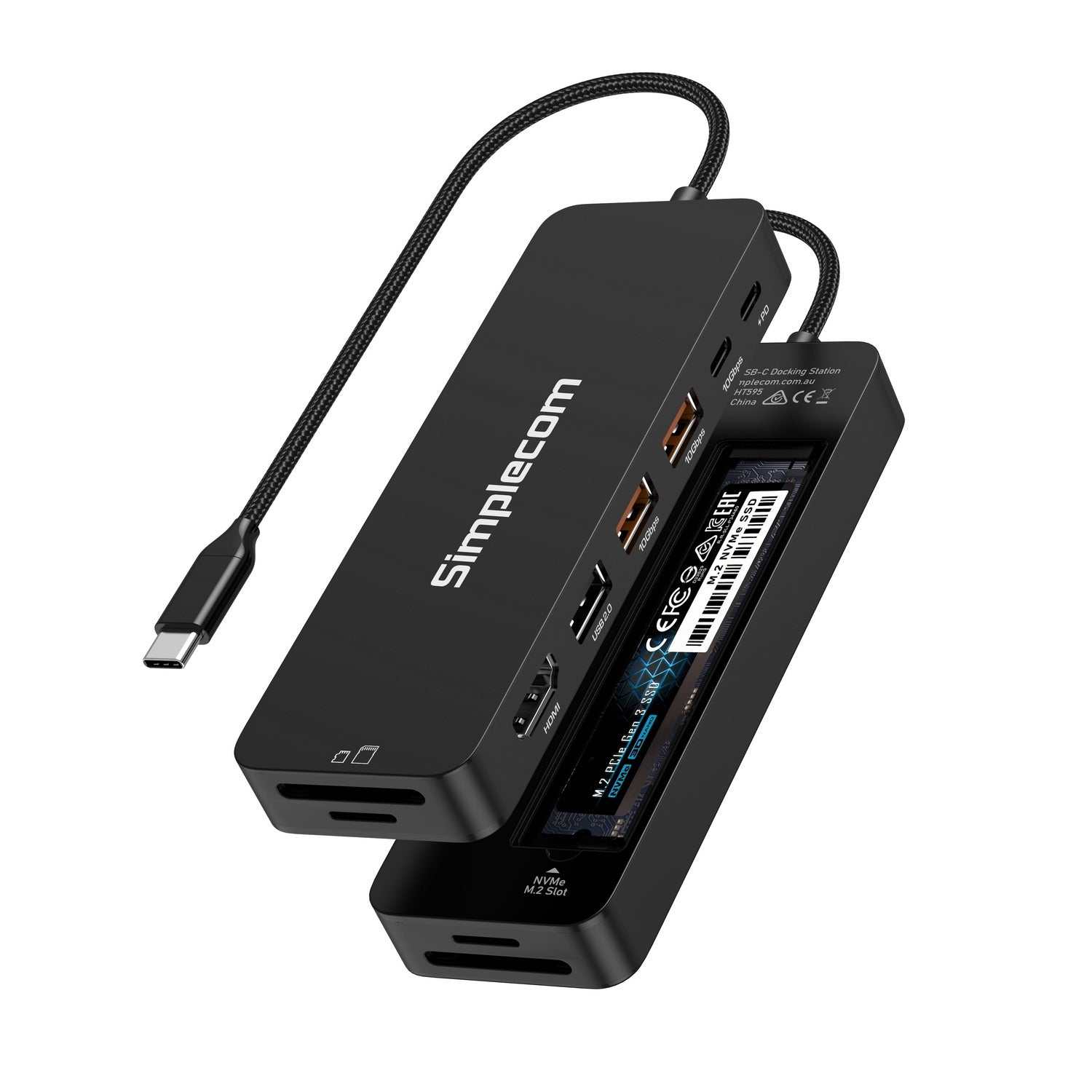

Simplecom CHT595 9-in-1 USB-C Multiport Docking Station with NVMe M.2 Enclosure
Expand your laptop's capabilities with this versatile 9-in-1 USB-C Multiport Docking Station. It transforms a single USB-C port into a full-featured hub with extra USB ports, HDMI, card readers, PD charging, and even an integrated NVMe M.2 SSD slot, turning your dock into a high-speed portable USB drive.
If you need to connect various devices to your laptop simultaneously, this docking station is a comprehensive connectivity solution that enhances productivity and convenience.
HDMI 2.0 Video Output up to 4K@60Hz
Enjoy stunning Ultra HD visuals with the HDMI 2.0 port, supporting resolutions up to 4K@60Hz on compatible laptops. Experience smooth, fluid playback, perfect for fast-action scenes, gaming, or high-quality video content.

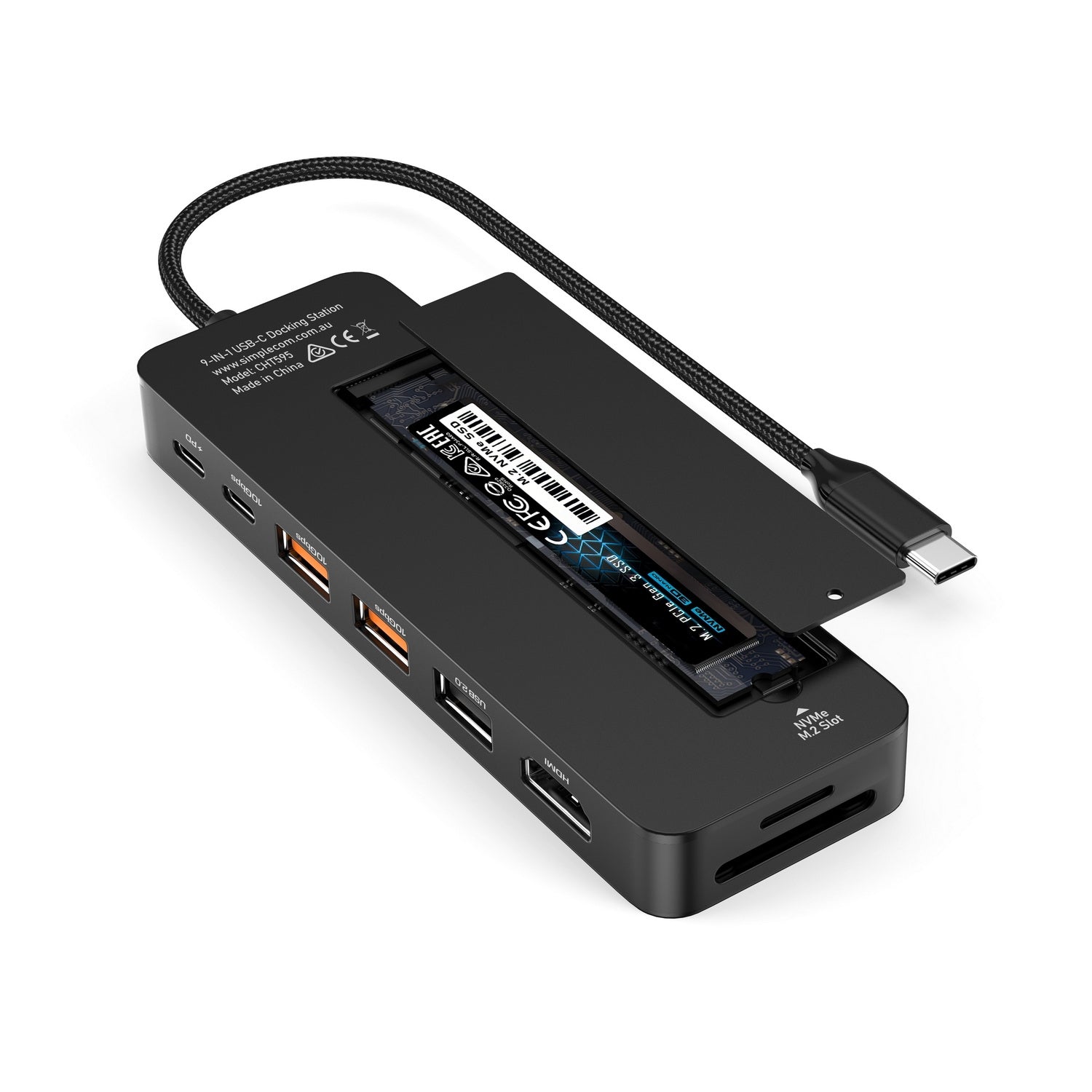

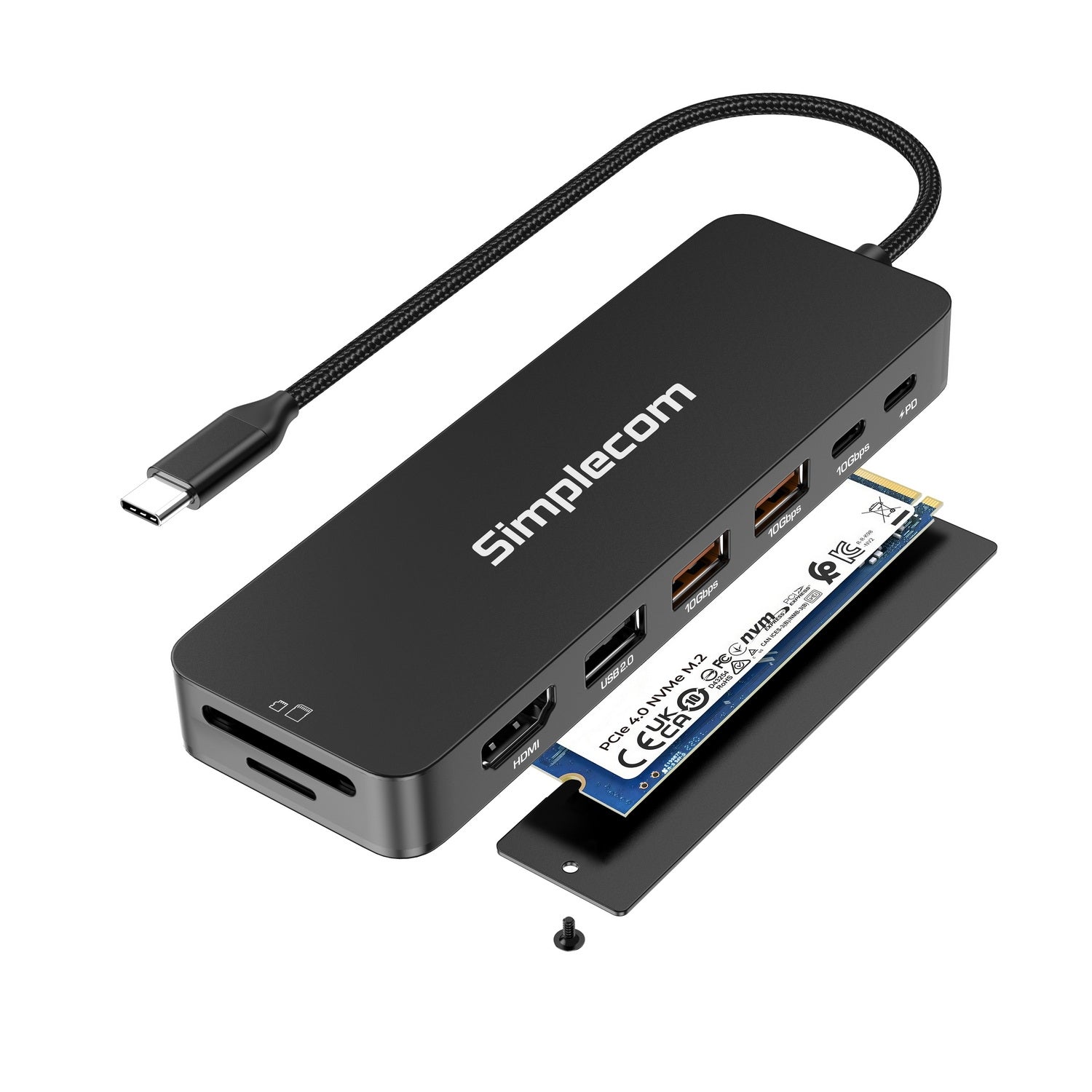

Integrated NVMe M.2 SSD slot
Transform your docking station into a high-speed portable drive with the built-in NVMe M.2 SSD slot for fast data access and convenient storage expansion, combining storage and connectivity in one device.
10Gbps USB-C and USB-A Ports
Experience ultra-fast data transfer speeds of up to 10Gbps with the USB 3.2 Gen 2 USB-C and USB-A ports, perfect for quickly transferring large files and backups.
SD/MicroSD Card Reader
Easily access and transfer photos, videos, and files from SD or microSD cards with plug-and-play convenience.
100W USB-C Power Delivery
The USB-C PD port supports up to 100W Power Delivery, allowing you to charge your laptop efficiently while using other connected devices.
Stylish and Durable Aluminium Casing
Crafted from premium aluminium alloy, the metal housing provides excellent heat dissipation and a sleek, modern look, ensuring both durability and stable performance.
Features
- 9-in-1 USB-C multiport docking station for all-in-one laptop expansion
- Expands a single USB-C to extra USB ports, HDMI, Card Reader, PD and an NVMe SSD slot
- Integrated NVMe M.2 SSD slot transforms the dock into a portable USB drive
- USB 3.2 Gen 2 interface delivers data transfer speeds up to 10Gbps
- Two 10Gbps USB-A and one 10Gbps USB-C ports for ultra-fast file transfers
- HDMI 2.0 supports up to 4K@60Hz in both Mirror and Extended display modes
- 2-Slot Card reader for SD and microSD memory cards
- USB-C PD port supports up to 100W charging input
- Premium aluminium alloy housing for durability and heat dissipation
- Compact and lightweight design for travel-friendly portability
- Built-in flexible USB-C cable for hassle-free connectivity
- Plug-and-play, no driver installation required
Specifications
- Host Interface: USB-C
- USB Hub: 2x USB-A Female (10Gbps), 1x USB-C Female (10Gbps)
- HDMI Port: HDMI 2.0, up to 3840 x 2160p at 60Hz (4K@60Hz)
- Card Reader: SD and MicroSD (USB 2.0 Hi-Speed, 480Mbps)
- PD Input: USB-C PD (charging only), up to 100W
- Compatible M.2 Protocol: NVMe M.2
- Compatible M.2 Size: 2242, 2260, 2280
- M.2 Slot Data Transfer Rate: up to 10Gbps
- Operating Temperature: 0 55C
- Housing Material: Aluminum
- Dimensions: 13 x 4.2 x 1.5 cm
- Cable Length: 15cm
- Weight: 80g
System Requirements
- Operating system: Windows 10 or later, macOS 10.12 or later
- Available USB-C port with DP Alt Mode support (video output over USB-C), Thunderbolt USB-C port or USB4 port
- Laptop GPU with DP 1.4 or higher supports up to 4K@60Hz, laptop GPU with DP 1.2 supports up to 4K@30Hz
Important Notes
- Please confirm that the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports support only charging or data transfer and do not offer video output functionality.
- 4K@60Hz is supported by laptop GPUs with DP 1.4 or higher version (e.g., Intel 11th Gen Core Mobile Processors or later).
- The USB-C PD port is for Power Delivery (PD) charging only and does not support data transfer.
- NVMe M.2 slot supports only NVMe protocol M.2 SSDs (M Key), SATA M.2 SSDs are not compatible.
