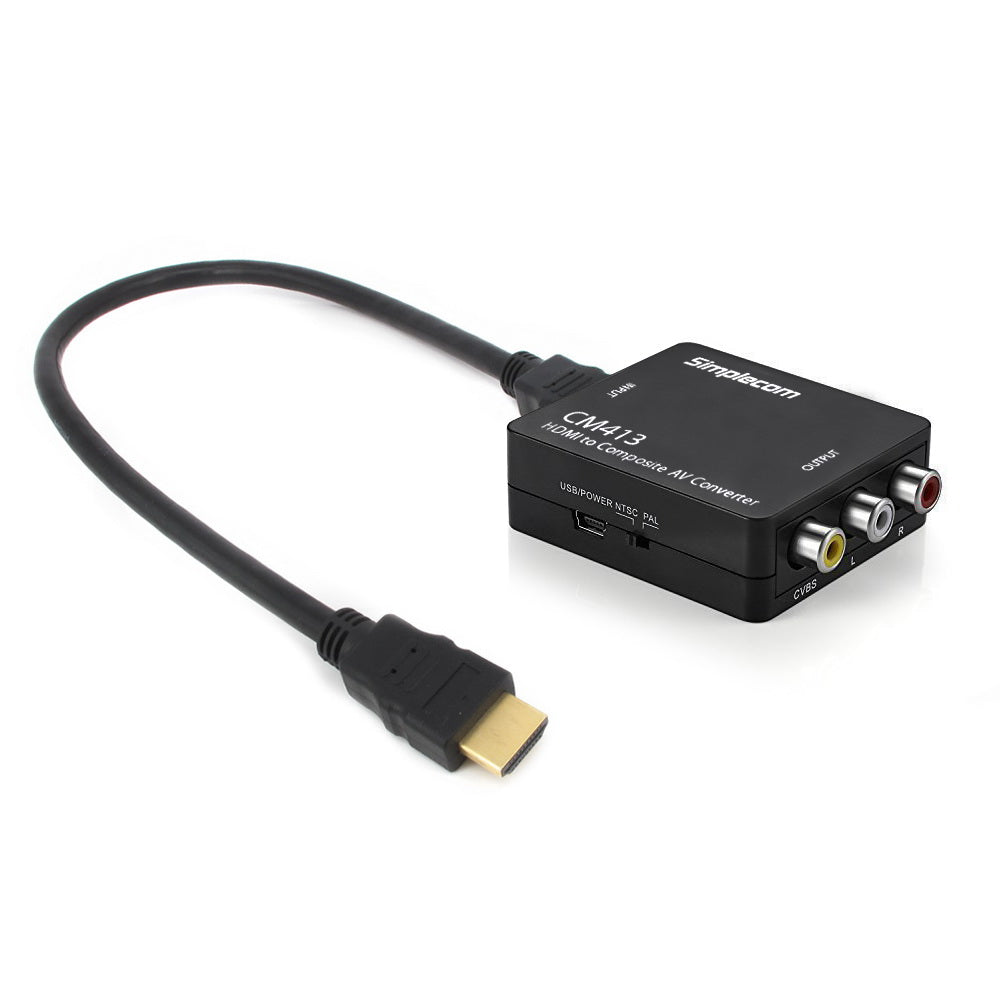

Simplecom CM413 HDMI to Composite AV Video Adapter converts the high definition HDMI digital video and audio signal to analog composite video and R/L audio output. It can be used for typical HD video sources, such as Laptop, Smartphone, Blu-ray Player, HD TV box, and Digital Media Receiver, etc. to a display with CVBS input, such as traditional CRT TV, RPTV and projectors.
Features
Support HDMI input from up to 1080p (Does Not support 3D)
HDMI Input, Composite Video + Audio R/L Output (Does Not Support reverse way)
Supports NTSC and PAL two standard TV formats with a select switch
Hardware conversion , plug and play without any software driver
Signals through the HDMI high-definition video processing downscale to 576i, 480i (PAL / NTSC) video signal output
With advanced video processing chip, for better compatibility and image quality
Specifications
Model: CM413
Compatible with HDMI 1.3
Support NTSC and PAL two standard TV formats
Inputs: HDMI x 1
Outputs: AV x 1; L / R x 1
HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
CVBS output: 480i, 576i
Dimensions : 55mm(W)x66mm(D)x 20mm(H)
Weight Converter : 40 gram
PAL and NTSC standard format selector switch
Package Contents
1 x CM413 HDMI to AV Converter
1 x USB Cable
1 x HDMI Cable
