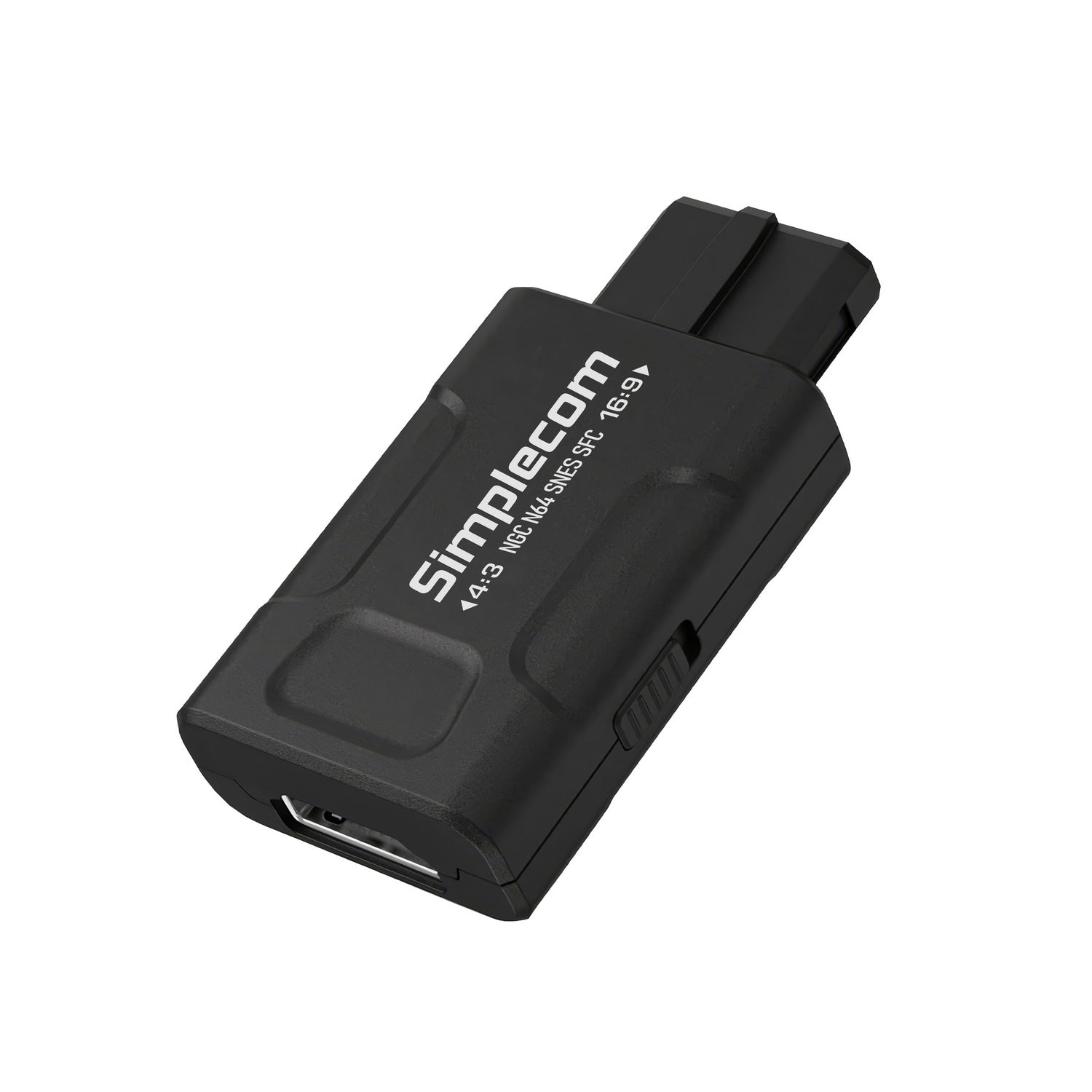

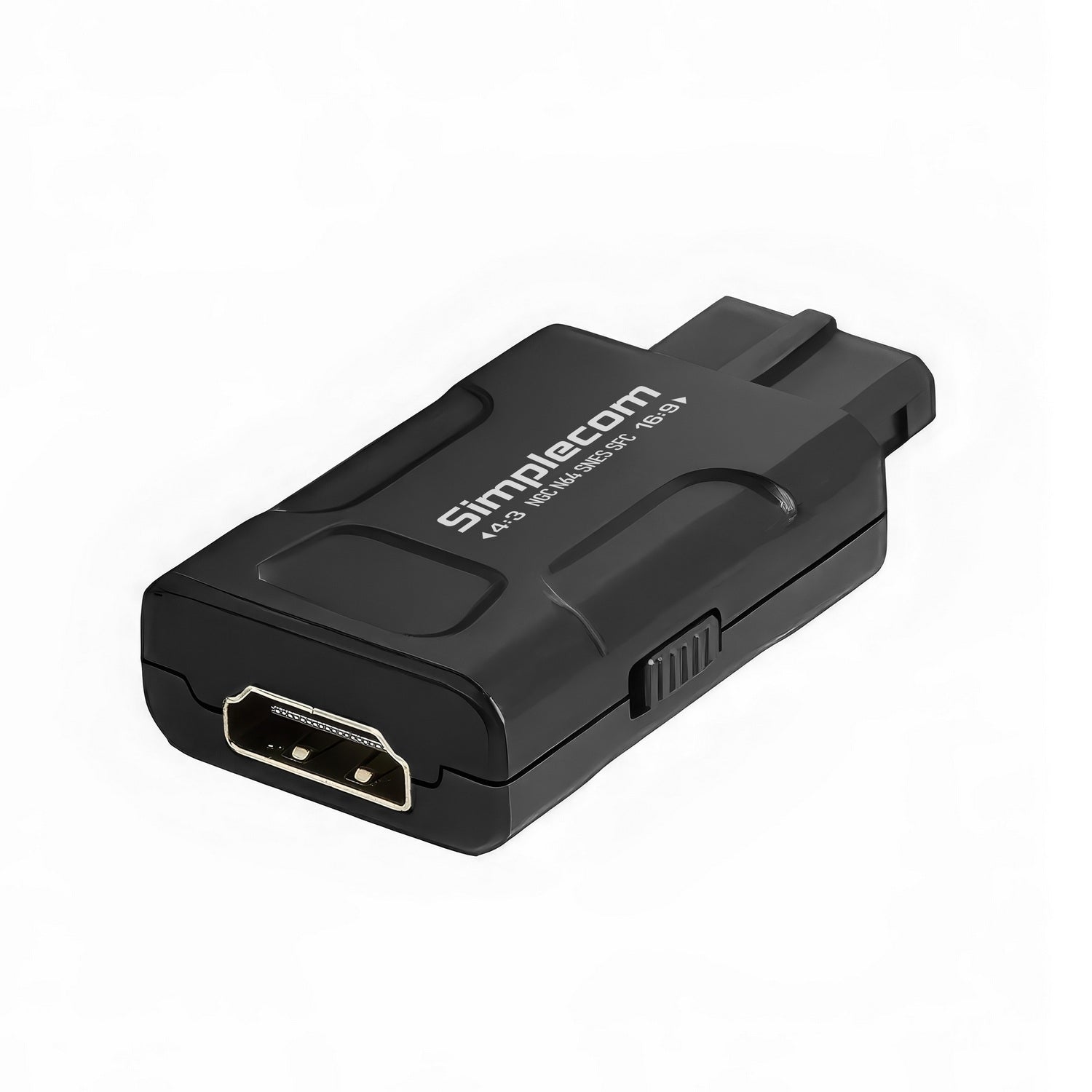

Simplecom CM461v2 HDMI Adapter Composite AV and S-Video to HDMI Converter for Nintendo NGC N64 SNES SFC
Bring your classic consoles back to life with this high-quality HDMI converter. Designed for classic systems including N64, GameCube, Super NES, and SFC, it effortlessly converts analog signals into digital HDMI output.
The converter supports both Composite AV and S-Video signals, automatically switching to S-Video for improved picture quality whenever available. Its compatible with both NTSC and PAL consoles for a hassle-free setup.
With a built-in switch to toggle between 4:3 and 16:9 aspect ratios, you can enjoy games in their original format or in full-screen mode. Compact, lightweight, and completely plug-and-play with no external power required, this converter is easy to set up and use, perfect for reliving your favorite retro titles on modern displays.
Features
- Compatible with N64, GameCube, Super NES, and SFC consoles
- Converts and upscales console analog signal to digital HDMI output
- Supports Composite AV and S-Video signals from the console
- Automatically switches to S-Video mode for enhanced quality when available
- Supports both NTSC and PAL consoles
- Delivers both video and audio through a single HDMI cable

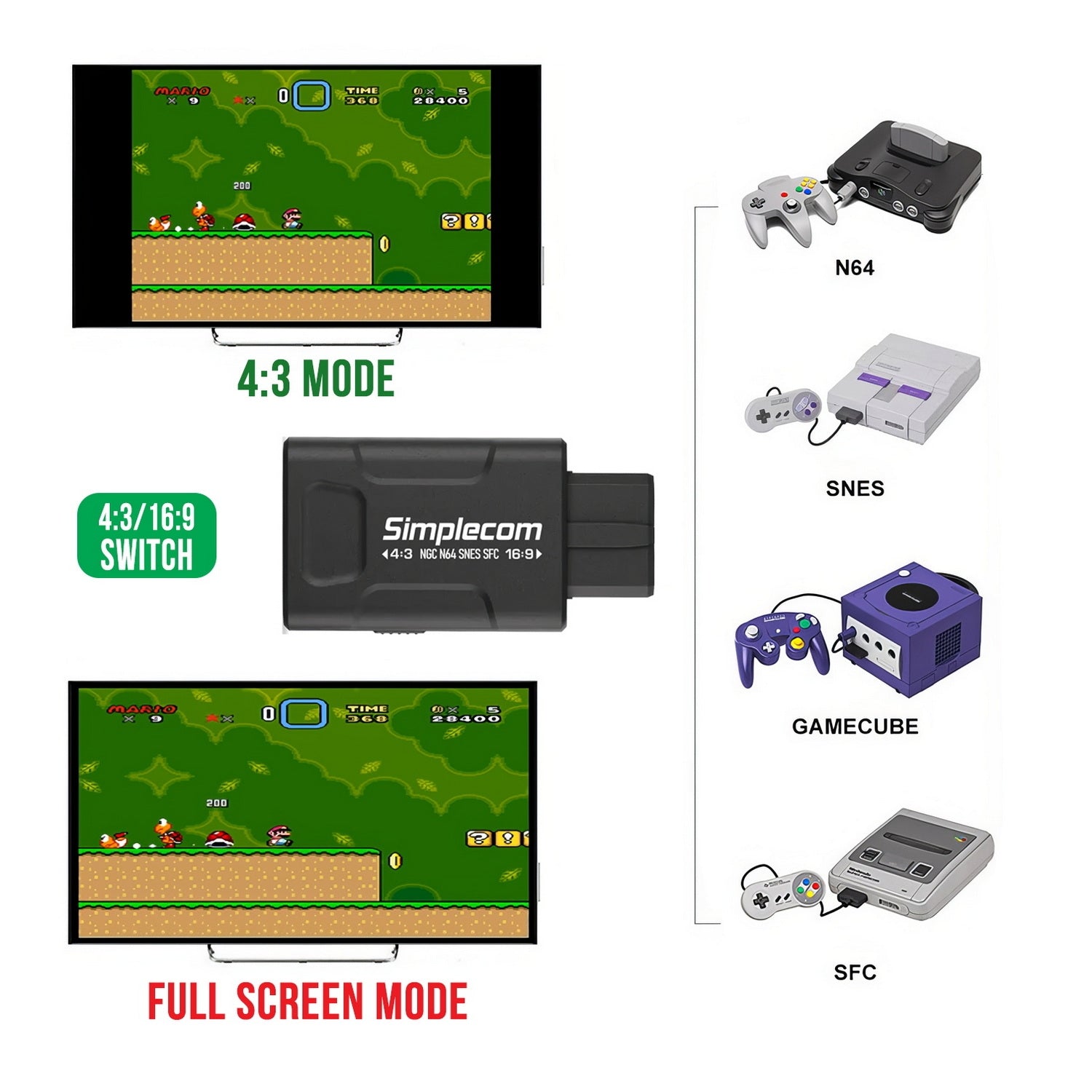

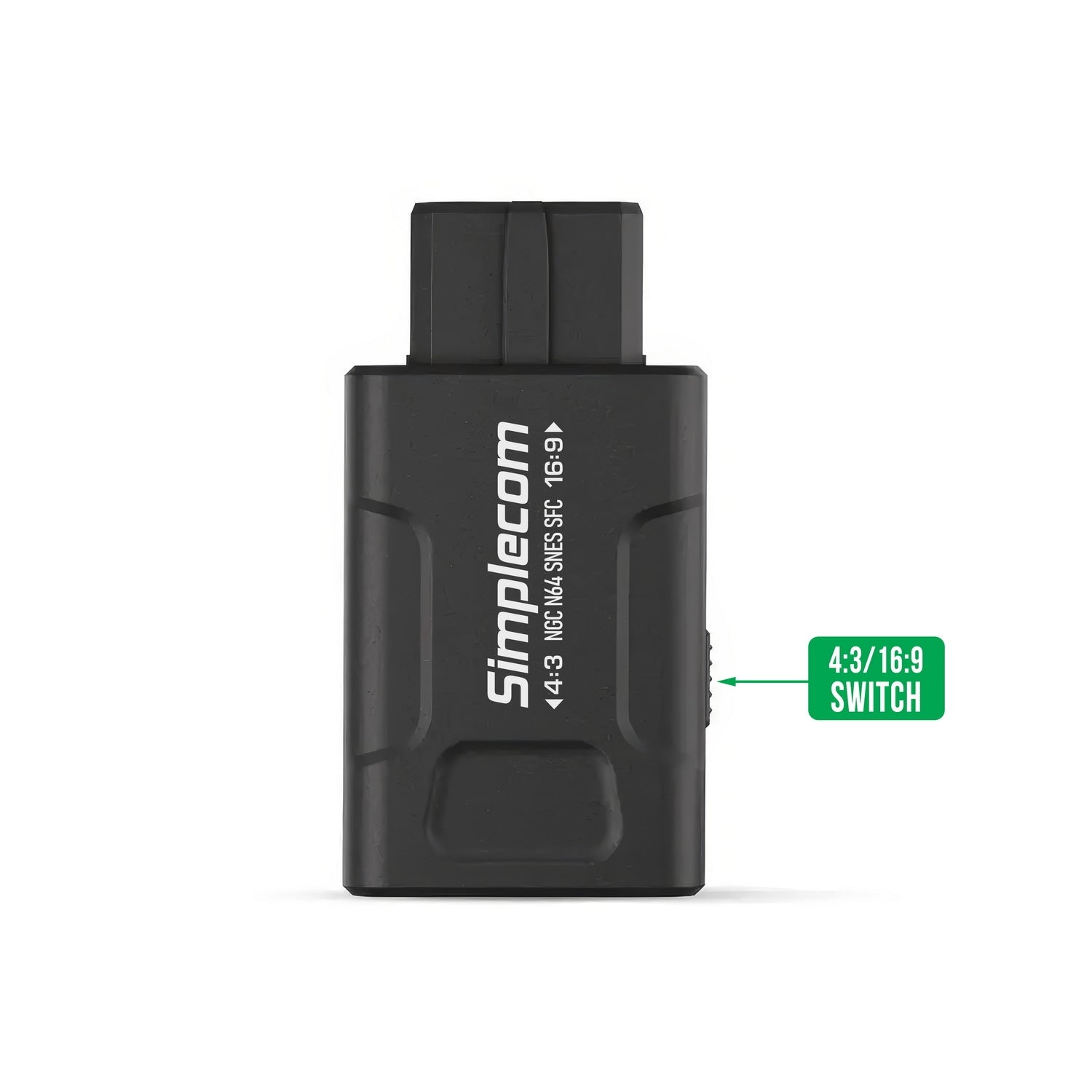

- Easily select between 4:3 and 16:9 aspect ratios with a switch
- Plug and play, no external power required
- Compact and lightweight design, easy to set up
Specifications
- Model: CM461v2
- Compatible Consoles: N64 / NGC / SNES / SFC
- Supported Analog Signals: AV, S-Video
- Output Interface: HDMI
- Analog Video Standards: PAL, NTSC
- HDMI Output Resolution: 720p (16:9), 1080p (4:3)
- Dimensions: 57 29 13mm (WDH)
- Weight: 14g
Important Notes:
- The adapter is powered directly by the console, no external power supply is required.
- This HDMI adapter supports only analog video signals (AV, S-Video). RGB signals are not supported.
- Not all consoles support S-Video signal. If S-Video signal is not detected, the adapter will default to AV signal.
- Supported Console with S-Video output
N64: All NTSC consoles and most PAL consoles support S-Video output
GameCube: All NTSC consoles support S-Video output; PAL consoles do not support S-Video
SNES / SFC: All NTSC and PAL consoles support S-Video output, except the cost-reduced smaller size models (SNS-101 and SHVC-101)
