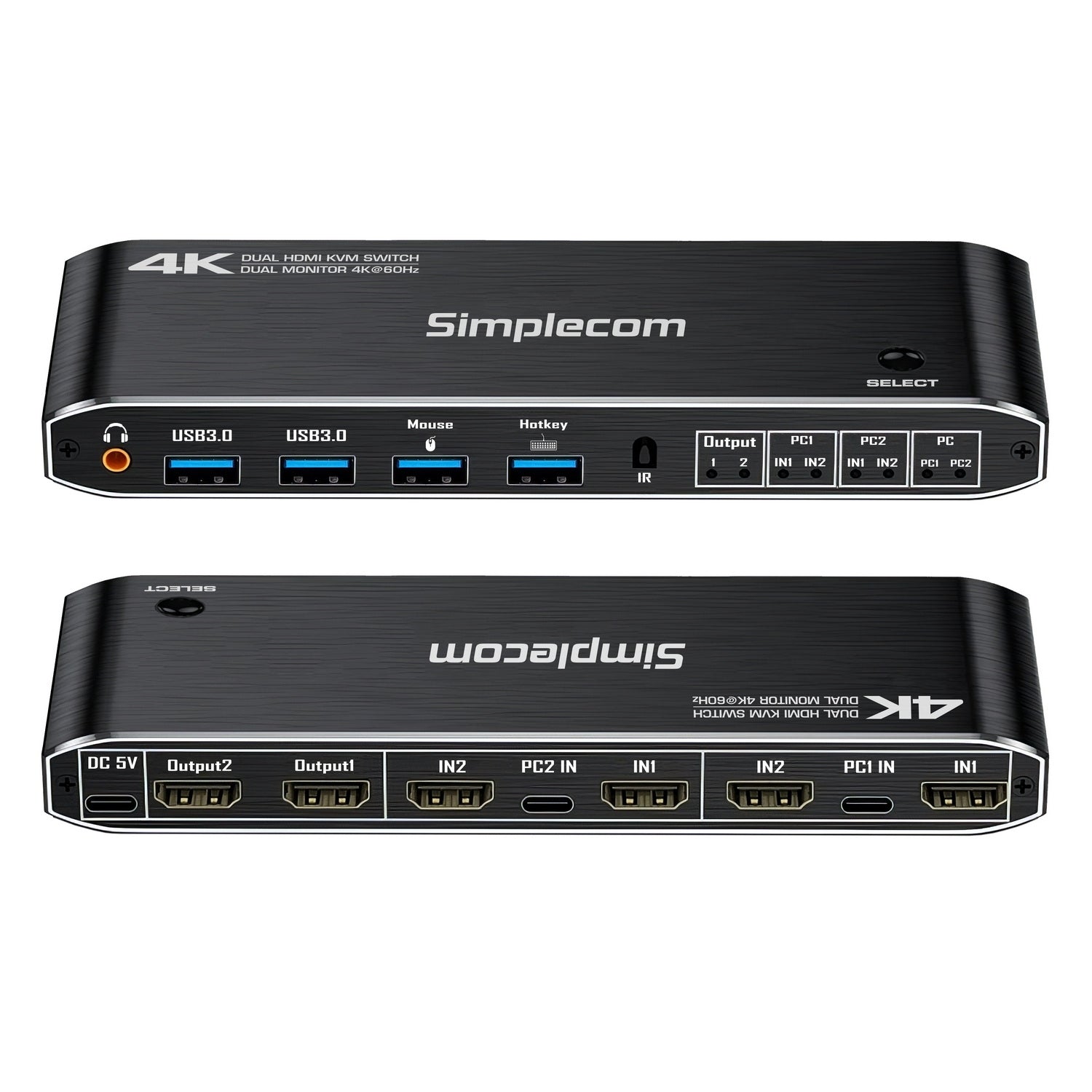

Simplecom KM430 Dual HDMI Monitor KVM Switch for 2 Computers with 4-Port USB Hub 4K@60Hz Keyboard Hotkey
This Dual HDMI KVM Switch lets you control two computers with a single set of peripherals and dual monitors, making it ideal for multitasking across workstations or home setups. It supports both extended and mirrored display modes with HDMI 2.0 compliance, delivering ultra-high video resolution up to 4K@60Hz on both screens.
It features an integrated 4-port USB hub, allowing you to simultaneously switch both displays and connected USB peripherals. Switching between computers is easy via the front button, included remote control, or keyboard hotkeys (supported via the dedicated USB keyboard port).
It's plug-and-play, with no drivers required, and works seamlessly across multiple platforms. The durable aluminum alloy casing ensures long-lasting use and efficient heat dissipation. LED indicators provide clear status updates for active computer connections.
Perfect for professionals who require maximum productivity and multitasking capabilities, this dual HDMI KVM switch offers rich functionality and convenient, efficient switching, making it an ideal choice for multi-system setups.
Features
- Dual HDMI KVM switch allows 2 computers to share 2 displays and 4 USB ports
- Supports dual monitors in extended or mirrored modes
- HDMI 2.0 compliant, support video resolution up to 4K@60Hz
- Integrated 4-port USB hub toggled with the display simultaneously
- Two SuperSpeed USB 3.0 ports support up to 5Gbps data transfer rate
- Two USB 2.0 ports for connecting a mouse and keyboard
- Easy to use by pressing the toggle button on the KVM switch or remote control
- USB port for keyboard supports Hotkey function to switch computer
- 3.5mm audio output port for connecting speakers or headphones
- Plug and play, no driver required with multi-platform compatibility
- Durable aluminium alloy casing, also efficiently dissipate heat
- Powered by USB, no additional power adapter required
- LED lights indicating status of each computer

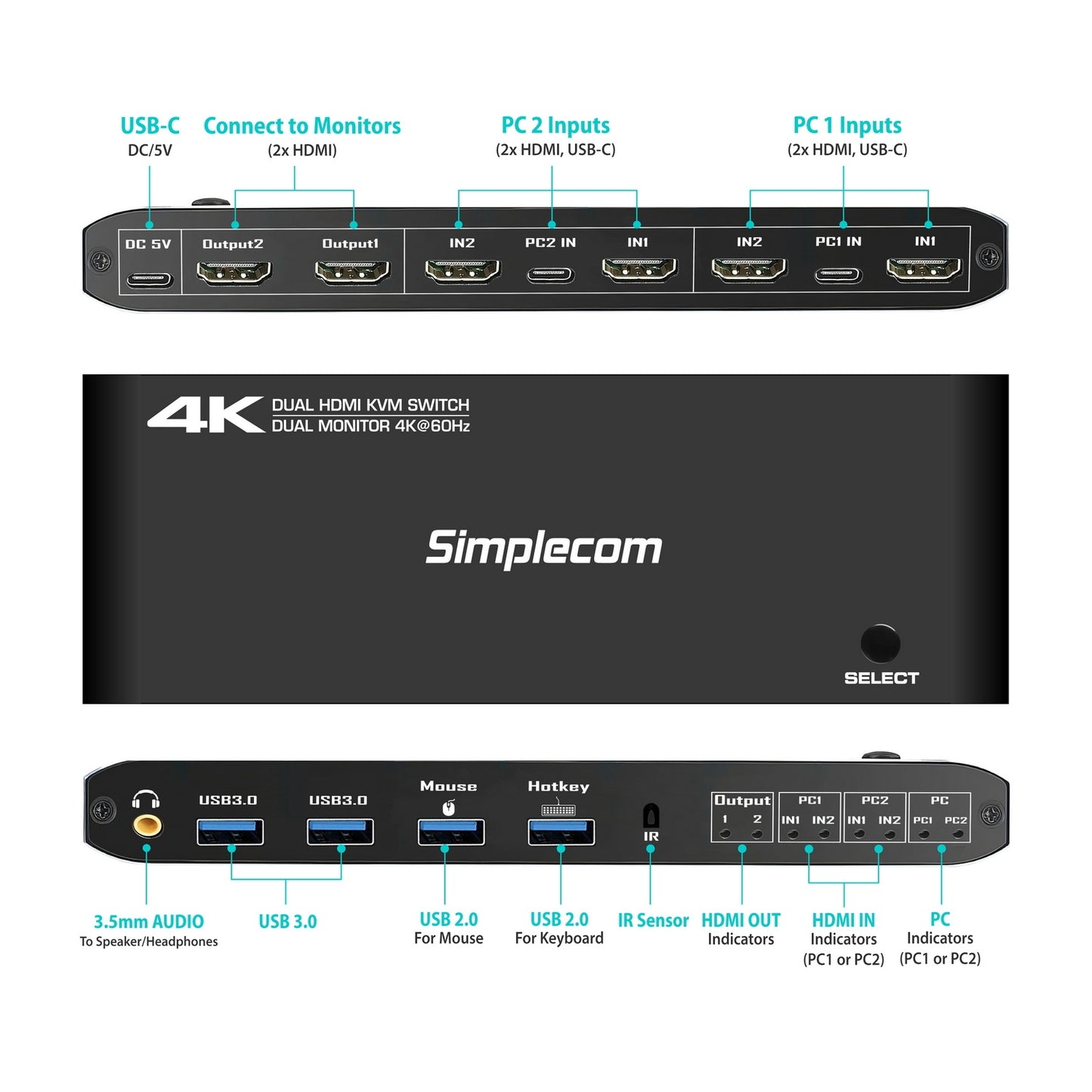

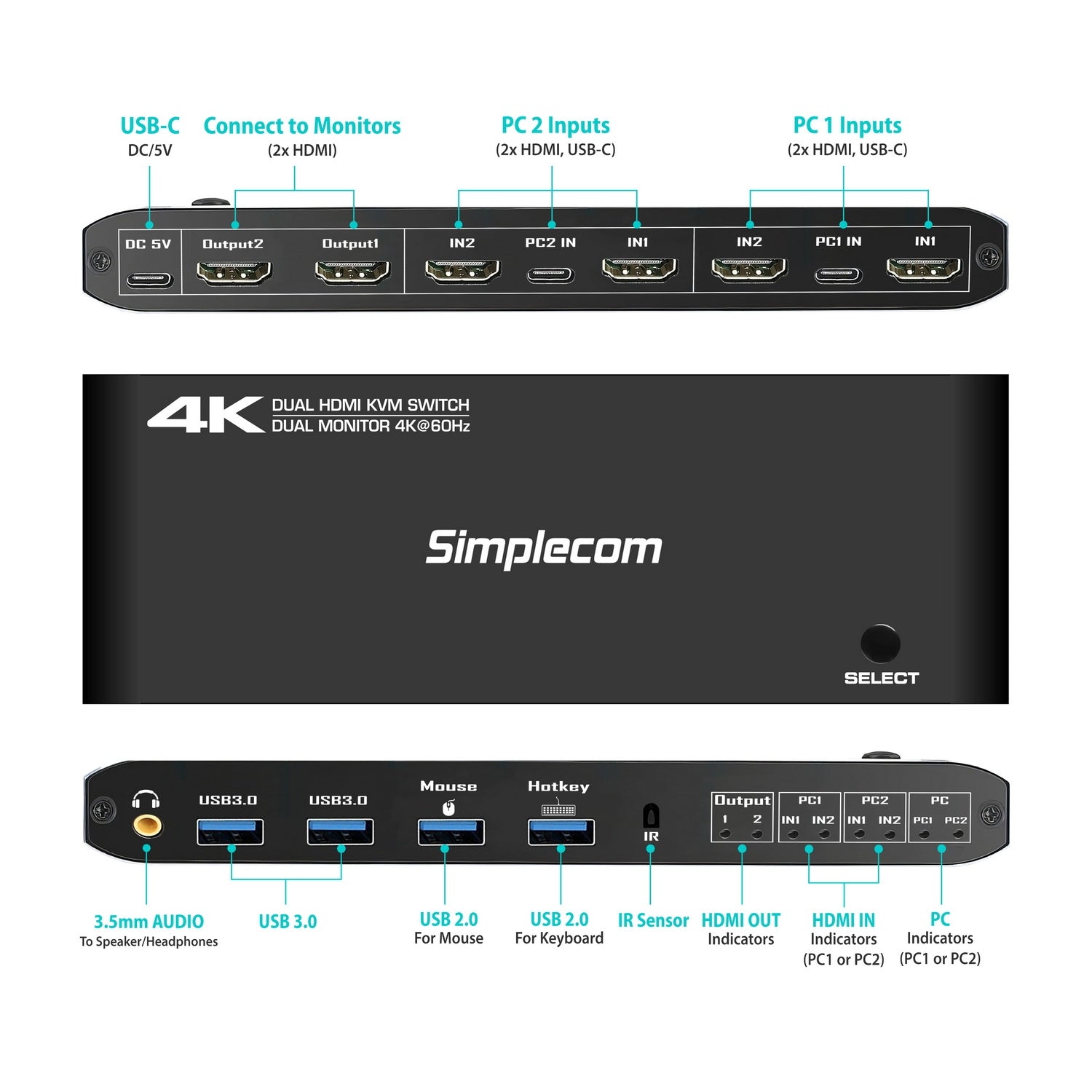

Specifications
- Model: KM430
- USB Upstream Ports: USB-C x2 (Connect to PC1 and PC2)
- USB Downstream Ports: USB 3.0 x 2, USB 2.0 x2 (Keyboard and Mouse)
- Monitor Input: HDMI 2.0 x4 (Connect to PC1 and PC2)
- Monitor Output: HDMI 2.0 x2 (connect to two displays)
- Power Input: USB-C, DC 5V (backup power only, not required)
- Audio Output: 3.5mm audio jack (extracted from HDMI Output1 port)
- USB Max Bandwidth: 2xUSB 3.0 up to 5Gbps, 2xUSB 2.0 up to 480Mbps
- Video Max Bandwidth: up to 18Gbps
- Max Video Resolution: 4K@60Hz (3840x2160), 2K@120Hz (2560x1440), 1080p@144Hz (1920x1080)
- Max Cable Length for Input/Output: ≤5m
- Operating Temperature Range: -5C to 45C
- Operating Humidity Range: 5 to 90%RH (no Condensation)
- Dimension (L x W x H): 17.5 x 5.7 x 2.1cm
- Weight: 170g
- Operating System Support: Windows, macOS, Linux, Chrome OS
Package Contents
- 1x Dual HDMI KVM Switch
- 2x USB-C to USB-A 5Gbps Data Cables
- 1x USB-C to USB-A Power Cable

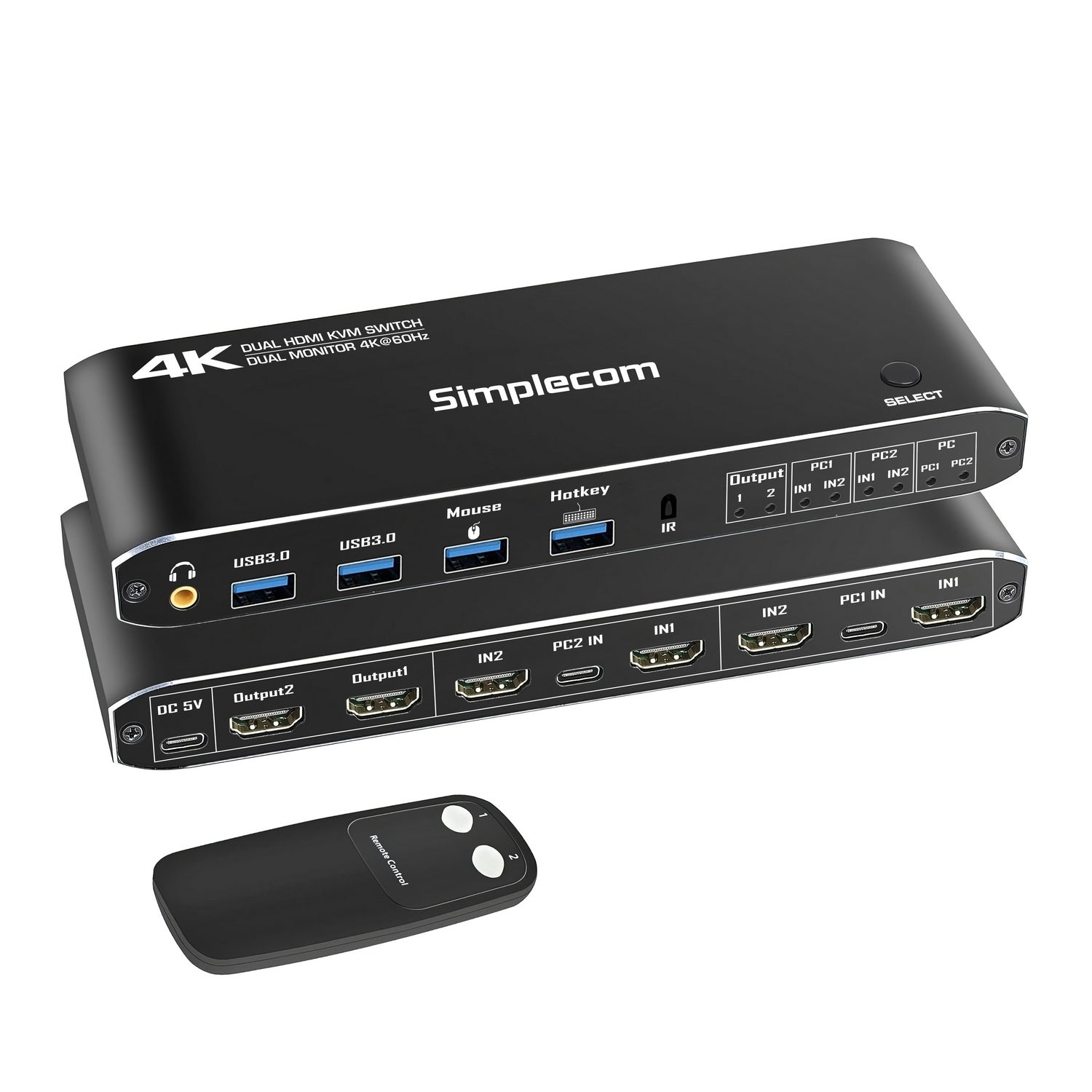

- 1x Remote Control
Important Note
- Powered via USB (connects PC and Switch with USB data cable), no extra power adapter needed. The DC 5V port is for backup power only, in case the PC's USB port cannot provide sufficient power.
- For stable performance, use High-Speed HDMI cables supporting 18Gbps bandwidth.
- This dual HDMI KVM switch also works in single monitor mode.
- It is recommended to adjust to the same resolution and refresh rate on both computers for smooth switching.
