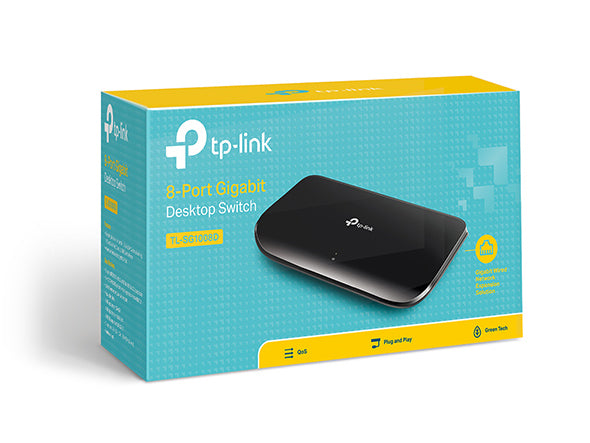

TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch Desktop Wall-Mounting Plastic Case Fanless Supports MAC address 802.1p/DSCP QoS

TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch Desktop Wall-Mounting Plastic Case Fanless Supports MAC address 802.1p/DSCP QoS 8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX Green Ethernet technology saves the power up to 80% IEEE 802.3x flow control provides reliable data transfer Plastic case, desktop or wall-mounting design Plug and play, no configuration required HARDWARE FEATURES Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Fan Quantity Fanless Physical Security Lock No External Power Supply External Power Adapter (Output: 9VDC/0.6A) Jumbo Frame 15 KB Switching Capacity 16 Gbps Dimensions ( W x D x H ) 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) Max Power Consumption 4.63W(220V/50Hz) Max Heat Dissipation 15.80BTU/h SOFTWARE FEATURES Transfer Method Store and Forward MAC Address Table 4K Advanced Functions Green Technology 802.3X Flow Control Back Pressure 802.1p/DSCP QoS (for V7 and later version) OTHERS Certification FCC, CE, RoHs Package Contents 8-Port Gigabit Desktop Switch TL-SG1008D Power Adapter Installation Guide System Requirements Environment Operating Temperature: 0 degrees C~40 degrees C (32 degrees F~104 degrees F) Storage Temperature: -40 degrees C~70 degrees C (-40 degrees F~158 degrees F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Warranty Limited 3-Year Warranty For further information on our warranty policy please visit
