WAVLINK AC1200 Outdoor WiFi Dual Band Long Range Aerial HD4 Extender WiFi Router

ATTENTION:

1. Ensure that you use a certified CAT5e/CAT6 Ethernet cable with RJ45 connectors.
2. Make sure the length of the Ethernet cable from POE to the device is less than 60 meters(196 ft).
Installation note 1 Select the wireless network with a signal strength greater than 70% to get the most reliable connection.

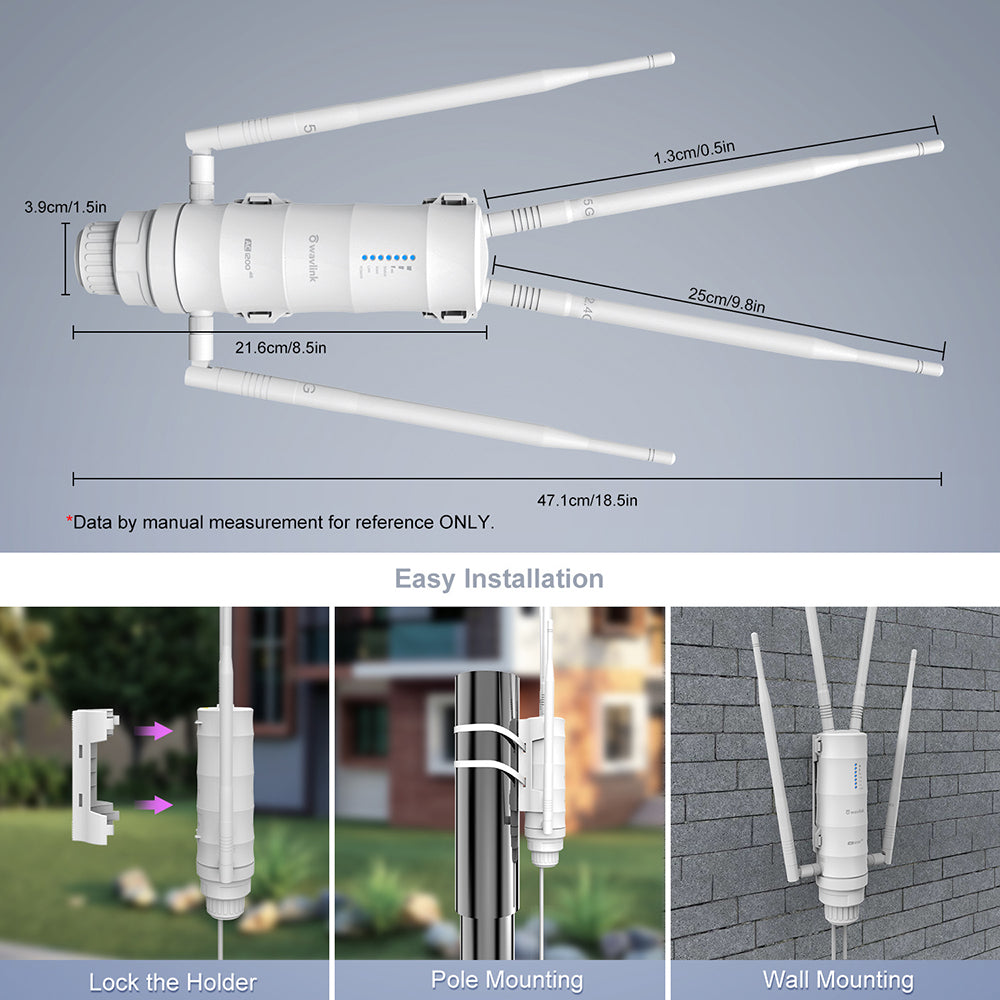

Installation note 2 The outdoor antennas should be installed at a height of 2 meters above the roof or
in a high open place for better reception.
Features:

WiFi Range Extender Signal Booster for Home, Yard, Backyard, Garage and Swimming Pool ,ect AC1200 Outdoor WiFi Extender - Complies with IEEE 802 11 ac/a/b/g/n standards. Dual-Band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps. With a brand-new chip MT7621A and Easy Mesh supported, it lets you keep more devices(64~96) connected simultaneously with the dual bands and enables Wavlink mesh router /AP/repeater to work together, which is superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

Multiple Operation Modes Power Over Ethernet - WN572HP3 supports Mesh Extender Mode, Access Point (AP) Mode, Router Mode and Repeater Mode. Integrated Power over Ethernet (PoE) supported, allowing it to be installed in areas where power outlet is not available by combing your power and network data connection into a single RJ-45 cable. Dual Gigabit 1000Mbps WAN/LAN Ethernet ports, support 10/100/1000Mbps speeds, 10x faster than a standard Ethernet port, giving you an excellent network speed experience.
Weatherproof Outdoor WiFi Extender - IP65-rated weatherproof heat-resistant case that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture, withstanding broad ranges of humidity and temperature (-30 degree C~70 degree C) (-22 degree F~158 degree F); 15KV ESD, 4KV Security protection, ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.
4 x 7dBi Detachable Omni Directional Antennas - Meet outdoor long range coverage wireless network requirement, cover hard-to-reach dead zones. High Power Amplifiers PA 800mW and enhanced receiver design for more strong penetration longer range coverage than the general access point, ideal for providing Wi-Fi service in big area such as factory, community, street or etc.

Specifications:

Frequency Standard: Dual Band (2.4GHz 5GHz), IEEE 802.11b/g/n/a/ac

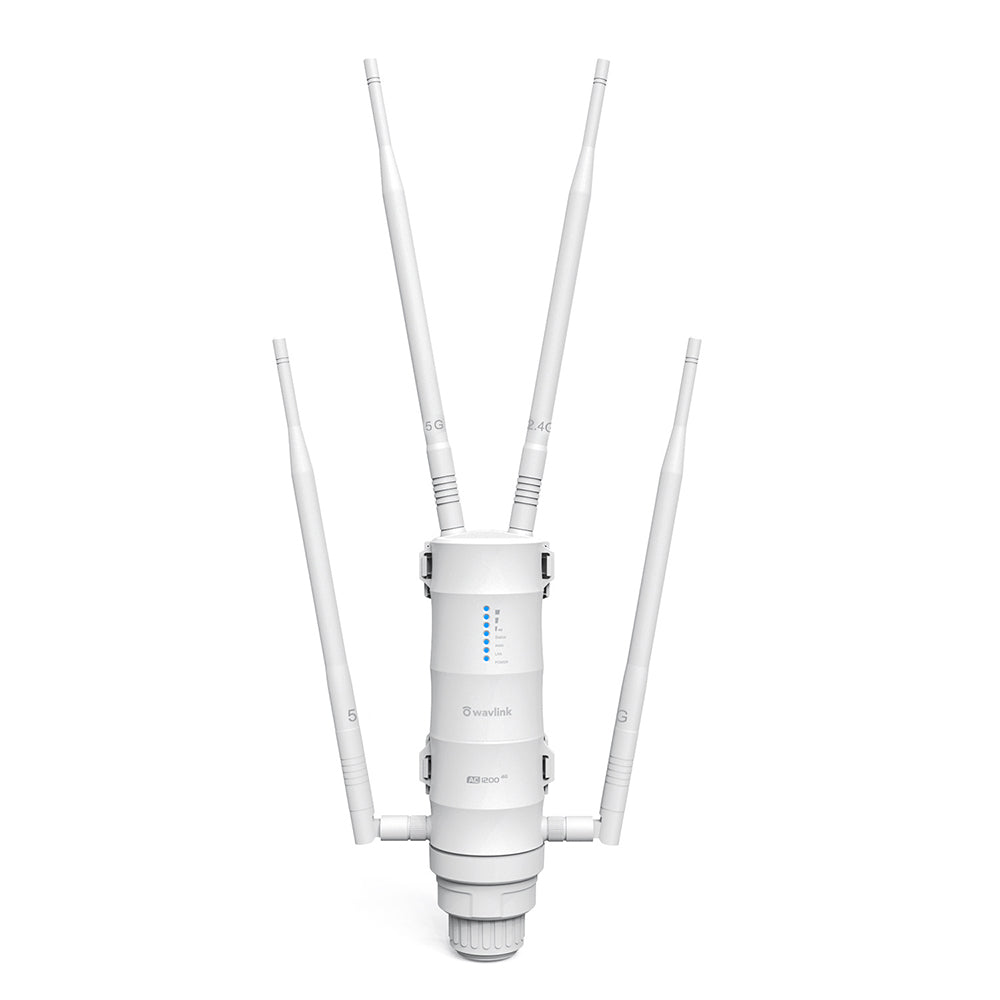

Antennas: 4 x 7dBi Detachable Omni Directional Antennas

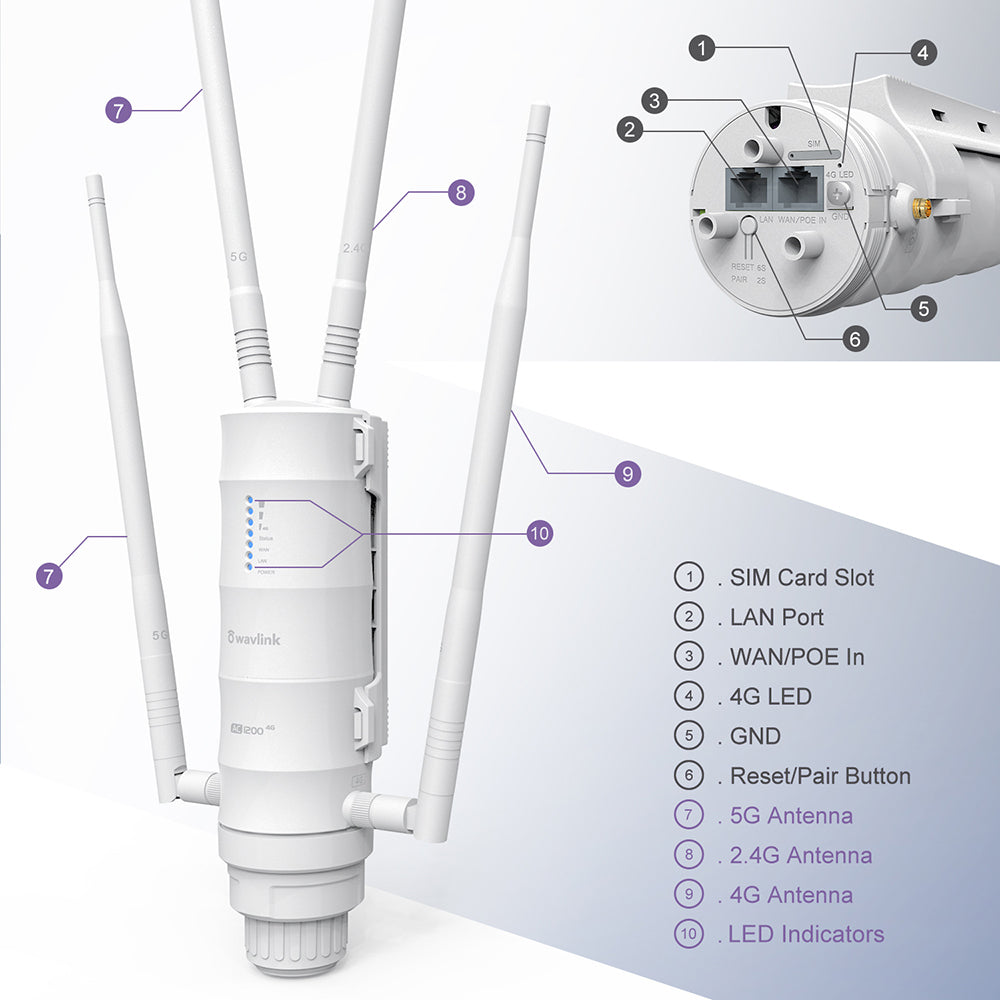

Interfaces: 1 x 1000Mbps LAN,1 x 1000Mbps WAN , 1 x Reset button

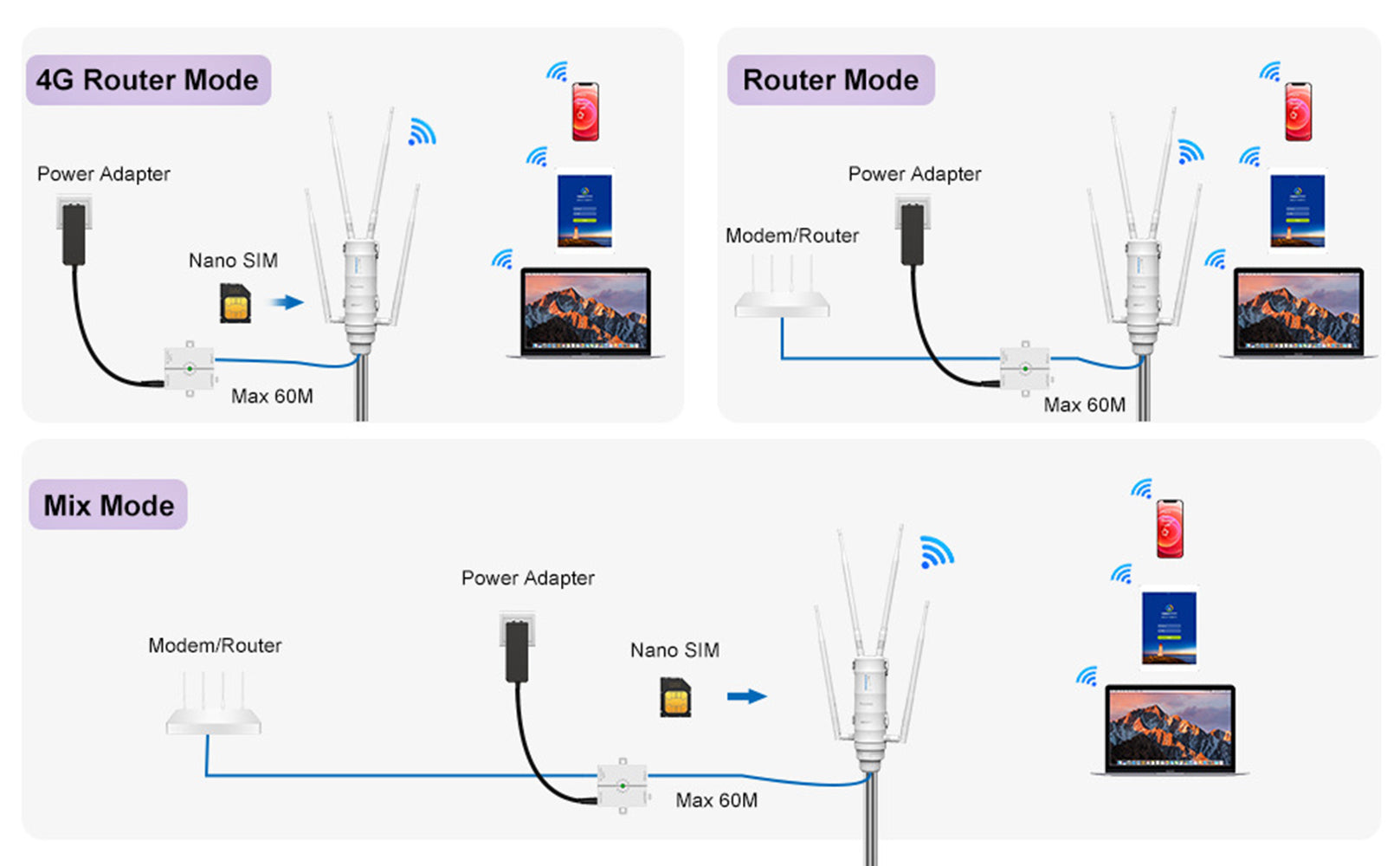

Operation modes: Repeater mode, Router mode, Access Point mode, Mesh Extender mode
Chipset: Brand-new chip MT7621A
Security: WPA-PSK/ WPA2-PSK encryption
Power adapter Input:100-240Va.c. 50/60Hz ; DC24V / 0.5A Power over Ethernet ( Passive PoE)
Distance: Outdoors 500m, Indoor 150m (According to the actual environment change)
Function: Time Setting, DDNS, Static Router, DHCP Server, Wireless Setting

Package Content:

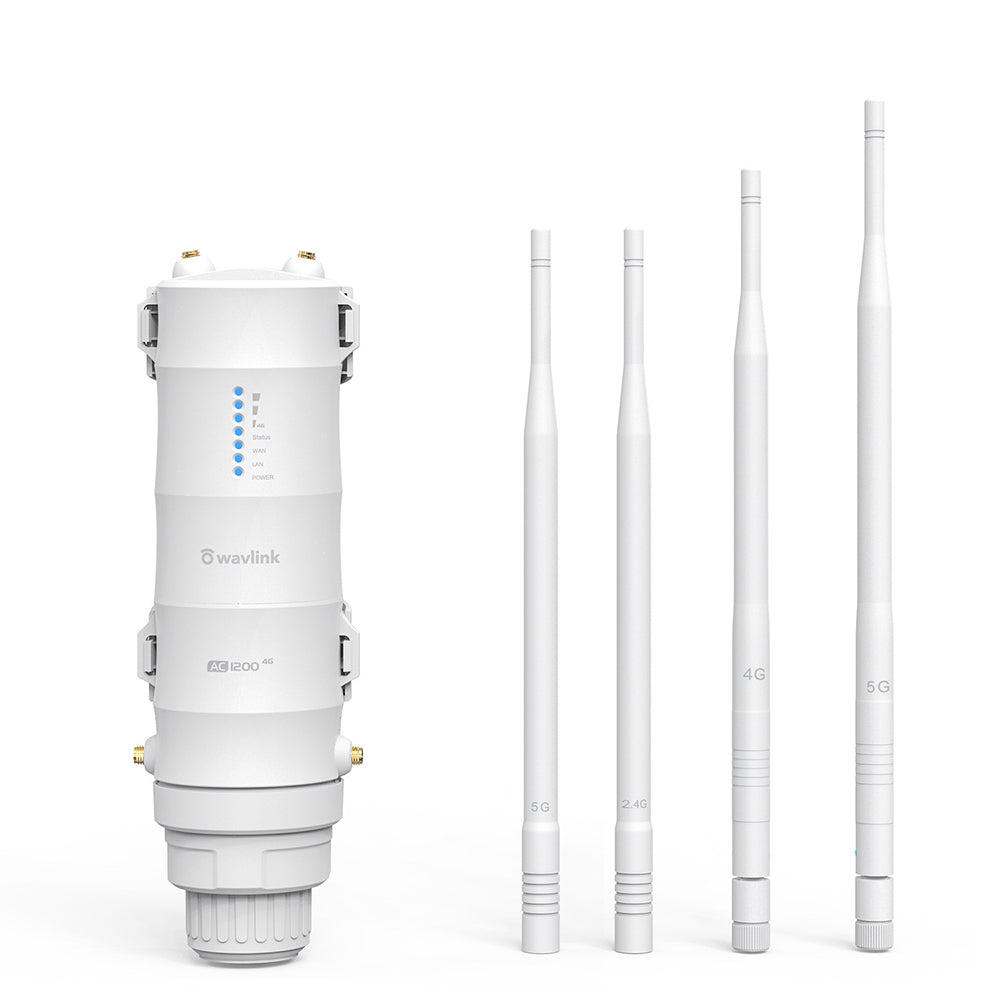

1x Outdoor WIFI
2x 2.4 G Omni Antennas
2x 5G Omni Antennas
1x RJ 45 Networking Cable
1x Power Cable
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide

Refund note: Only return the product cost, not refund the freight!!!
