SPECIFICATIONS:
FOR YOU IS SUPER:
The X-BULL 20000lbs is one of our new X-BULL high-efficiency winches for all off-road and life-loving customers. This winch is equipped with an IP68 waterproof rating, capable of withstanding water, dust and dirt even in the most extreme off-road conditions. It is equipped with a 7.0hp/5.2kw pure copper motor, which can easily handle weights up to 20,000 pounds. The motor of the winch operates in series with a three-stage planetary gear system, providing an accurate transmission ratio of 354:1, specifically designed to handle demanding tasks. It offers both wired and wireless operation options, allowing for more flexible control of this winch. This winch fits a variety of off-road vehicles and offers an effective solution for diverse recovery situations.
X-BULL is to always strive to provide customers with quality items, excellent service, and constantly listen to the views and needs of customers, to become your life partner.
FEATURES:

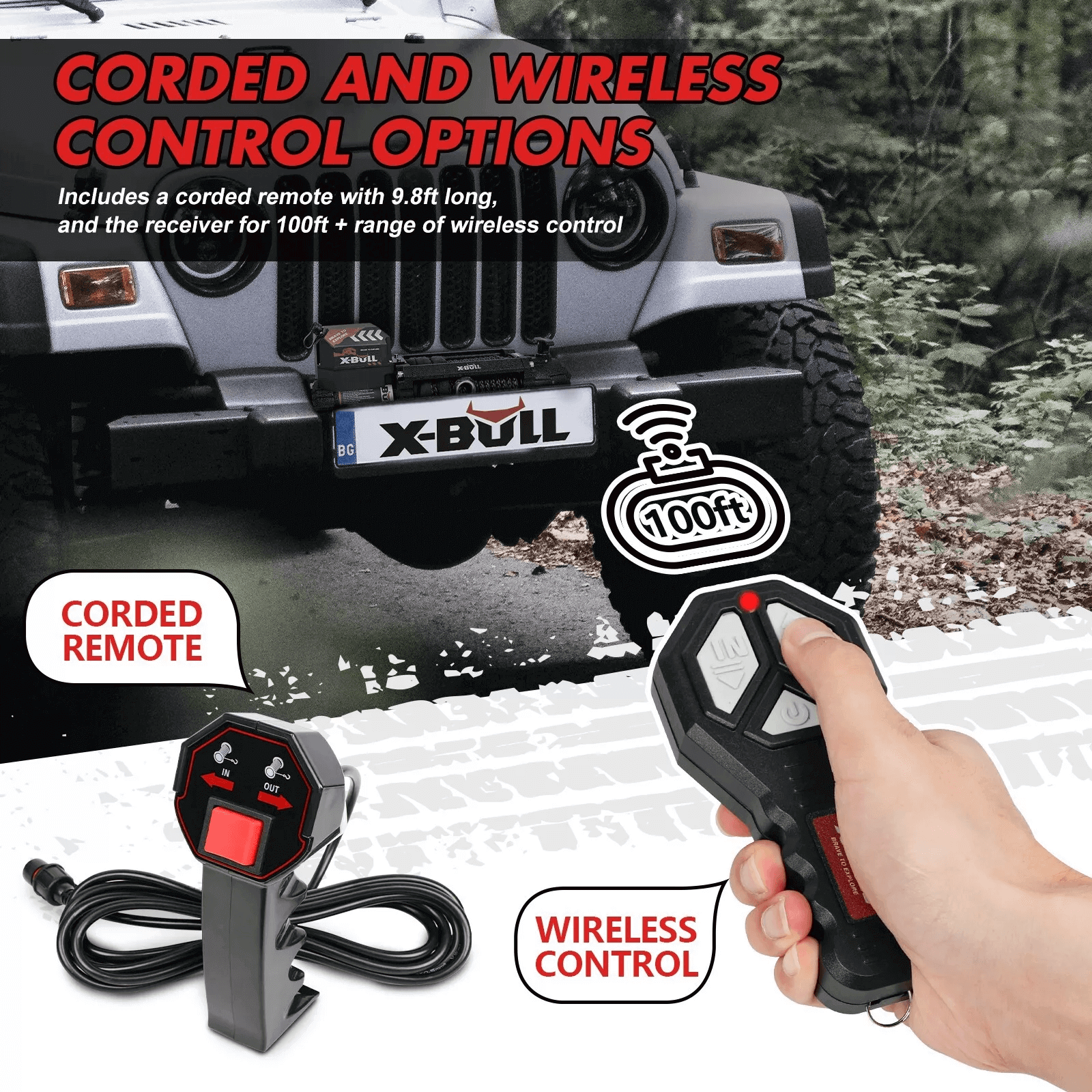

1. Multi position control box
Integrated control box, works underwater, contact material agcdoensures high current conduction provides protection on current, voltage and temperature.
2. Motor
7.0hp/5.2kw pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.
3. 3-Stage Planetary
The real three sets of 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio,which can achieve coaxial deceleration (growth).
4. Clutch
The clutch can be rotated every 15 degrees and can be rotated 180 degrees. In order for our custom ers to find the right angle for their
installation.
5. IP68 Waterproof
Entire winch unit is rated IP68 waterproof, the highest level of protection, featuring OEM-grade Q-ring rubber gaskets. This new sealing delivers a longer service life and meets the most stringent IP68 submersion testing.

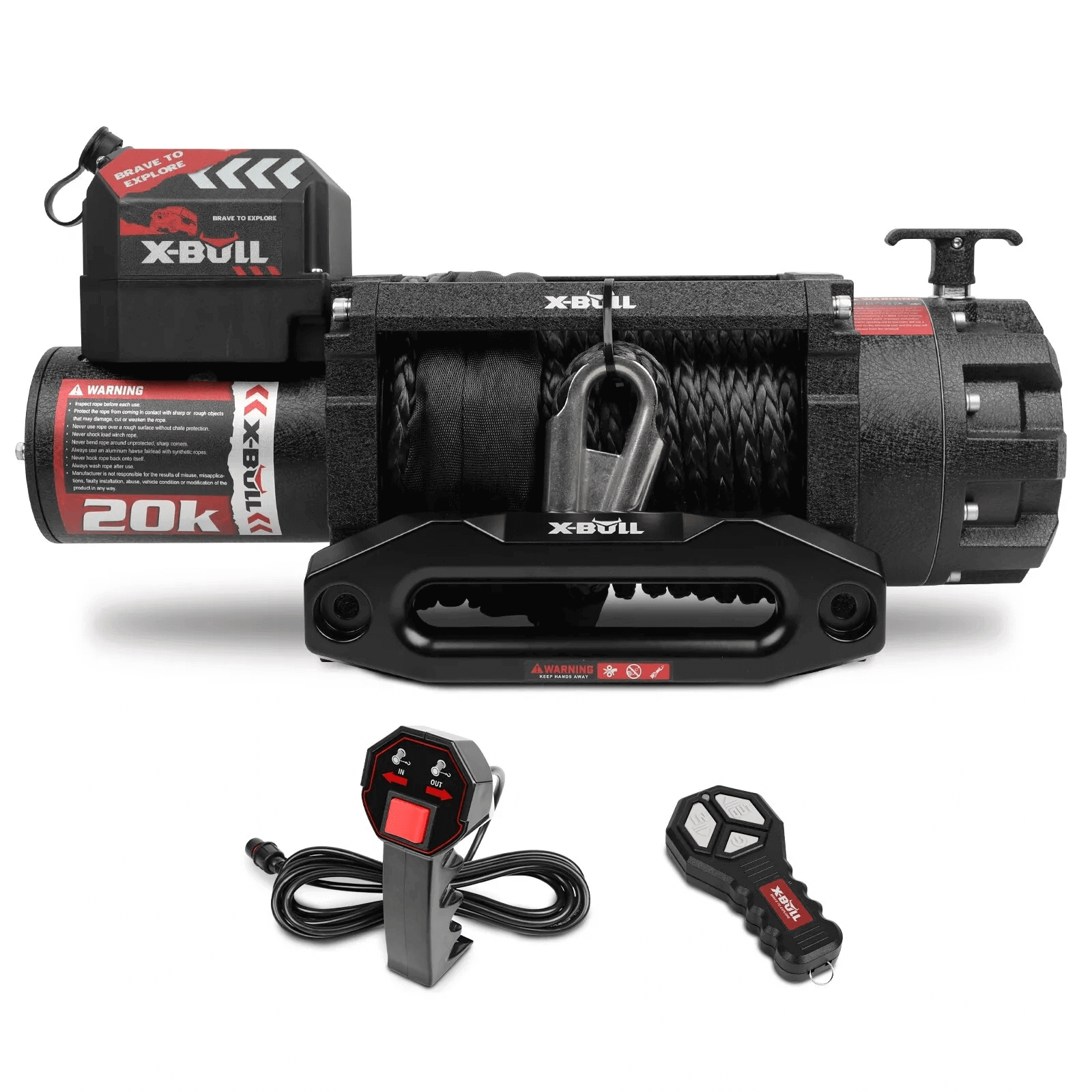

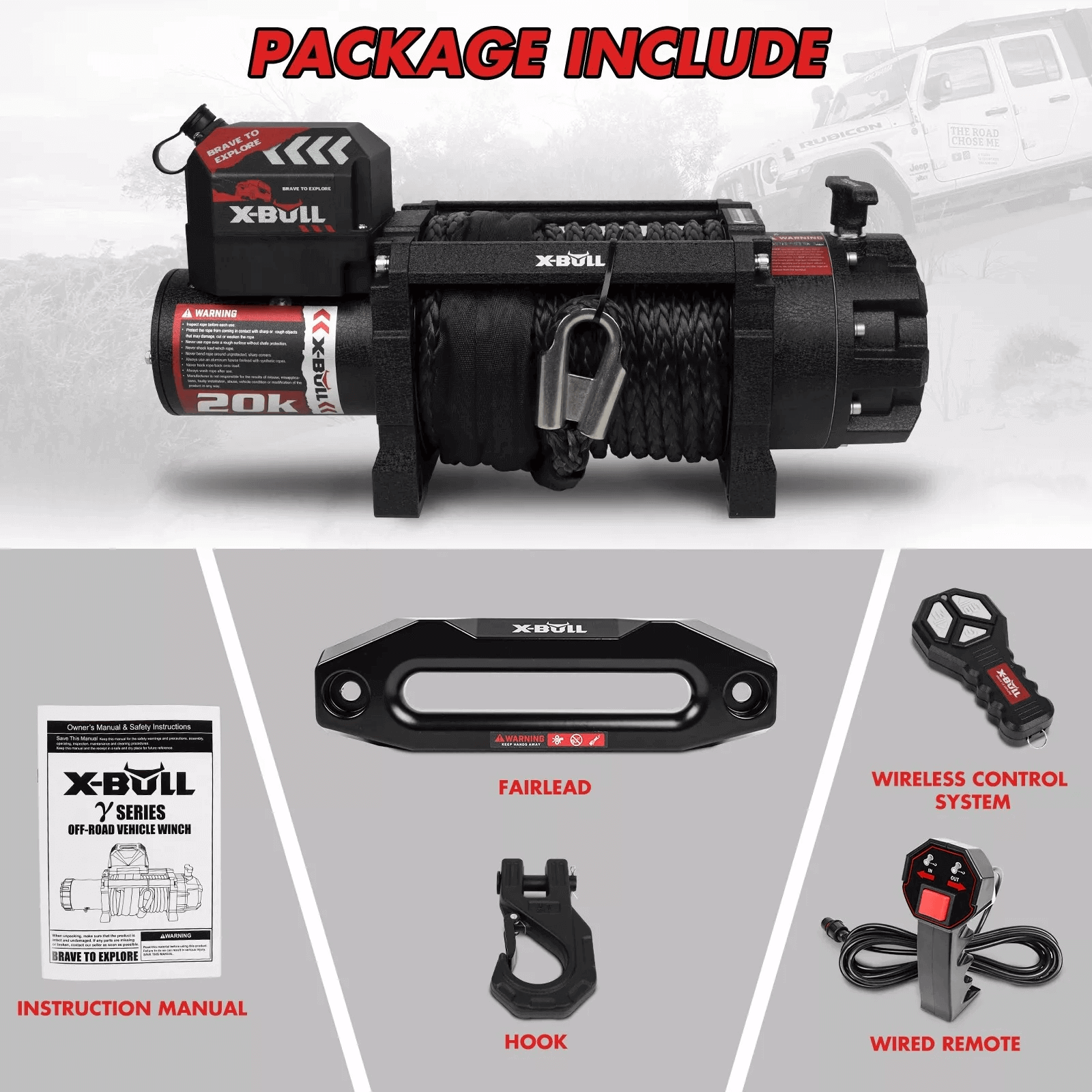

IN THE BOX:
1* 20000LBS Winch
1* Wireless Remote Control
1* Hand Switch
1* Fairlead
1* Hook
1* Control Box
1* Set of Bolts
1* User Manual

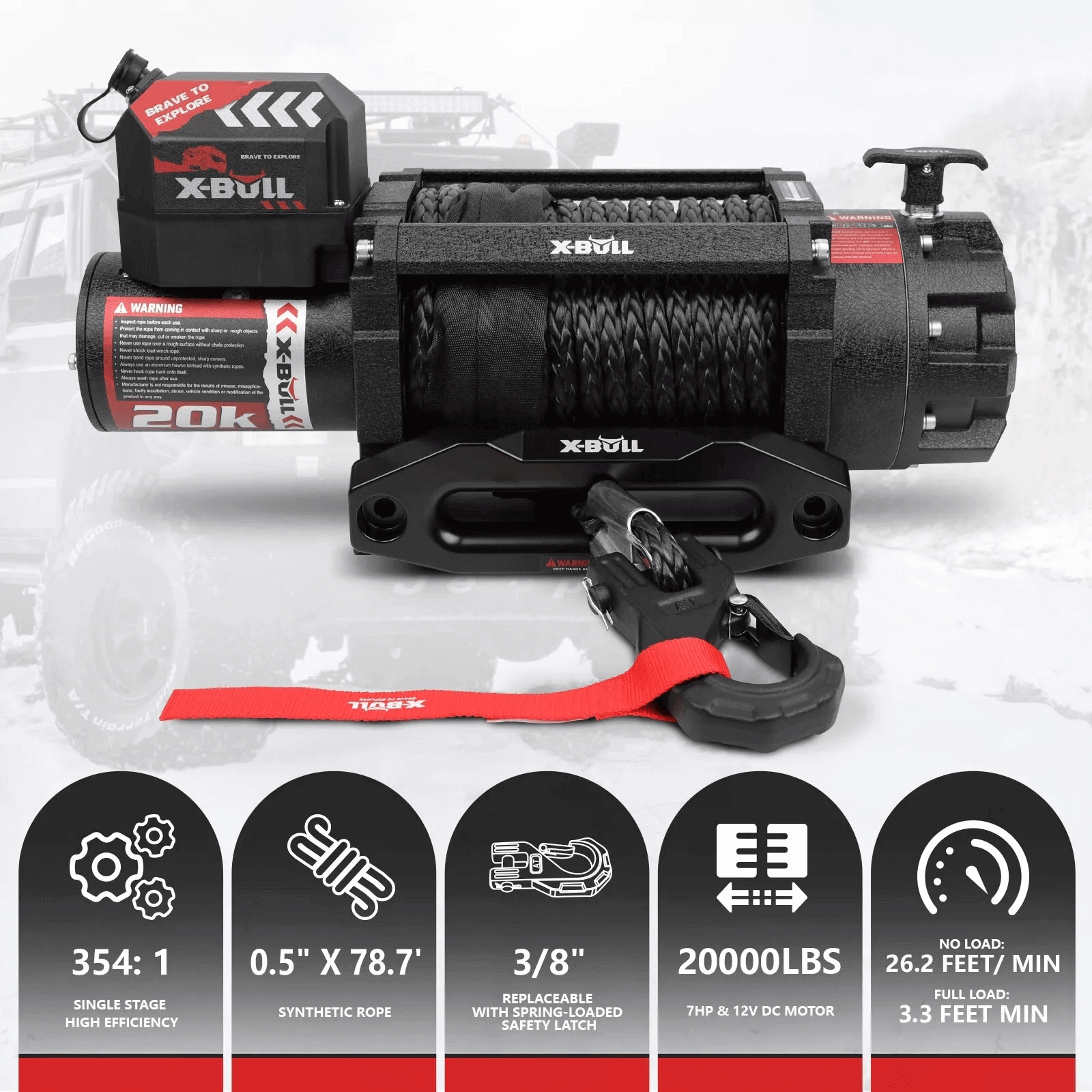

SPECIFICIATION:
Gear Ratio: 354:1
Waterproof: IP68
Manufacturer Warranty: 1 Year
Motor: 7HP12V
Battery Cables: 1.8M
Material: Stainless Steel
Weight: 37.5kg
