FEATURES:
1. MOTOR
Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.
2. WINCH SOLENOID RELAY
Small or mismatched relays can cause a burning phenomenon. So we need to use a suitable relay for different winches, not necessarily an overload protector if your winch has a perfect relay. The X-BULL 500A relay is truly insulable, durable and stable, avoiding winch damage due to insufficient relay power.
3. THREE-STAGE PLANETARY
The real 3-Stage Planetary enables differential, deceleration(growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration(growth).
4. All-STEEL SHELL
The all-steel shell can protect the winch well, and the black frosted spray paint will not rust.
Diamond-shaped design is more conductive to the heat dissipation of the gearbox to ensure the long operation of the winch.
When great becomes legend?

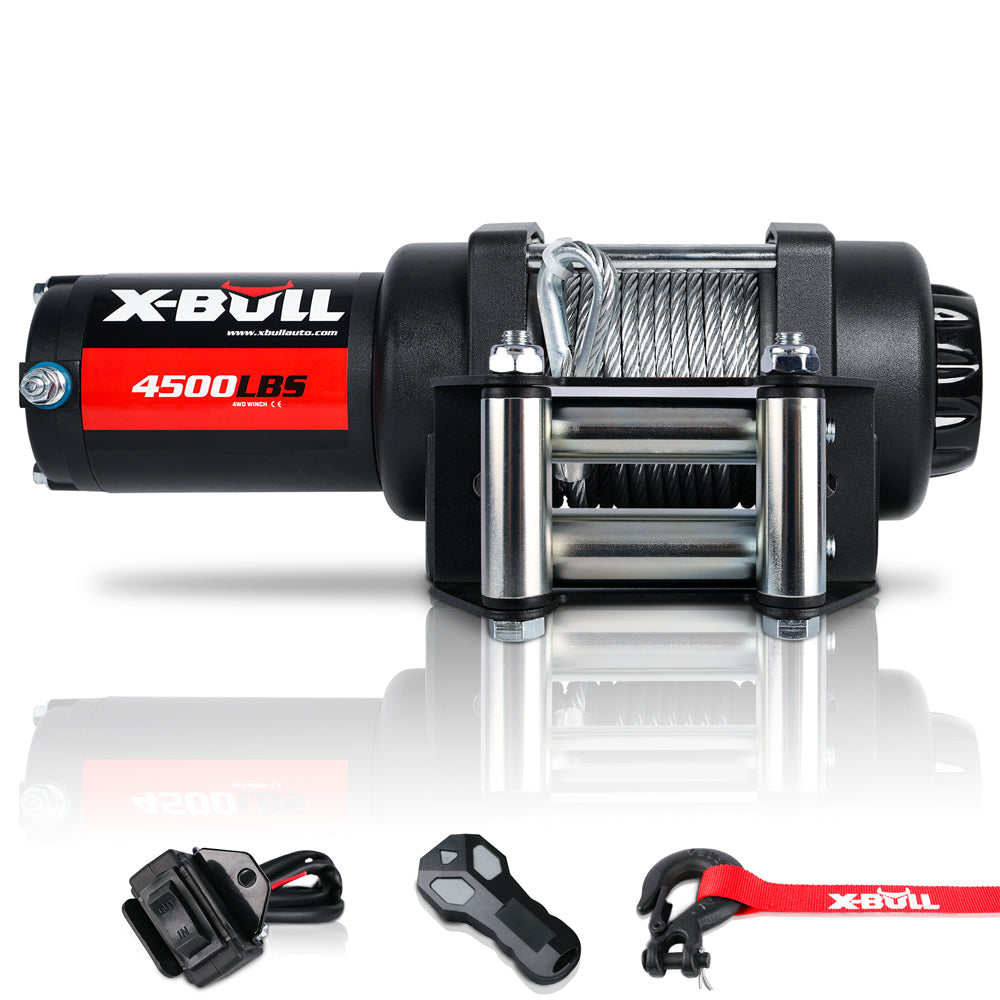

The Steel series by X-BULL Winch brings innovation and a radical new design to the successful 4500lb platform. Decades of winch design experience have been utillsed to produce one of the finest winches on the market.
Under the skin we've kept the same features known and loved by our customers;super smooth three stage planetary gears,2-ways free spool clutch,new style wireless plus wired big-grip remote and a host of accessories.
SPECIFICATION:
Brand: X-BULL
Rated line pull: 4500lbs(2041KG) single line
Motor: 12V DC 1.9HP Permanent Magnet
Gear redustion ratio: 198:1
Cable length: 5.5MM*15.2M
Control: wire/wireless control
Braking action: mechanical brake
Fairlead: heavy duty falrlead roller
Gear train: 3 stage planetary
Voltage:12V
Weight: 9.8kg
Dimensions:338mm*108mm*114mm
Colour: red and black

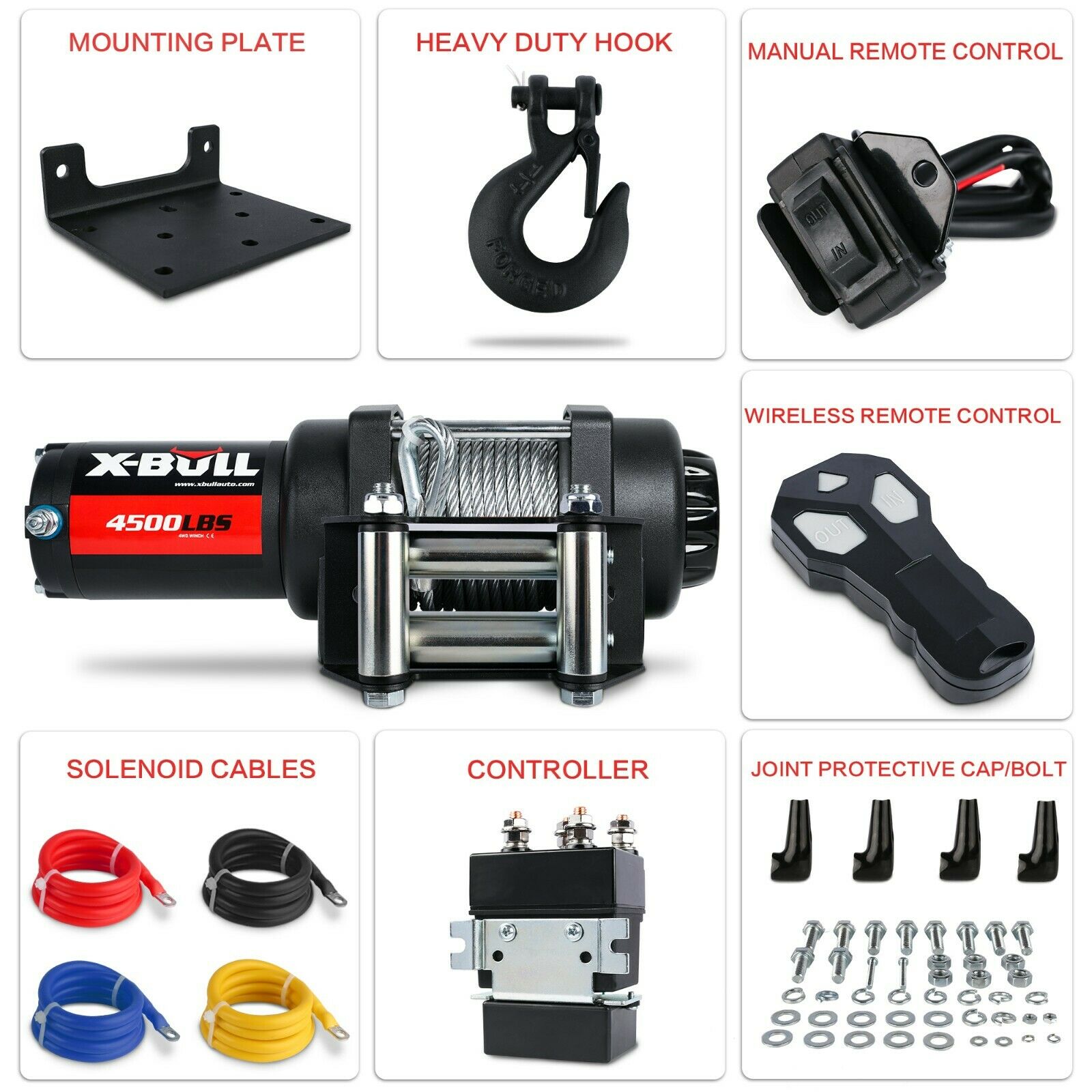

IN THE BOX:
1*4500LB winch
1*4-Way roller fairlead
4*joint Protective cap
1*hand held remote control
1*new style wireless remote control
1*winch lanyards
1* winch solenoid
4*solenoid cables
1*set of stainless fitting bolts
1*user manual
1*mounting plate
