Technical parameters

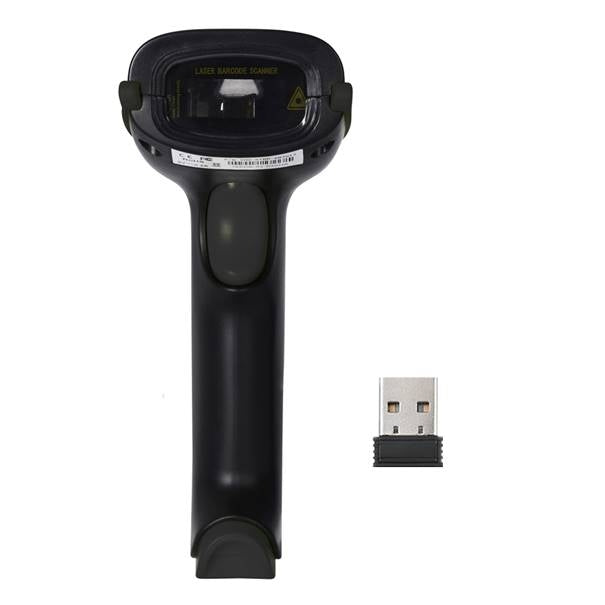

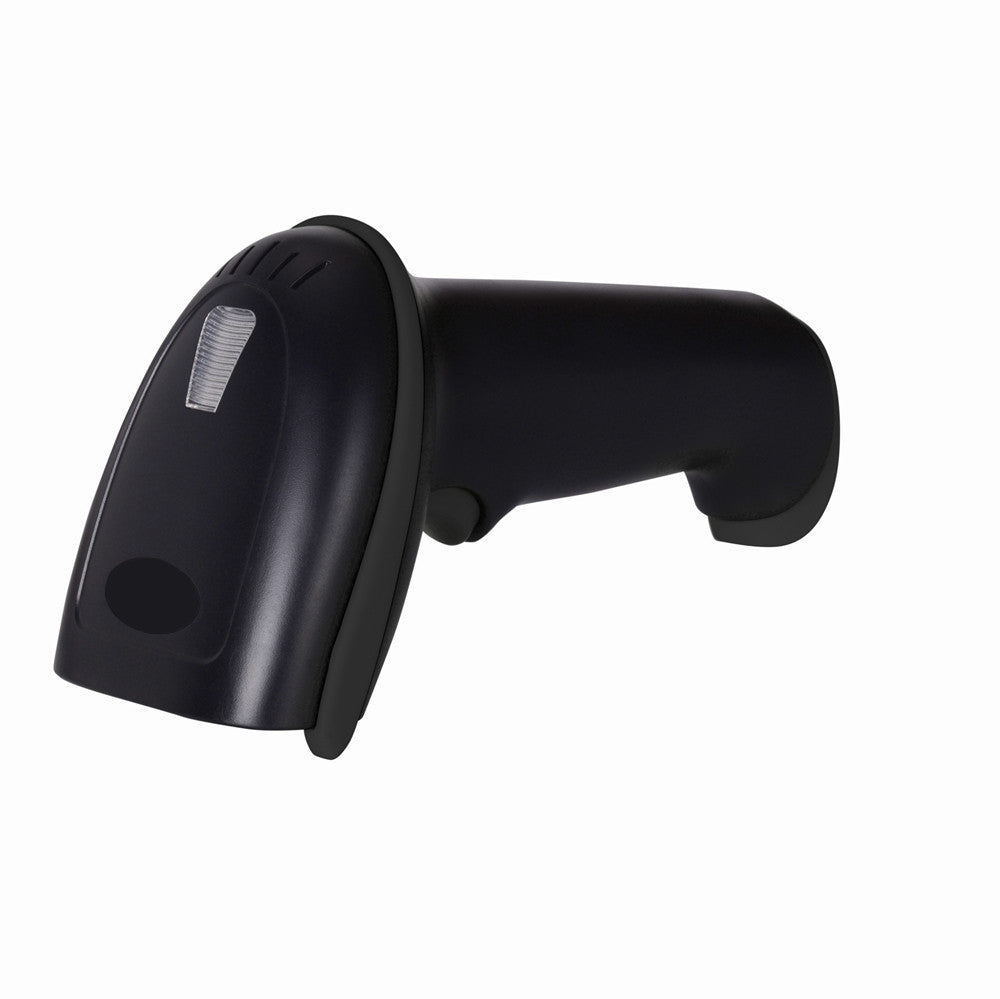

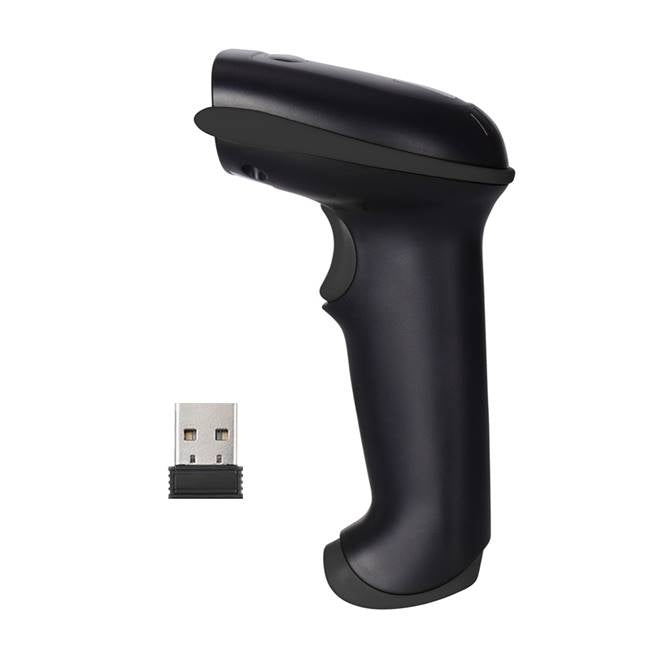

| ProductSpecification: YHD-5700DB 2D Wireless Bluetooth Barcode Scanner | ||
| Scanner parameters: | ||
| Transmission mode: Bluetooth/2.4G/Wired | Storage: 100,000 barcodes | |
| Distance: 50m/100m/1.5m | Sensor: 640 480 CMOS | |
| CPU: ARM 32-bit Cortex | Battery: 3.7V-2600mAh | |
| Indication: Buzzer LED | Light aimer:617nm LED | |
| Resolution: 4mil | Anti-inference: 0-100000Lux Max | |
| Decoding speed: 500scans/sec | Illumination:6500K LEDs | |
| Printing Contract: ≥25% | Interface: USB, USB-COM | |
| Button life: 8000,000 times | Material: ABS+PC | |
| Trigger Mode: Handheld,Continuous,Auto-Induction | ||
| Depth Of Field | 13mil-EAN13 | 50-250mm |
| 4mil-code39 | 60-100mm | |
| 20mil-QR | 40-300mm | |
| 10mil-PDF417 | 40-280mm | |
| Decode Capability: 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Coda bar, MSI Plessey, RSS, etc. 2D: QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc. | ||
| Scanning angle: Angle of rotation360, inclination± 65, declination ± 60 | ||
| Working current: 3.3Vx200mA | Standby current: 18uA-5mA | |
| Workingtime: 7to 10days | Charging power: 5V-400mA | |
| Certificate: CE, FCC, RoHS, IP54 | Drop test: 2m |
| Brand | Others |
| Category | Audio & Video > Speakers > Radios |
| SKU | V28-ELEINTYHD5700DB |
| Weight | 0.5 kg |
