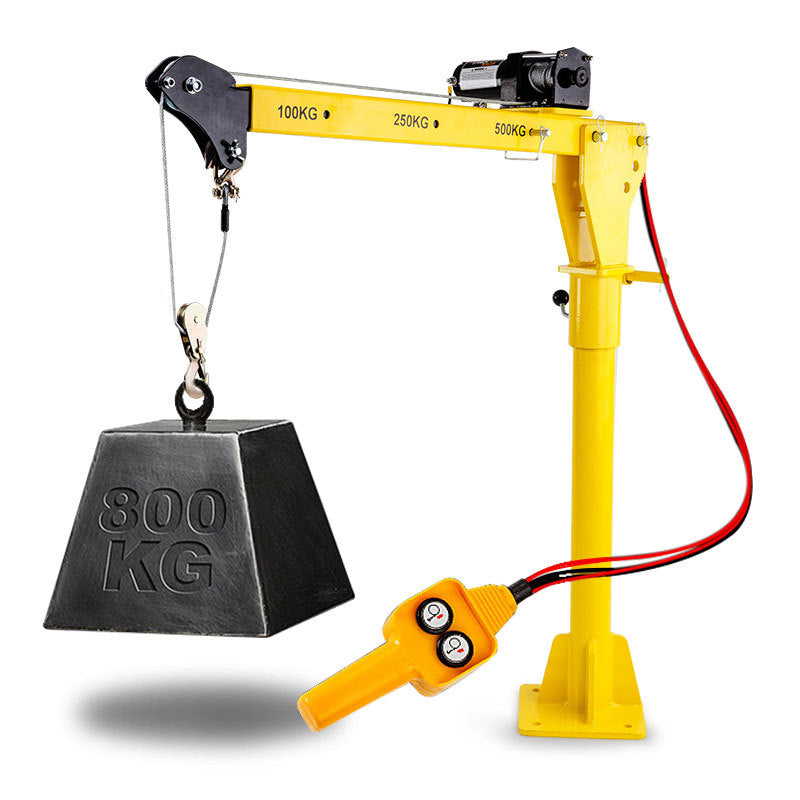

The T-Rex XL360 Series II Telescopic Electric Hoist is a fully featured, low maintenance and ultra-durable hoist made from high quality carbon steel, with a hard wearing powder-coated finish. It's equipped with a T-REX GORILLATM winch gearset, making it capable for safe loading, unloading and heavy load handling up to 500kg single rope / 800kg double rope. There's also an inbuilt overload protection function that disables the machine in the event it's being used to lift something heavier than its maximum capacity.
Perfect for engine lifting and other auto service applications, this machine is designed for single-handed operation thanks to its 10' dual control, allowing the operator to guide the load with their free hand. The T-Rex telescopic electric hoist is the ideal accessory for mounting on trucks, utes, trailers, pontoons and most other similar structures. It has an extra-high 2 m lift making it suitable for a wide range of jobs. It can also be mounted on commercial vehicles and used for loading/unloading freight. Featuring a 3 tier boom and 3 secure telescopic settings, lifting a sizable load becomes extremely convenient and safe.
This unit is easy to install and features a compact fold-design. It features a 360 continuous manual rotation to load/unload in any direction. Moreover, it conveniently operates on a 12V battery power source. This is a truly versatile hoist that enables precise placement of loads without placing undue stress on your body - especially in confined areas.
So don't concern yourself with the strain and fatigue related to heavy lifting. Make your work life a whole lot easier by ordering your NEW T-Rex XL360 Series II Telescopic Electric Hoist today!
Specification
- Manufacturer: T-REX
- Model: XL360 Series II
- Power Input: 12V DC 125 Amps
- Lifting Capacity (max): 500kg single-rope / 800kg double-rope
- Overload Protection: Disables Operation with 30 Second Re-start
- Lifting Height (base to hook): 2 m
- Reach (max): 1.44m
- Rotation (continuous) w/ Brake: 360 manual
- Lifting cable: 4.8mm x 4.5m (single-rope), 4.8mm x 5.5m (double-rope)
- Line Speed w/ No Load: 3.6m/min (single-rope)
- Switch Cable Length: 6.6 m
- *Requires high tensile bolts to fasten the engine hoist (not supplied)
IN THE BOX
- 1 x T-Rex Telescopic Engine Hoist
- 1 x Remote
- 1 x User Manual

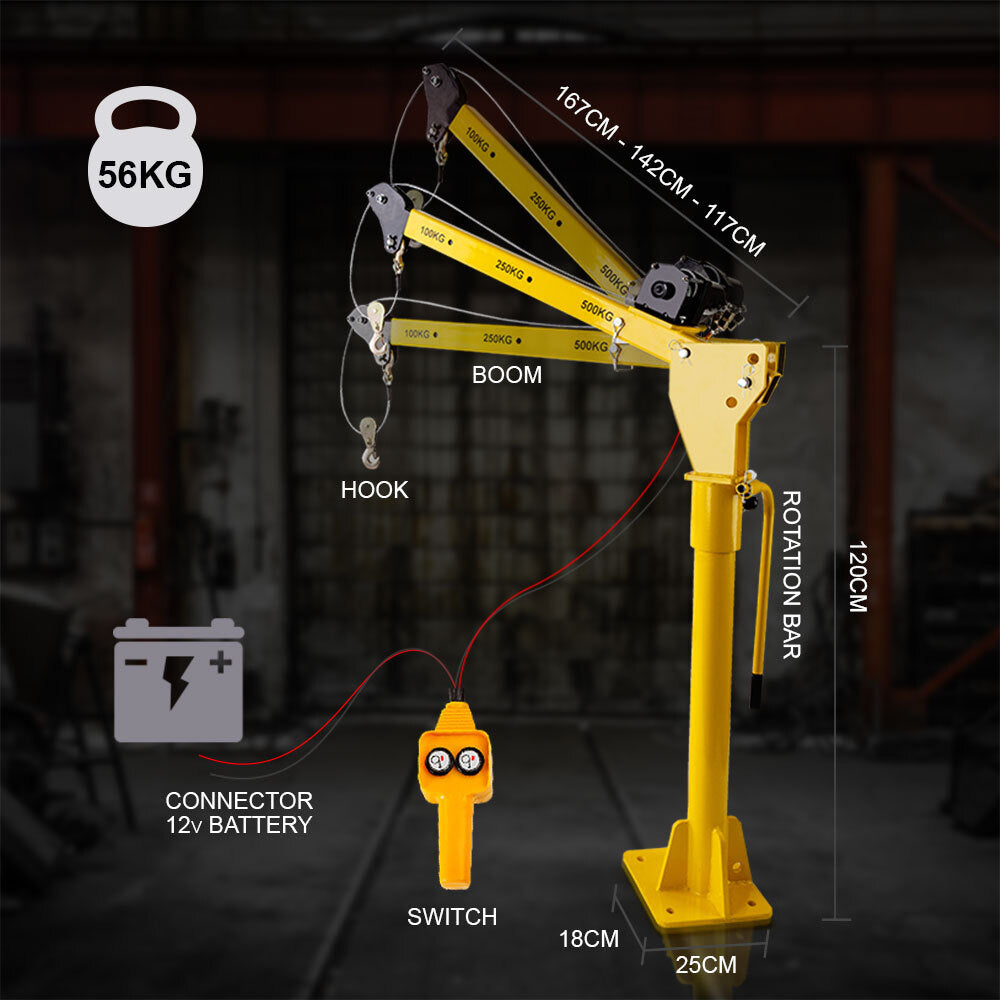

SIZE WEIGHT
- Carton Weight: 64 kg
- Carton Dimensions (W x L x H): 30 x 127 x 33 cm
- Product Weight: 56.3 kg
- Product Dimensions (W x L x H): 25.2 x 167 x 120 cm
SKU: LFTHSTTRXB0XL
